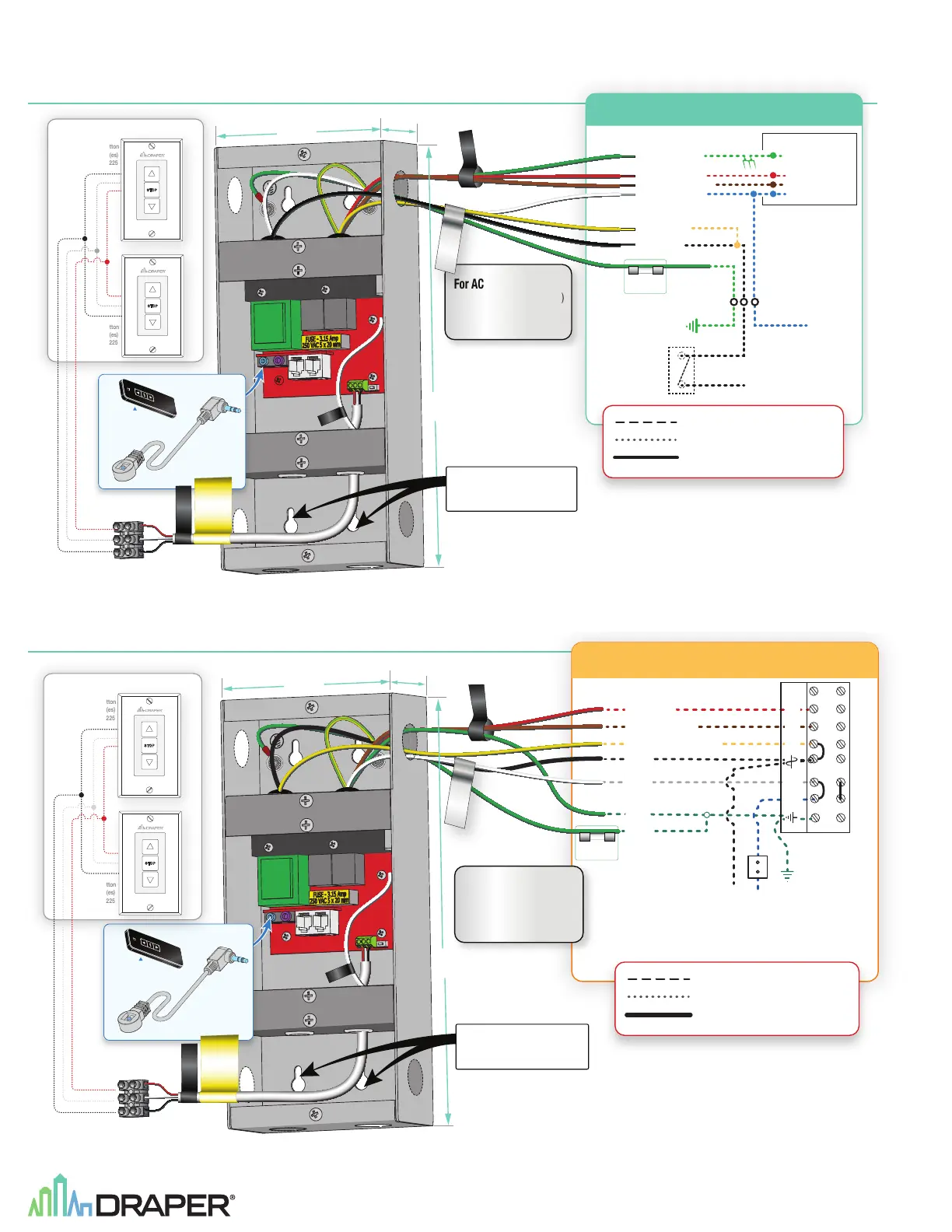

Section 6 - Wiring LVC-IV to Screen Motor
Section 7 - Wiring LVC-IV to Aerolift
For AC supply wires:
Attach appropriate ½" (13mm)
Trade Size connector to route
wiring through knockouts.
Low-Voltage Wiring by others
Factory Wiring
DASHED WIRING BY ELECTRICIAN
GREEN/YELLOW (Ground)
RED - to screen (directional)
BROWN - to screen (directional)
WHITE - Common to screen
& AC Neutral
YELLOW - to AC-Hot
BLACK - to AC-Hot
GND
N
ON/OFF
KEY SWITCH
GREEN/YELLOW (Ground)
RED - (UP)
BROWN - (DOWN)
BLUE - (Common)
INTERNAL SCREEN WIRING
to AC Power (L1)
Wiring LVC-IV to Screen Motor - 220-240V
2.214"
(56mm)
4.5"
(114mm)
10.39"
(264mm)
Four (4) keyhole slots for
provided for mounting.
External LVC-IV
(Low-Voltage Control Module)
Part #: 121222
IR Eye
Input
IR Eye
IR Transmitter
Part#: 121227
Transmitter range: 26’ (7.9M)
LVC-S: 3 Button
Wall Switch(es)
Part #: 121225
LVC-S: 3 Button
Wall Switch(es)
Part #: 121225
SWITCH B
SWITCH A
Dry Contact Closure to Low-Voltage Wall Switch(es)
MOTOR LEADS
WALL SWITCH
AC POWER INPUT
WARNING
DRY CONTACT
CLOSURE ONLY.
APPLYING VOLTAGE
HERE WILL DAMAGE
CONTROLLER.
RF Antenna
Wire
Extra Fuse
(3.15 Amp)
Low-Voltage Wiring by others
Factory Wiring
DASHED WIRING BY ELECTRICIAN
For AC supply wires:
Attach appropriate ½" (13mm)
Trade Size connector to route
wiring through knockouts.
Wiring LVC-IV to AeroLift
- 220-240V
RED to LIFT (UP)
BROWN to LIFT (DOWN)
YELLOW to LIFT Terminal 4 (Hot)
BLACK
to LIFT Terminal 5 (Hot)
WHITE
Neutral to LIFT Terminal 6 (Neutral)
GREEN/YELLOW
(Ground)
GREEN
(Ground)
To 220 - 240V
AC Line
Key Operated On-Off
switch (if furnished).
1 2 3
4 5
6
7
8
AeroLift Terminal Block
L1 N GND
UP DN
COM
N N
2.214"
(56mm)
4.5"
(114mm)
10.39"
(264mm)
Four (4) keyhole slots for
provided for mounting.
External LVC-IV
(Low-Voltage Control Module)
Part #: 121222
IR Eye
Input
IR Eye
IR Transmitter
Part#: 121227
Transmitter range: 26’ (7.9M)
LVC-S: 3 Button
Wall Switch(es)
Part #: 121225
LVC-S: 3 Button
Wall Switch(es)
Part #: 121225
SWITCH B
SWITCH A
Dry Contact Closure to Low-Voltage Wall Switch(es)
MOTOR LEADS
WALL SWITCH
AC POWER INPUT
WARNING
DRY CONTACT
CLOSURE ONLY.
APPLYING VOLTAGE
HERE WILL DAMAGE
CONTROLLER.
RF Antenna
Wire
Extra Fuse
(3.15 Amp)
220-240V LVC-IV Low-Voltage Control Module
page 4 of 4
