9. Maintenance and Troubleshooting
– 16 –

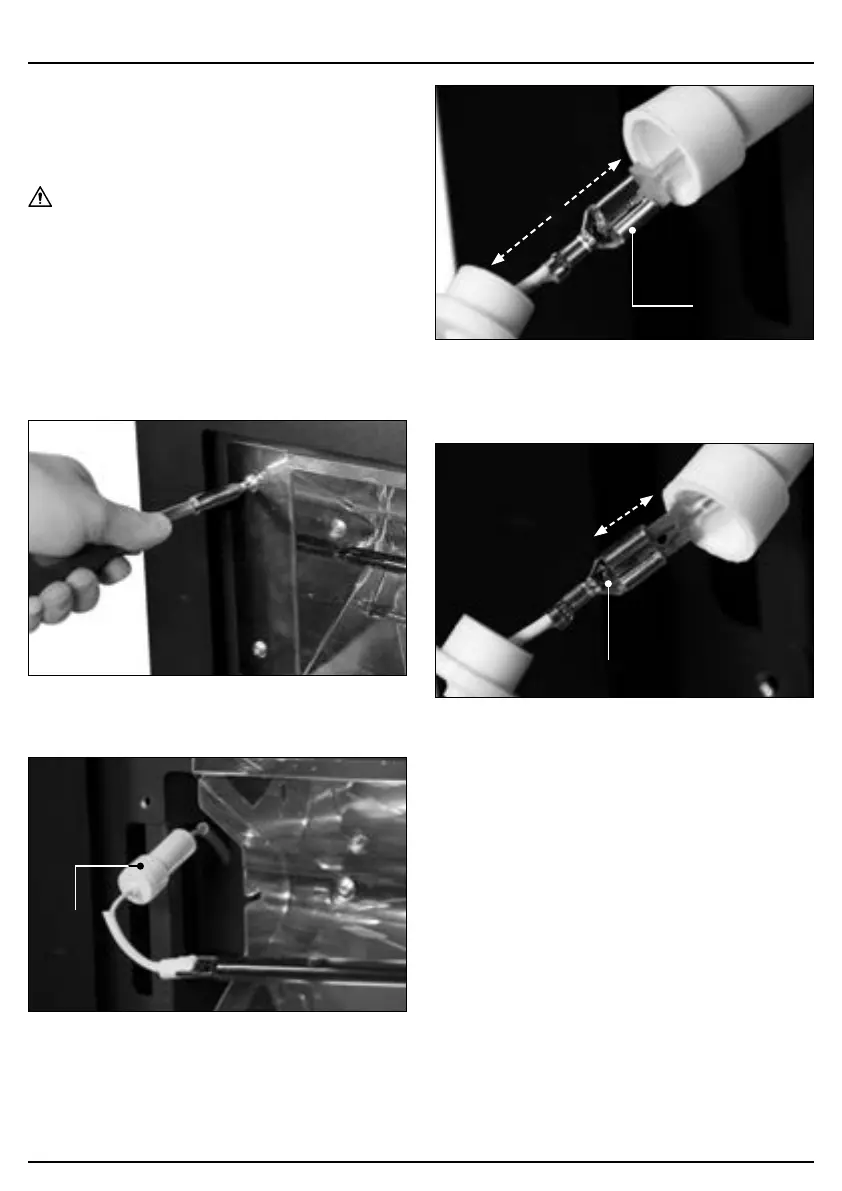

9.4 Replacing the Heating Elements
Important: This product is not supplied with
replacement elements. Contact Draper Tools to discuss
replacement options.
WARNING!
ALWAYS ensure that the heater is
disconnected from the power supply and has cooled
thoroughly before attempting to access and maintain
the heating elements.
CAUTION! DO NOT touch the glass of the heating
elements with your bare skin, even when cold, as this
may damage the element when it is heated. Handle the
element using ONLY the caps and cables at either end.
1. Remove the reguard (see 9.2 Removing and
Replacing the Fireguard).
12 Fig.
2. Unscrew and carefully remove the reectors (4) at
either side of the element to be changed (Fig.12).
13 Fig.
(20)
3. Gently ease the element out of the reector slots and
slide the connection insulators (20) from their sockets
and towards you (Fig.13).
14 Fig.
(21)
4. Open the insulators and move both parts away from
each other to expose the spade connector (21)
(Fig.14).
15 Fig.
(22)
5. Locate the connector locking tab (22) and press it
rmly while gently pulling the connectors apart.
Complete these steps for both ends of the element.
6. Remove the element and connect a new element in its
place.
7. Push the parts of the connection insulators back
together and position the complete insulators
centrally along the cable.
8. Carefully push the insulators back into their sockets
in the heater frame and slide the tapered ends of the
element into the slots of the reector.
9. Slide the reectors back into place around the
element ends and screw them into place.
10. Reinstall the reguard (see 9.2 Removing and
Replacing the Fireguard).
