INSTALLING FANS
• FEED FAN PROBE LEADS THROUGH GROMMETS AND SILCONE AROUND ALL WIRES
GOING THROUGH GROMETS WIRES.
o WE RECOMMEND USING A FISH TAPE TO PULL THE FAN PROBE LEADS INTO THE
ELECTRICAL BOXES
o CONNECT THE WIRES TO THE CORRECT LOCATION STATED ON THE WIRING
DIAGRAM.

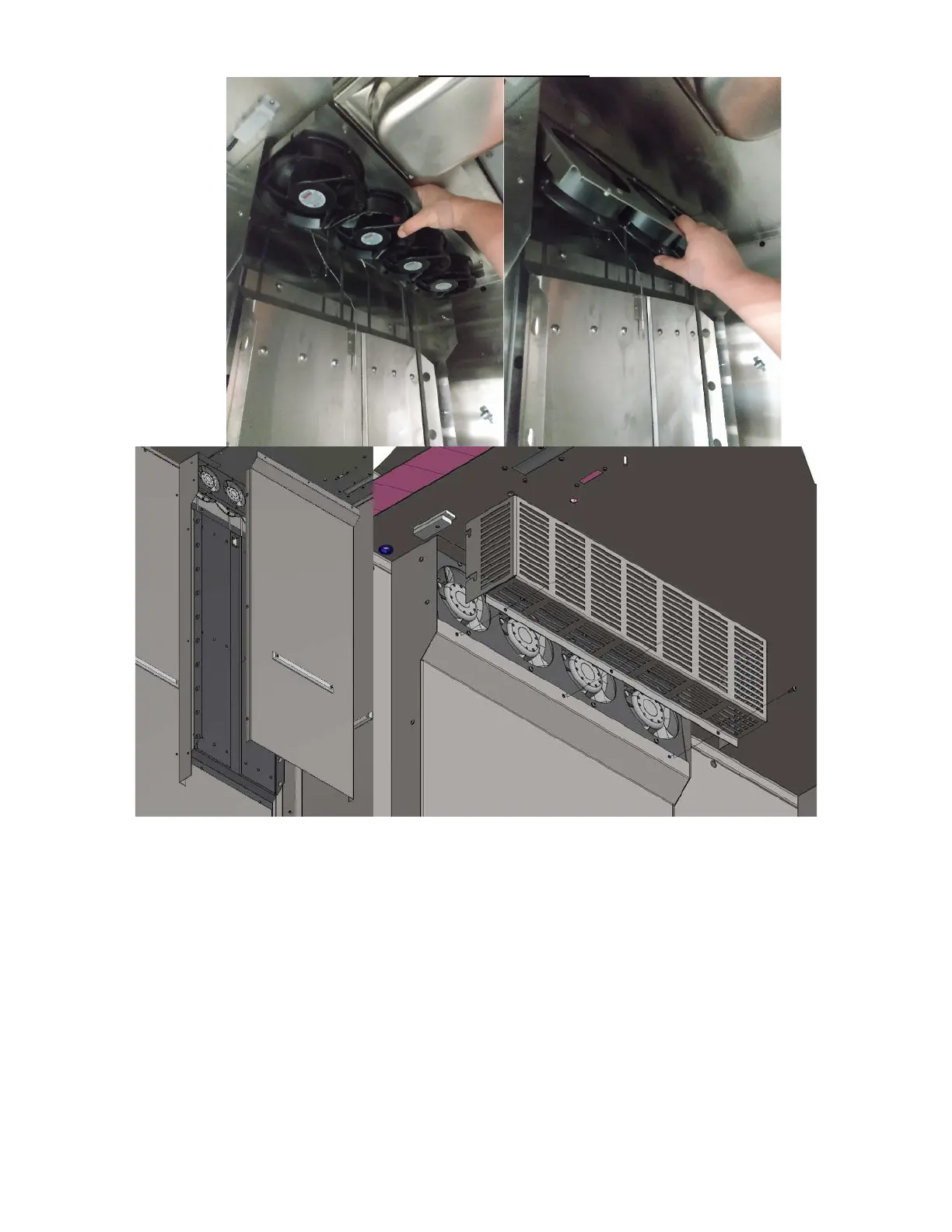

• INSTALL FAN ASSEMBLIES (50039145) ONTO ELEMENT MOUNT ASSEMBLIES AS SHOWN
o FAN ASSEMBLY NEEDS TO GO IN HORIZONTALY UNTIL THE SLOTS DROP ON TO
THE FIRST SET OF PINS
o LOWER FAN ASSMBLY
• INSTALL INTAKE COVERS (KDP_0136) USING (3) 8-32 MACHINE SCREWS (53-0050) PER
HEATER ASSEMBLY
• HANG DUCT COVERS (50039152) ONTO DUCT SUPPORTS USING THE SLOT AND PINS
• INSTALL INTAKE COVERS(KDP_0136) USING (3) 8-32 MACHINE SCREWS (53-0050) FOR
EACH HEATER ASSEMBLY
o PUSH COVER IN THEN TO FASTEN WITH THE THREE 8-32 SCREWS
