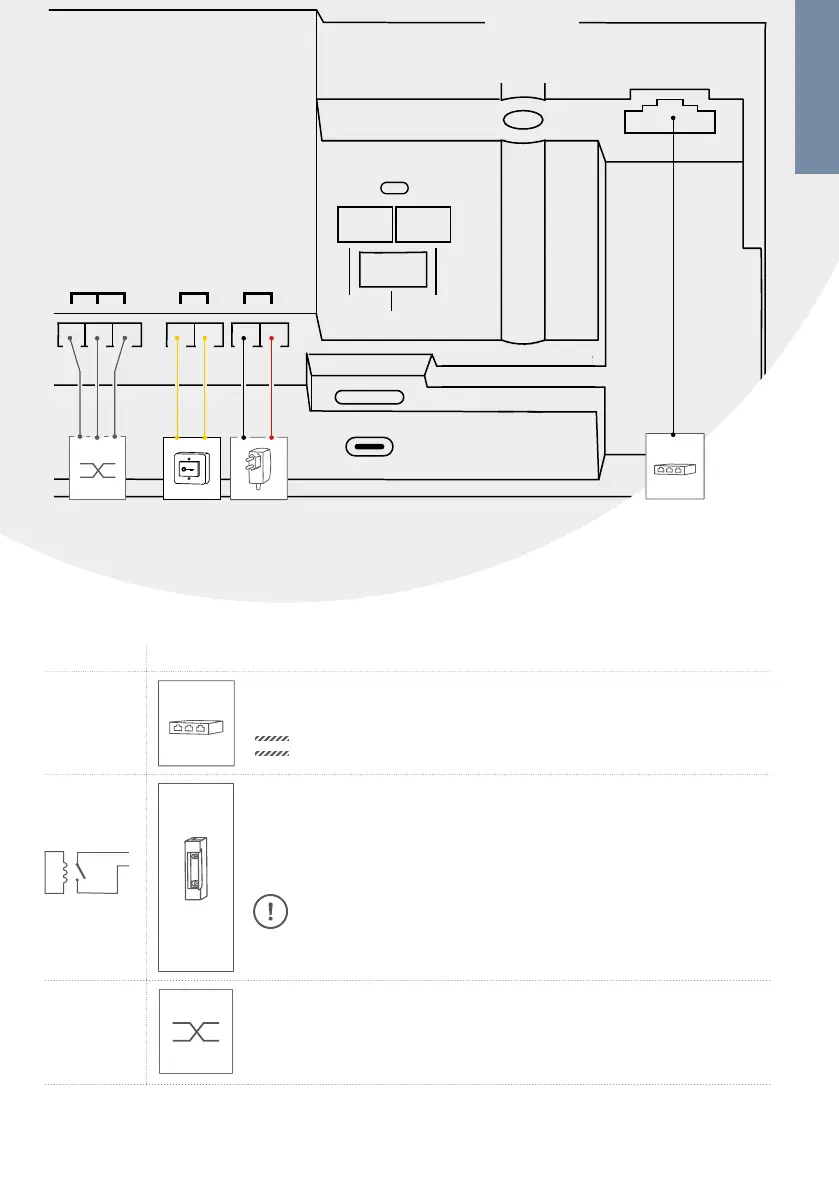

LAN / PoE+
PWR LED
Max 24V 1A
R1 R1 R2 R2 GND D1 D0 E1 E1 -VDC+
Wiegand 0V 0A 48-57
CB1 CB2
COM1
Display
Micro SIM
USB-C
Cell
Antenna
Cell
Antenna
PORT DESCRIPTION
LAN/POE+
RJ45 jack to connect the Network coming from the Internet Router/PoE+
Switch/PoE+ Injector.
NOTICE
Do not power the device simultaneously via the power supply from the power supply
unit (mains adaptor) and the power supply via PoE+.
R1 R1, R2 R2
REL
REL
Bistable latching relay #1 and relay #2, max. 24 V DC / AC, 1 A. Security feature:
The relay keeps its state even in the case of loss of power. You can configure
the default state of the relay (open/close) via the DoorBird App. These ports
can be used to connect e.g. an electric door opener. The device does not
supply power to the connected device. The power supply for the electric door
opener must be installed separately.
When wiring an electric door opener directly to a door station, there is a risk that the
electric door opener could be tampered by unauthorized third parties (e. g. by
breaking the door station and short-circuiting the wiring of the door opener).
Therefore, we generally recommend the use of a remote safety relay mounted indoors (e. g.
DoorBird I/O Door Controller A1081) for wiring an electric door opener for a more secure
installation in your home.
GND Ground. For Wiegand output (RFID reader, Keypad). Wiegand can be turned
on/off and configured via the DoorBird App.
The Small parts bag provided contains a cable with tree individual wires
(black, green, white) and plug. Please use this cable to connect your Wiegand
device (GND: Black wire).
ENGLISH
9
