04) Make sure that the pins (C) of the left locking mechanism (06) are firmly locked in the fast-lock opening04)
(11) on the bottom of the device, as shown in Fig. 41.
05) Turn lever (A) of the left locking mechanism (06) clockwise to tighten the 2nd LED screen to the 1st LED05)
screen, as shown in Fig. 42 and 43.
06) Repeat steps 2–5 for the right locking mechanism (06) on the bottom LED screen.06)

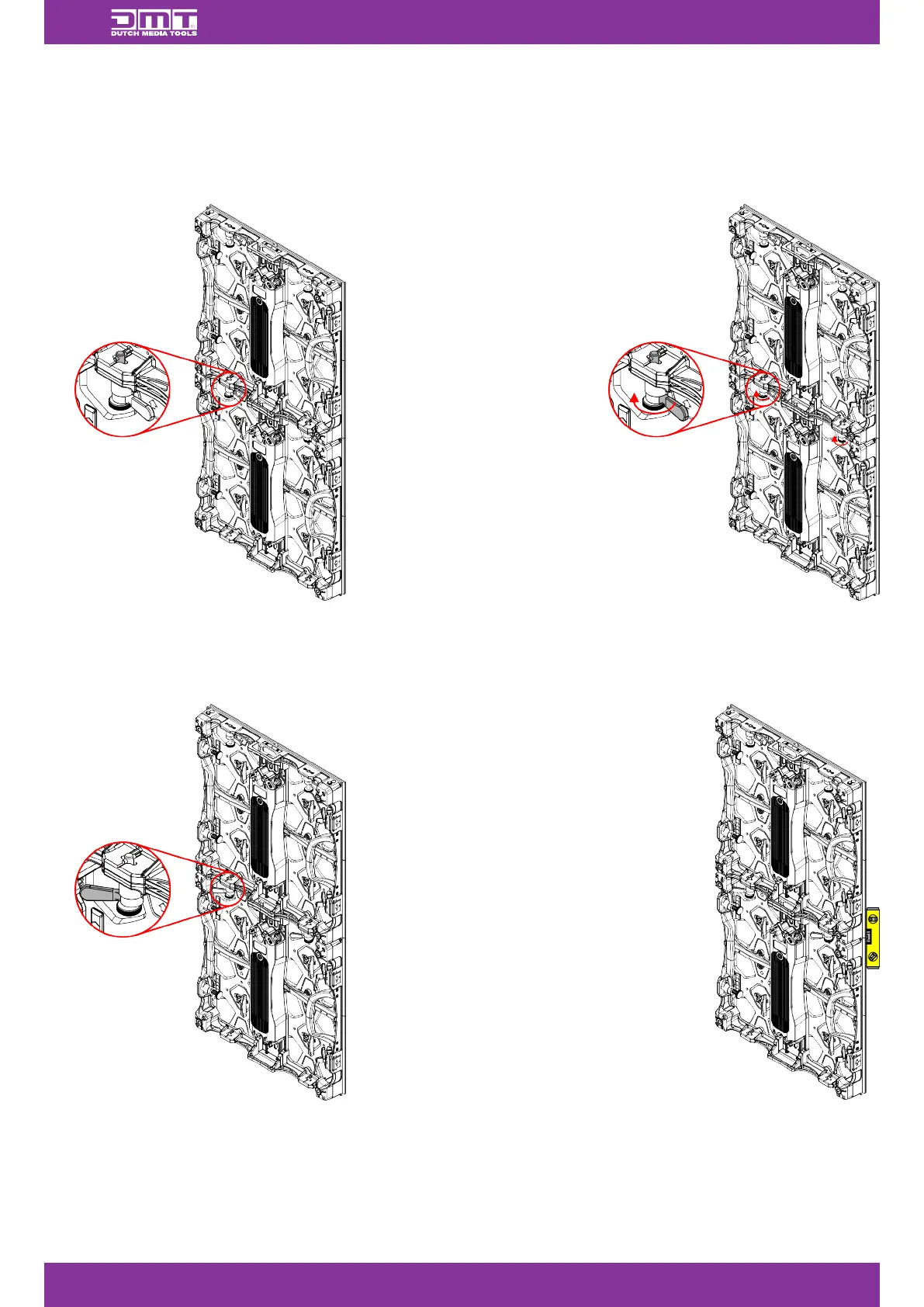

Figure 41 Figure 42
07)
Make sure that the LED screen is secured and leveled before you continue with the installation, as shown in
07)
Fig. 44. To level the setup, see Fig. 14 and 15 on page 15.
08)
If you want to add more LED screens to the setup, repeat steps 2–7.
08)
Figure 43 Figure 44
23
c
Product code: 101812
Alpha Series A1.9i
