Digi-Pas
®
© 2023 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 9

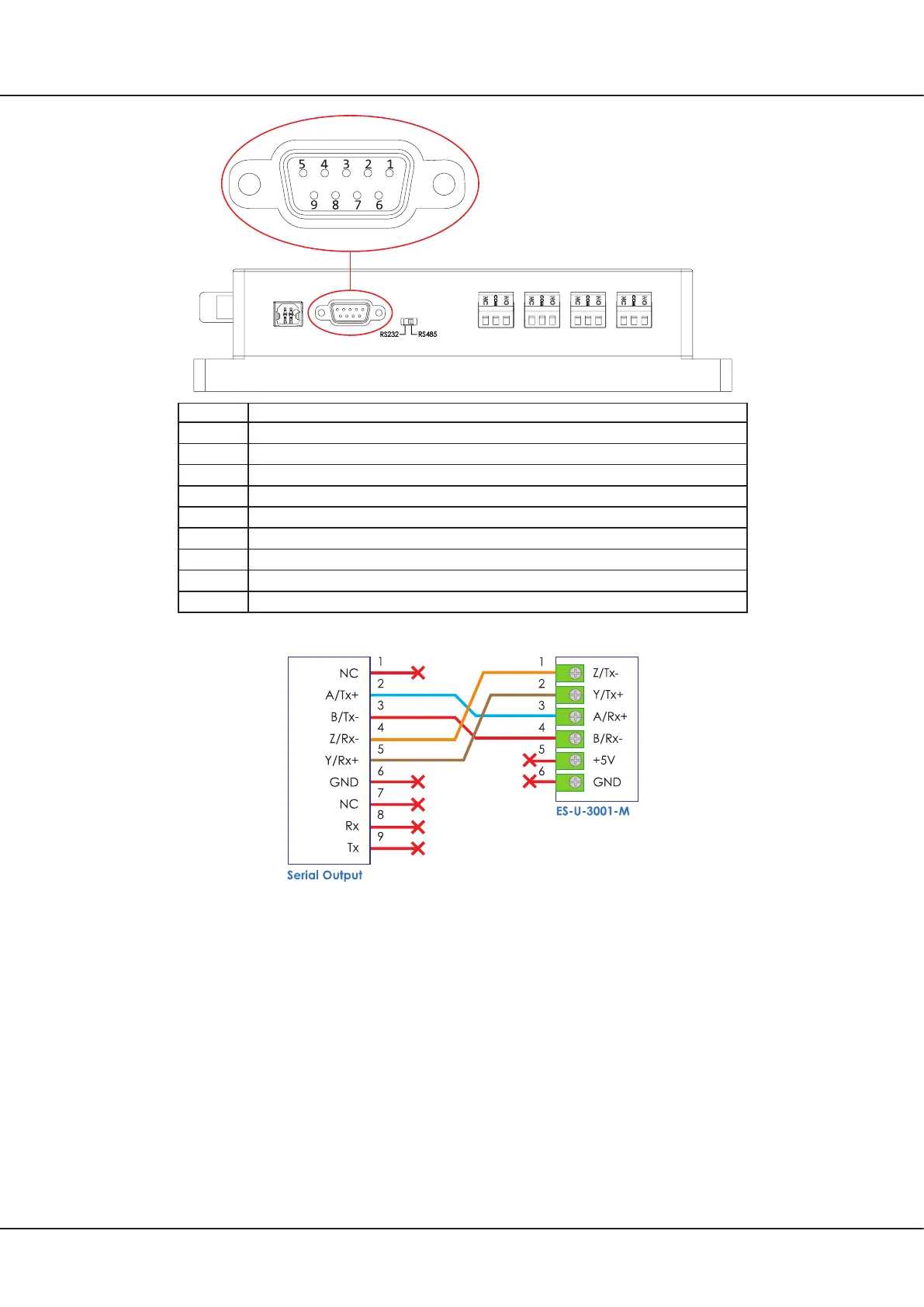

DWL-5x000XY DATA SHEET
Pin No. Description
1 NC
2 RS485 - A (Non-inverting Receiver Input/Tx+)
3 RS485 - B (Inverting Receiver Input/Tx-)
4 RS485 - Z (Inverting Driver Output)/Rx-)
5 RS485 - Y (Noninverting Driver Output / Rx+)
6 GND
7 NC
8 RS232 - Receiver Input (Rx)
9 RS232 - Transmitter Output (Tx)
Figure 14. The connection pinout of RS485 Serial Output with ES-U-3001-M converter in RS485 mode
8. The conguration is then completed. The conguration is then completed. Users
can obtain data through PC Sync software please refer to “4. Operation”, using
Digi-Pas DLL refer to “5.2 . DLL for Serial Communication Protocol Direct to Sen-
sor” or direct programming refer to “7. Serial Communication Protocol for Control
Box”
