Digi-Pas
®
© 2023 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 40
DWL-5x000XY DATA SHEET
2. Wait for response from the sensor. Once the calibration mode is activated, last 4 bits of
Byte 2 will show 0xB and Byte 6 will show 0x01.
>> (From sensor) :
0x61, 0x1B, 0x00, 0x00, 0x13, 0x01, 0x88, 0xDD, 0xDD, 0xDD, 0x22, 0x93
Byte [n] Command Descriptions
Byte [0] 0x61 To Computer / From Sensor
Byte [1] 0x1B Single Axis Position / Calibration Mode
Byte [2] 0x00 Calibration Feedback
Byte [3] 0x00 Calibration Count
Byte [4] 0x13 Not Applicable
Byte [5] 0x01 0x01: Calibration Step 1 ready
Byte [6] 0x88 Not Applicable
Byte [7]~[9] 0xDD Fixed Dummy
Byte [10] 0xAA CRC16 High
Byte [11] 0x93 CRC16 Low

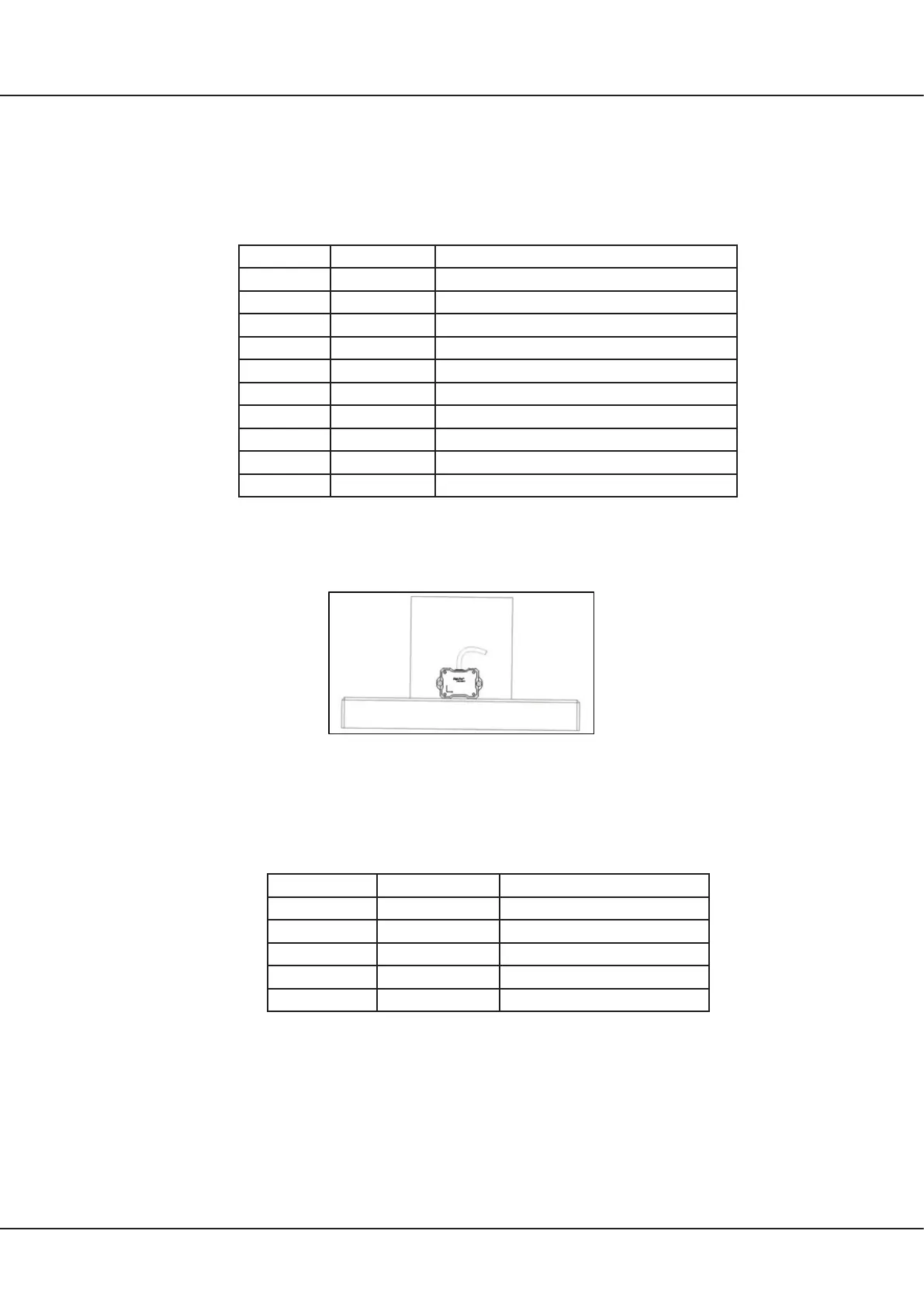

3. Locate the sensor module as following Figure 35. The sensor is ready for user to perform
calibration step 1.
Figure 35. Tilt Sensor Module Position of Calibration Step 1
4. Send the following command from computer to respective sensor to trigger on the cali-
bration step 1:
<< (To sensor): 0x06, 0x01, 0x0B, 0xB0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
Byte [n] Command Descriptions
Byte [0] 0x06 From Computer
Byte [1] 0x01 To Sensor
Byte [2] 0x0B Calibration Mode
Byte [3] 0xB0 Start Application
Byte [4]~[11] 0x00 Not Applicable
5. Wait for response from the sensor. The sensor will broadcast the following response with
Byte 4 counting from 0x00 to 0x1E. Once Byte 4 counts to 0x1E, Byte 3 shows 0x17 from
0x0A and Byte 6 shows 0x02, calibration step 1 is completed. If Byte 3 from sensor response
is not equal to 0x17 and Byte 6 response is not equal to 0x02 after Byte 4 is counted to
0x1E, restart (power off and power on again) the sensor module and redo the calibration
process from the beginning (Step 1).
>> (From sensor): 0x61, 0x1B, 0x17, 0x1E, 0x13, 0x02, 0x88, 0xDD, 0xDD, 0xDD, 0x22, 0x93
