DWL-1300XY & DWL-1500XY Instruction Manual
3
1.4. List of Items
Item No. Description Quantity
1 Smart Digital Machinist Level 1 Unit
2 Certicate of calibration 1 Set
3 Quick Guide 1 pc
4 Digipas Smart Levels redemption card 1 pc
Table 1. List of items
2. OPERATION PROCEDURE
Insert 2 pieces of ”AA” batteries into the battery compartment and press ON/OFF button.
Alternatively, insert USB power source to the USB Port to power up the de- vice. Take note
that the device performance might be affected when a poorly regulated USB power
source is used.
Please ensure batteries are inserted incorrect polarity direction for a device to work.
2.1. Switching Axis reading
To change display reading value from X to Y axis or vice versa, press “MODE” button, the
green arrow-head signs on left/right screen indicate X-axis measurement while top & bot-
tom arrow-head signs indicate Y-axis measurement.
a
b

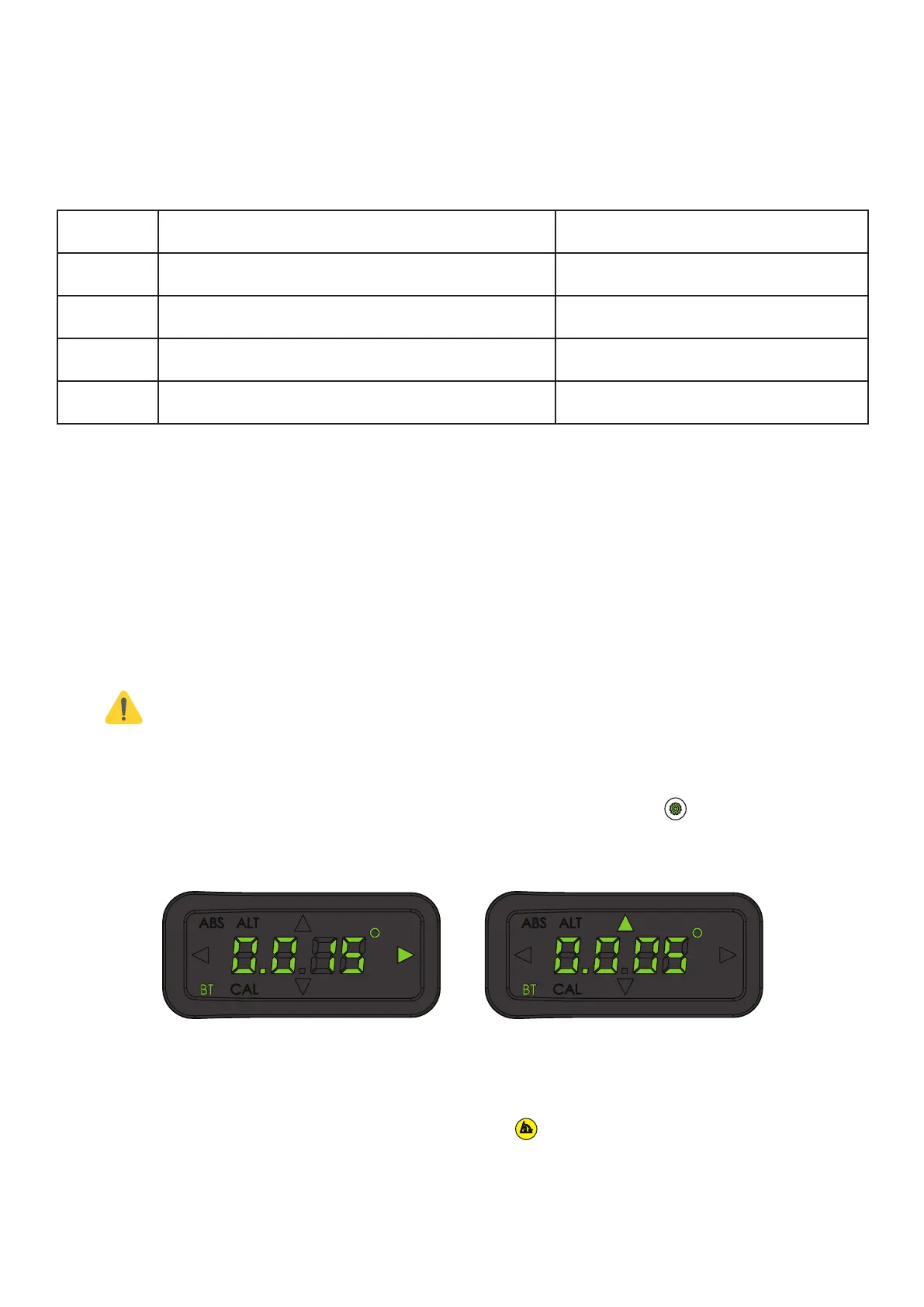

Figure 3. (a) X Axis measurement direction, (b) Y Axis measurement direction
2.2. Absolute Level mode
To operate in “Absolute Level” mode, press & hold “ALTERNATE ZERO” button
for ≥ 2 seconds, ABS icon (on top-left corner) & number “1” show up on LED display.
