DWL-1300XY & DWL-1500XY Instruction Manual
2
1. USB Port for alternate power supply
2. Zinc Alloy base
3. LED Display
4. ON/OFF button:
- Power On/Off
- Exit from “Absolute Level” mode
5. MODE button:
- Change measurement axis (X or Y)
- Press & Hold to turn on/off Bluetooth.
1. Bluetooth indicator
2. Calibration mode indicator
3. Degree unit indicator
4. Measurement value
5. Absolute Level mode indicator
6. Alt. Zero mode indicator
7. Y Axis direction indicator
8. X Axis direction indicator

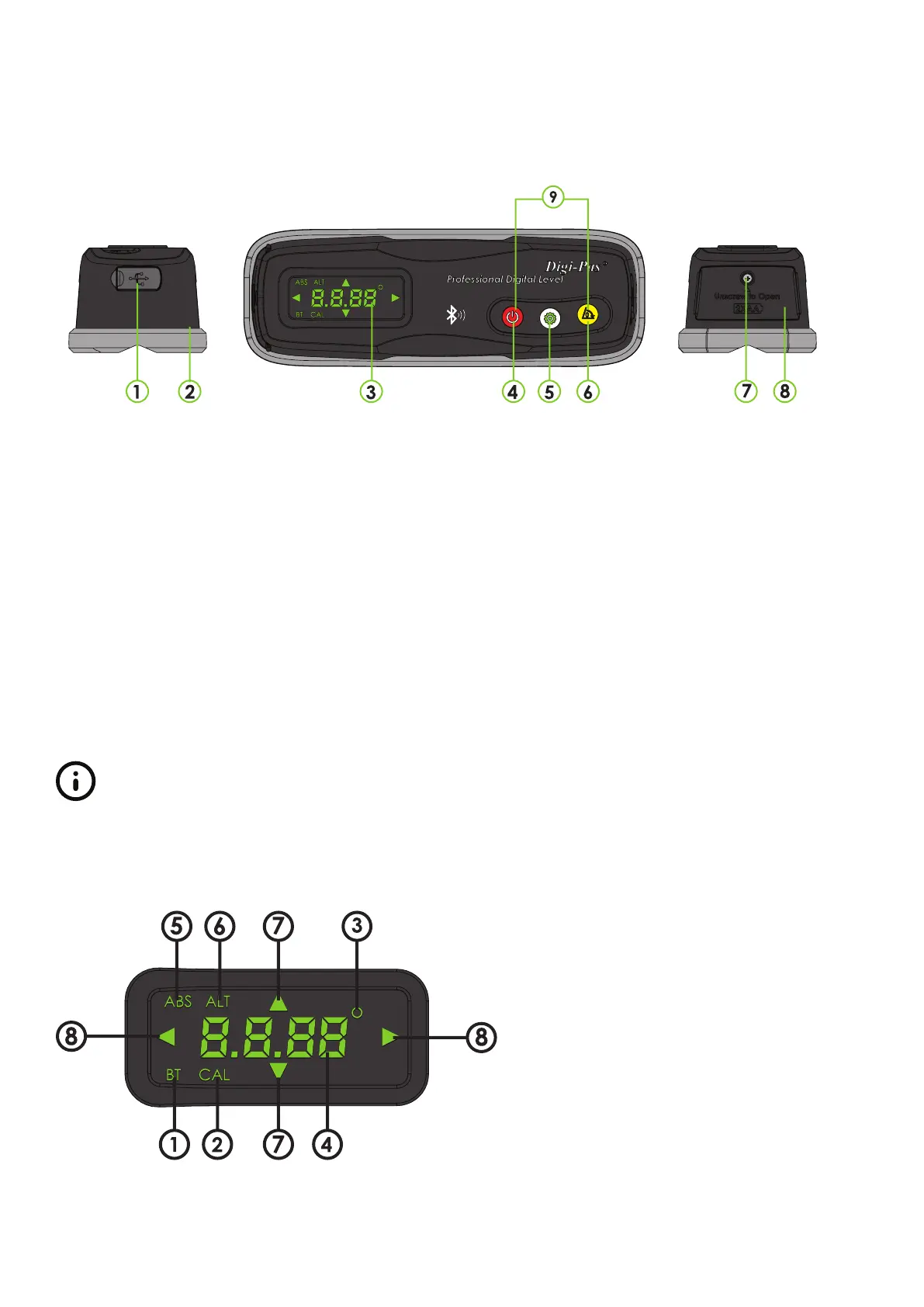

Figure 1. Overview of the Machinist Level
6. Alternate Zero button:
- Press for Alternate Zero mode
- Press & hold for Absolute level mode
7. Battery cover screw
8. Battery cover
9. Calibration mode buttons (simultaneous
press)
1.2. Device Overview
1.3. LED Display overview
Figure 2. Machinist level display overview
“Alternate zero” Mode:
Enable user to measure relative angles at a common plane with respect to a reference angle. Set
any angle to 0.000 ° as a reference.
