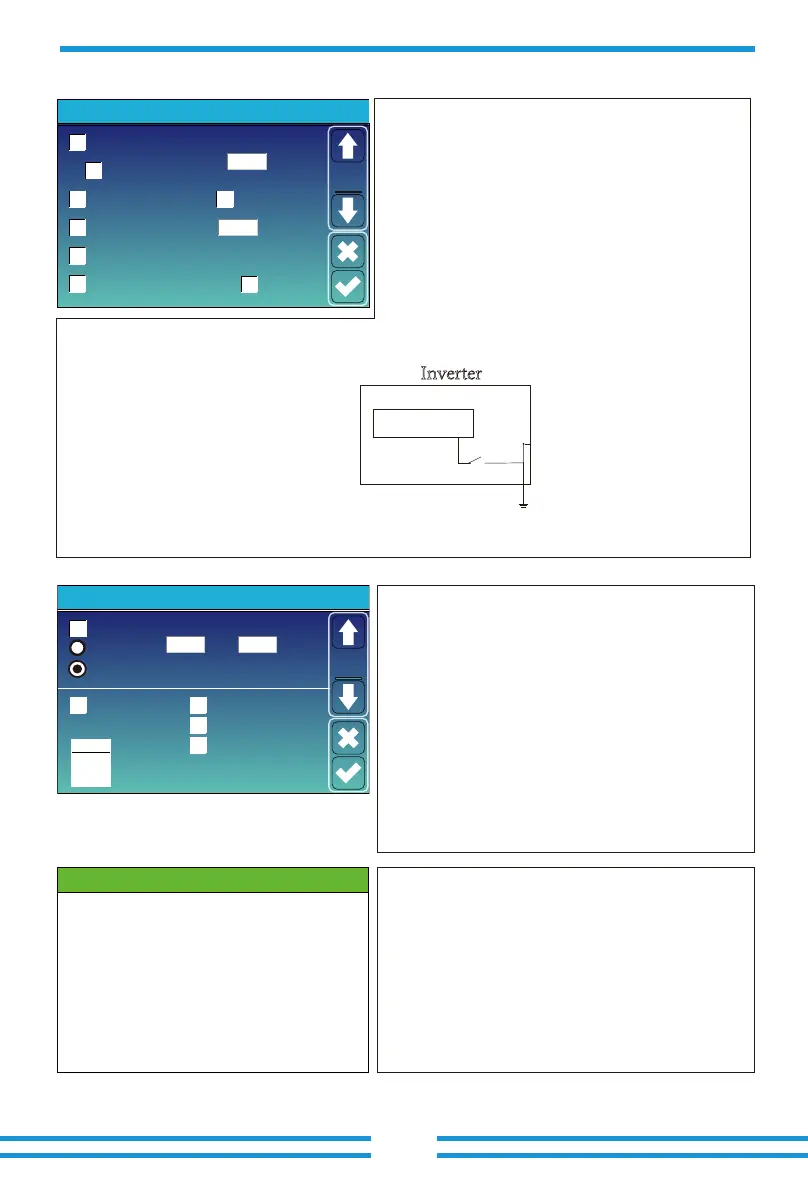

5.10 Advanced Function Setup Menu
*Signal island mode:
If "Signal island mode" is checked and When inverter is in off-grid mode, the relay on the Neutral line of
load port will switch on, then the N line of load port will bind to ground.
Asymmetric phase feeding:
When the loads connected to the Load port have an unbalanced distribution on the three phases
and the inverter is working in on-grid mode, enabling this function will ensure an equal power absorption from the three phases
of grid.
Solar Arc Fault ON(Optional)
Clear Arc_Fault(Optional)
System selfcheck
CEI Report
0ms
2000：1
Backup Delay
Advanced Function
Func
Set1
DRM
Gen peak-shaving
CT Ratio
Signal Island Mode
Asymmetric phase feeding
Solar Arc Fault ON(Optional):
This feature is optional. After
enabling this function, the inverter will detect whether there is
a arcing fault on the PV side. If arcing occurs, the inverter will
report a fault and stop outputting power.
Clear Arc_Fault(Optional):
After the arc fault on the PV side is
eliminated, enabling this function can eliminate the arc fault
alarm of the inverter and restore normal operation of the inverter.
System selfcheck:
Disable. this is only for factory.
Gen Peak-shaving:
Limit the maximum output power of the
generator to the set rated power on "GEN PORT USE" page, the rest of
power consumption will be provided by inverter to ensure that the
generator will not overload.
DRM:
Demand response mode, receive external commands for active
power scheduling and reactive power scheduling.
Backup Delay:
When the grid cuts off, the inverter will output power
after the set time.
For example, backup delay: 600s. the inverter will give output power
after 600s when the grid cuts off.
Note: for some old FW version, this function is not available.
L1 L2 L3 N
Load port
Inverter
Shell
Relay
Ground cable
*If this item was selected, please ensure that
the shell of the inverter is grounded,
otherwise there will be electric shock if you
touch the shell.
Parallel: Enable this function when several same model hybrid inverters are
connecting in parallel.
Master: Select any hybrid inverter in the parallel system as the master
inverter, and the master inverter needs to manage the working mode of the
parallel system.
Slave: Set the other inverters managed by the master inverter as slave
inverter.
Modbus SN: The Modbus address of each inverter, should be different.
Baud Rate: The rate at which inverter transmits data.
Ex_Meter For CT: when using zero-export to CT mode, the hybrid inverter
can select EX_Meter For CT functionand use the different meters.e.g.CHNT
and Eastron.
Grid Tie Meter2: When there are one or more grid-tied inverters AC coupled
on the grid or load port side of the hybrid inverter, and external meter is
installed for this/these grid-tied inverters, it is necessary to enable this
function to upload the data of the external meter to the hybrid inverter to
ensure that the power consumption data of the load is correct.
CT Check: Inverter will perform self check on external CT and return the
test results.
MPPT Scan:
After enabling this function, MPPT will perform I-V curve
scanning every 5 minutes to find the maximum power point again and
eliminate MPPT failure caused by shadows.
CT_Data: The CT self-check result data presented in decimal
format needs to be parsed into binary to display whether the
three CTs are correctly connected.
CT_CTA:
Analysis of A-phase CT self-check result.
CT_CTB:
Analysis of B-phase CT self-check result.
CT_CTC: Analysis of C-phase CT self-check result.
CT SelfCheck
CT_Data: 0
CT_CTA: FAIL
CT_CTB: FAIL
CT_CTB: FAIL
Parallel
Master
Slave
00
Modbus SN
0000
Baud Rate
Paral.
Set3
EX_Meter For CT Grid Tie Meter2
CT check
MPPT Scan
Meter Select
0/3No Meter
CHNT
Eastron
Advanced Function
