6. Mode

5.11 Device Info Menu

HMI: LCD version

Volt

1

2

3

50.38V 19.70A 30.6C 52.0% 26.0Ah 0.0V 0.0A 0|0|0

50.33V 19.10A 31.0C 51.0% 25.5Ah 53.2V 25.0A 0|0|0

50.30V 16.90A 30.2C 12.0% 6.0Ah 53.2V 25.0A 0|0|0

4

5

0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0

6

7

8

9

10

11

12

13

14

15

Curr

Volt Curr

Temp SOC Energy

Charge

Fault

Sum

Data

Details

Data

Li-BMS

Volt

1

2

3

50.38V 19.70A 30.6C 52.0% 26.0Ah 0.0V 0.0A 0|0|0

50.33V 19.10A 31.0C 51.0% 25.5Ah 53.2V 25.0A 0|0|0

50.30V 16.90A 30.2C 12.0% 6.0Ah 53.2V 25.0A 0|0|0

4

5

0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0

6

7

8

9

10

11

12

13

14

15

Curr

Volt Curr

Temp SOC Energy

Charge

Fault

Sum

Data

Details

Data

Li-BMSDevice Info.

Inverter ID: 2102199870 Flash

MAIN:Ver2002-1046-1707

HMI: Ver 1001-8010

Alarms Code

F13 Grid_Mode_changed

F56 DC_VoltLow_Fault

F23 Tz_GFCI_OC_Fault

2021-06-11 13:17

2021-06-11 08:23

2021-06-11 08:21

2021-06-10 13:05

Occurred

Device

Info

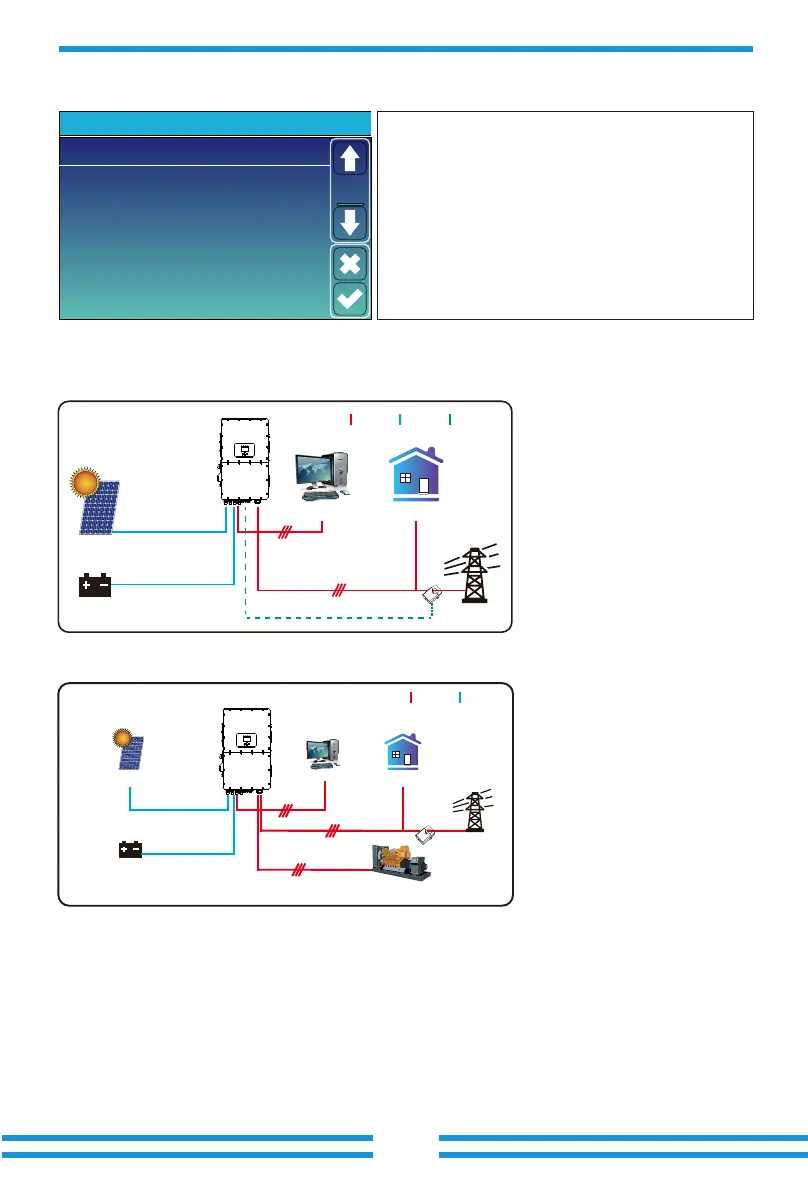

Mode I:Basic

MAIN: Control board FW version

Grid

Backup Load On-Grid Home Load

CT

Battery

Solar

AC cable DC cable

COM cable

Grid

Backup Load

On-Grid Home Load

Battery

Solar

CT

AC cable DC cable

Generator

Mode II: With Generator

This page show Inverter ID, Firmware version and alarm

codes.

Note: Generator and Grid can't power the inverter in the same

time，when the inverter is operating in on-grid mode, the relay

on the GEN port of inverter will alway be open.
