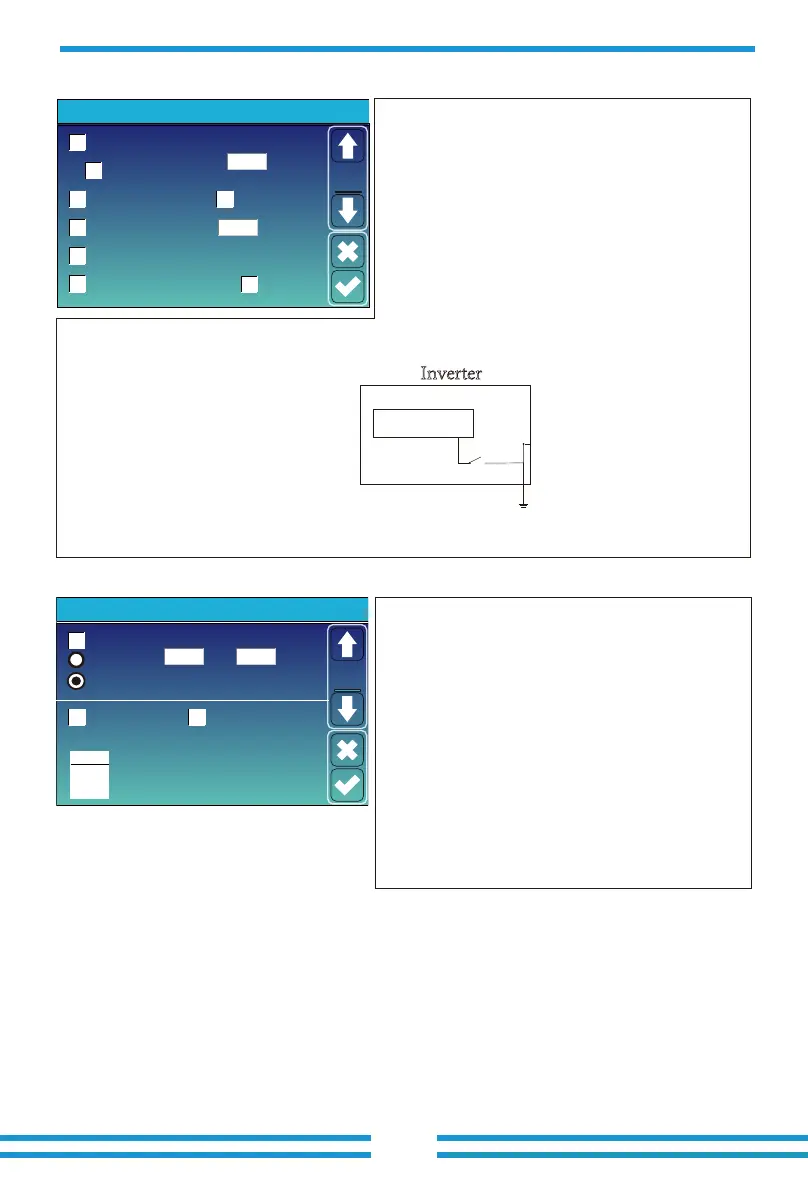

5.10 Advanced Function Setup Menu

*Signal island mode:

If "Signal island mode" is checked and When inverter is in oﬀ-grid mode, the relay on the Neutral line of

load port will switch on, then the N line of load port will bind to ground.

Asymmetric phase feeding:

When the loads connected to the Load port have an unbalanced distribution on the three phases

and the inverter is working in on-grid mode, enabling this function will ensure an equal power absorption from the three phases

of grid.

Solar Arc Fault ON(Optional):

This feature is optional. After

enabling this function, the inverter will detect whether there is

a arcing fault on the PV side. If arcing occurs, the inverter will

report a fault and stop outputting power.

Clear Arc_Fault(Optional):

After the arc fault on the PV side is

eliminated, enabling this function can eliminate the arc fault

alarm of the inverter and restore normal operation of the inverter.

System selfcheck:

Disable. this is only for factory.

Gen Peak-shaving:

Limit the maximum output power of the

generator to the set rated power on "GEN PORT USE" page, the rest of

power consumption will be provided by inverter to ensure that the

generator will not overload.

DRM:

Demand response mode, receive external commands for active

power scheduling and reactive power scheduling.

Backup Delay:

When the grid cuts oﬀ, the inverter will output power

after the set time.

For example, backup delay: 600s. the inverter will give output power

after 600s when the grid cuts oﬀ.

Note: for some old FW version, this function is not available.

- 45 -

L1 L2 L3 N

Load port

Inverter

Shell

Relay

Ground cable

Parallel: Enable this function when several same model hybrid

inverters are connecting in parallel.

Master: Select any hybrid inverter in the parallel system as the

master inverter, and the master inverter needs to manage the

working mode of the parallel system.

Slave: Set the other inverters managed by the master inverter

as slave inverter.

Modbus SN: The Modbus address of each inverter, should be

diﬀerent.

Baud Rate: The rate at which inverter transmits data.

Ex_Meter For CT:

when using zero-export to CT mode,

the hybrid inverter can select EX_Meter For CT function

and use the diﬀerent meters.e.g.CHNT and Eastron.

Grid Tie Meter2: When there are one or more grid-tied inverters

AC coupled on the grid or load port side of the hybrid inverter,

and external meter is installed for this/these grid-tied inverters,

it is necessary to enable this function to upload the data of the

external meter to the hybrid inverter to ensure that the power

consumption data of the load is correct.

Parallel

Master

Slave

Modbus SN

0000

Baud Rate

Paral.

Set3

EX_Meter For CT Grid Tie Meter2

Meter Select

0/3No Meter

CHNT

Eastron

Advanced Function

*If this item was selected, please ensure that

the shell of the inverter is grounded,

otherwise there will be electric shock if you

touch the shell.
