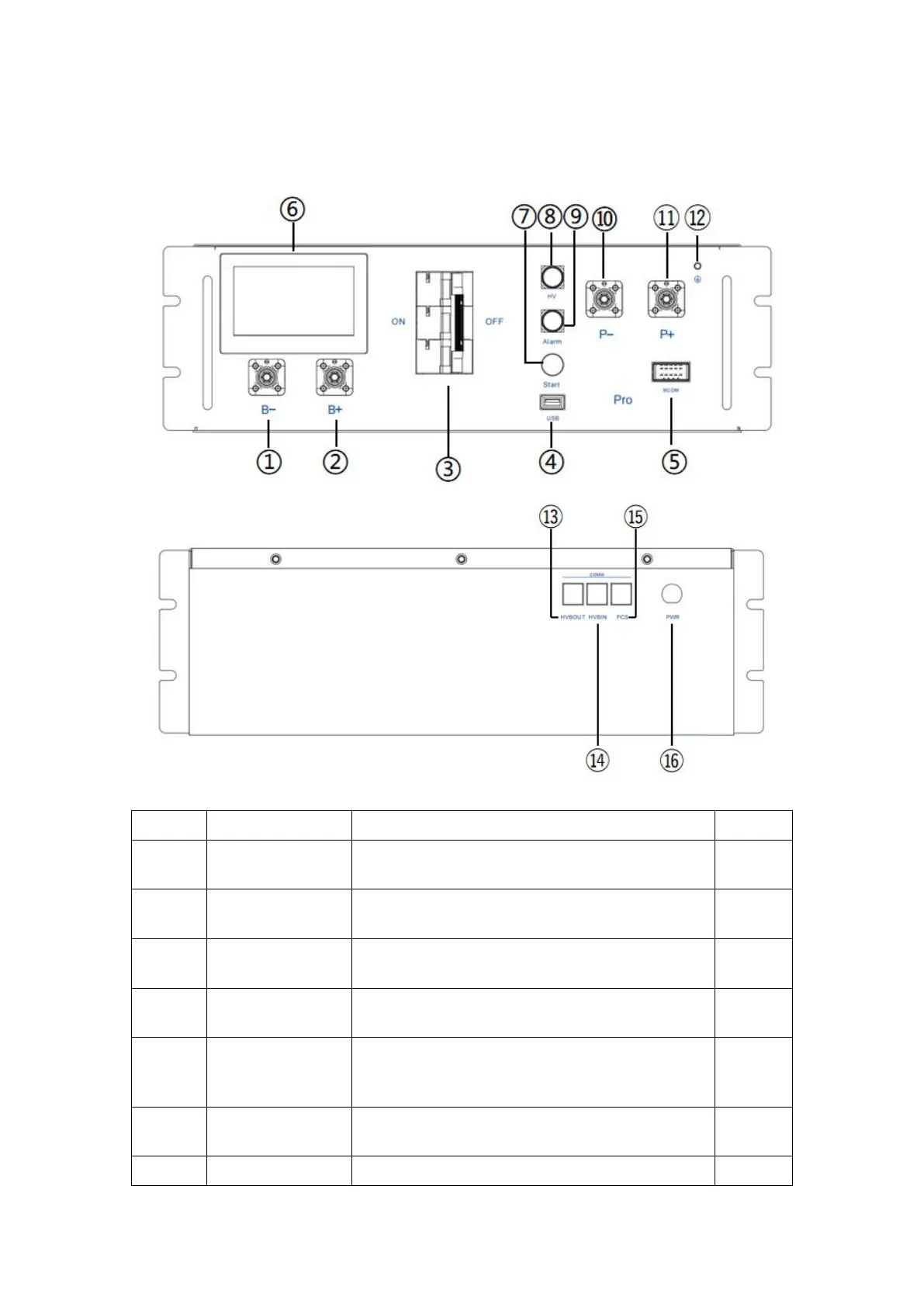

4.7 Description of High-Voltage Control Box
No.
Name
Description
Position
①
B-
Connection position of the common negative pole
of the battery (black)
Front
②
B+
Connection position of the common positive pole of
the battery (orange)
Front
③
Air switch
Used to manually control the connection between
the battery rack and external devices.
Front
④
USB
BMS upgrade interface and storage expansion
interface
Front
⑤
BCOM
Communicative connection with the first battery
module; and Providing 12VDC power for the first
battery module.
Front
⑥
Human-machine
interface (HMI)
Display some important battery information.
Front
⑦
START
A start switch of 12VDC power inside the high-
Front
