DXPGH2SB21 / DXPGB2WD21
SERVICING
27
Face Shield Replacement (DXPGH2SB21 Model Only)
Replace an old or damaged face shield as shown.
Face shields should be stored out of direct sunlight and replaced at least every 5 years or
according to local regulations, whichever is soonest.

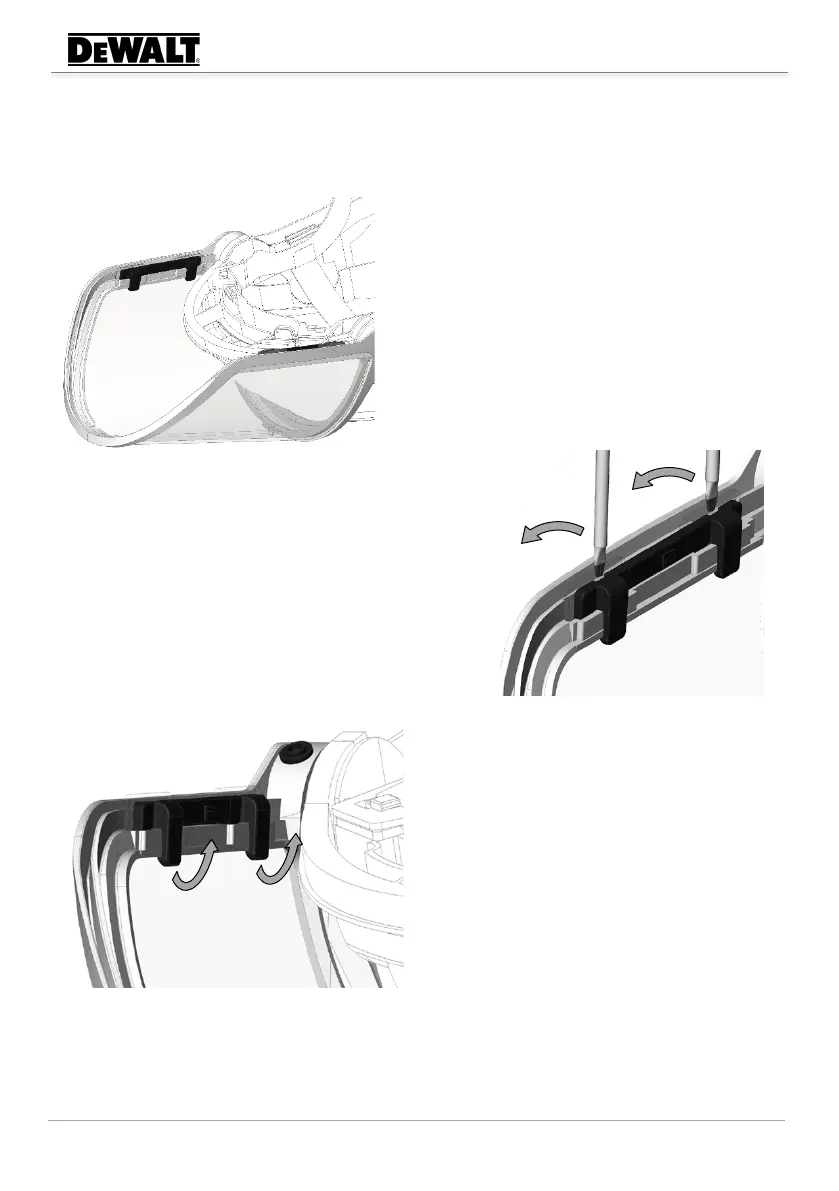

Turn the respirator upside down to gain access to
the face shield retainer clips. (Figure 34)
Insert a flat blade screwdriver (or similar) into
the slot to disengage the clips from both sides of
the face shield as shown. (Figure 35)
Release the face shield retainer clips from
each side of the frame.
(Figure 36)
Figure 34
Figure 36
Figure 35
