DXPGH2SB21 / DXPGB2WD21
16
WEARING AND USING
WEARING AND USING
Fitting the Respirator
To achieve an optimal level of respirator performance, follow the fitting instructions below.
Headband Height Adjustment

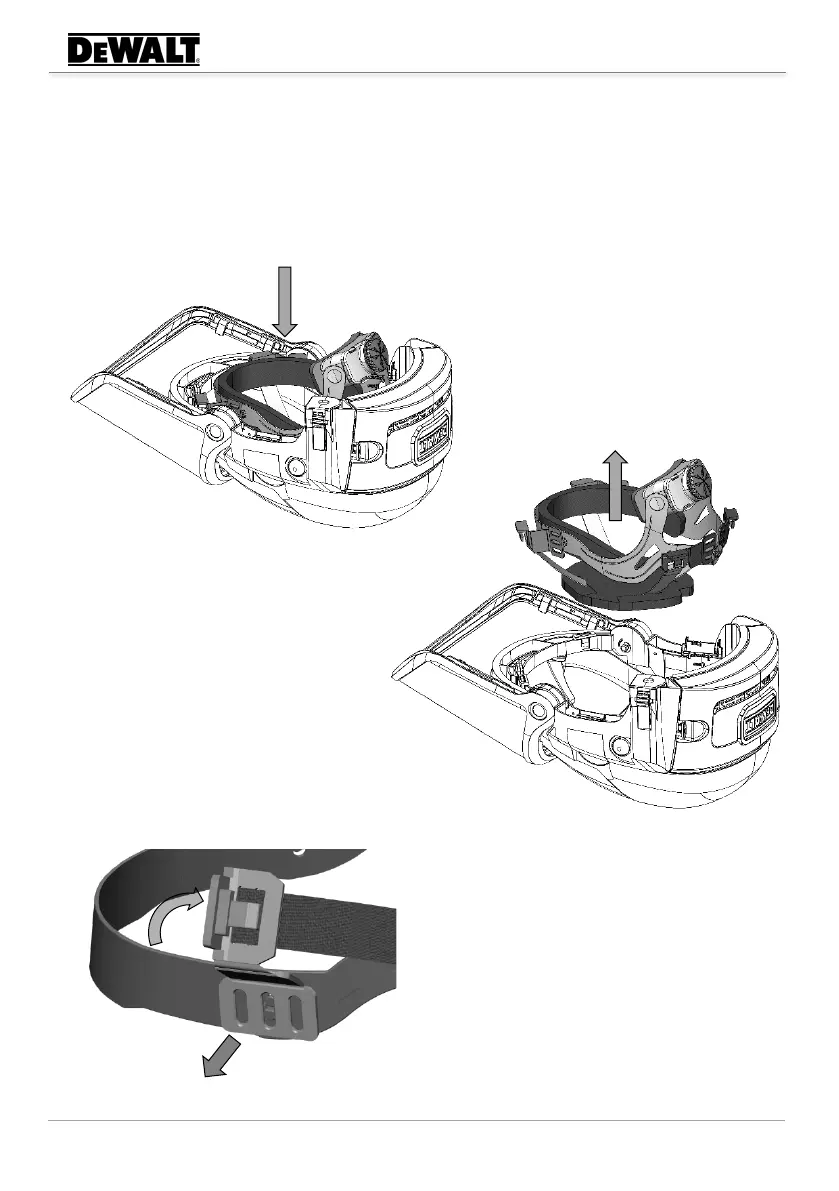

Before first use, adjust the headband height by following Figure 11-Figure 14. Release the
face seal press fasteners, secured to the elastic strap, from around the brow pad & headband.
Release the red headband mounts
from the 4 attachment posts in the
respirator frame (Figure 11) by
pressing the headband support
bracket.
The mount will ‘click’ out of the
attachment post.
Remove the headband from the
respirator. (Figure 12)
Rotate the headband support and remove from
the headband assembly. (Figure 13)
Figure 13
Figure 12
Figure 11
