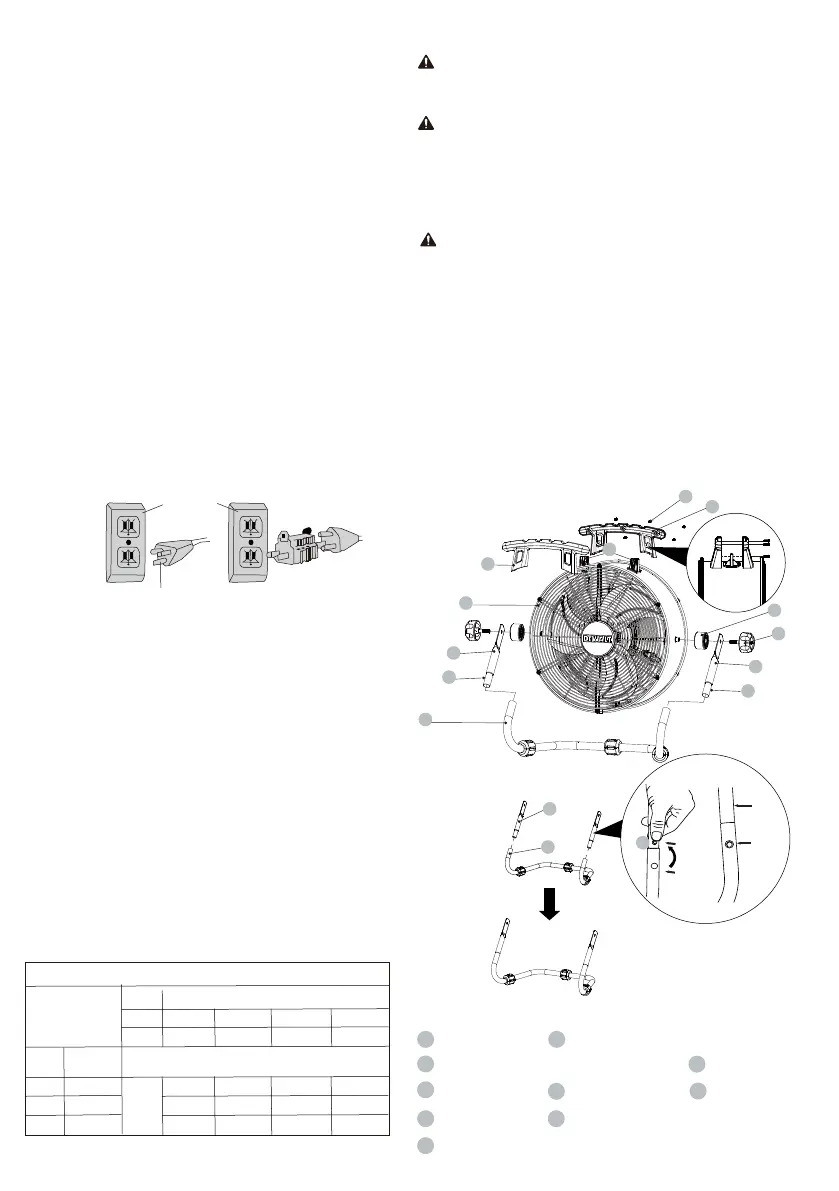

4
WARNING:
Keep electrical cords in good
condition. Do not use worn, bare, or frayed
cords because they can cause electrical shock.
Operating equipment at low
voltage can cause it to overheat. Using an
excessively long extension cord can cause the
cord to overheat.
WARNING:
USE OF EXTENSION CORDS
WITH FAN
Minimum Gauge for Extension Cord Sets
Volts
Total Length of Cord in Feet (meters)
120V
240V
AWG
Not More
Than
More
Than
Ampere Rating
25(7.6)
50(15.2)
0
6
10
6
18
18
16
16
16
16
16
14
14
14
12
12
10
12
50(15.2)
100(30.5)
100(30.5)
200(61.0)
150(45.7)
300(91.4)
Only use a grounded extension cord that is rated
at least 15 amps and has a third-wire ground.
When a long extension cord is used to connect
the fan, a voltage drop occurs. The longer the
cord, the greater the voltage drop. This results
in less voltage being supplied to the fan and
increases the amount of current (amp) draw or
reduces performance. A heavier cord with a
larger wire size will
reduce the voltage drop. Be
sure to choose a cord that will supply enough
voltage to operate the fan. The table below
indicates appropriate gauge for extension
cords.
ENGLISH
The fan is for use on a nominal 120V circuit, and
should be connected to a grounding outlet that
looks like that illustrated in sketch a. A temporary
adaptor, which looks like the adaptor illustrated
in sketch b, may be used to connect this plug to
a 2-pole receptacle as shown in sketch b if a
properly grounded outlet is not available. The
temporary adaptor should be used only until a
properly grounded outlet can be installed by a
qualied electrician. The green colored rigid ear,
lug, and the like, extending from the adaptor
must be connected to a permanent ground
such as a properly grounded outlet box cover.
Whenever the adaptor is used, it must be held
in place by the metal screw.
NOTE:
IN CANADA, THE USE OF A
TEMPORARY ADAPTOR IS NOT PERMITTED
BY THE CANADIAN ELECTRICAL CODE.
Ensure that the fan is connected to an outlet
having the same conguration as the piug.
a b
ADAPTER
GROUNDING PIN
GROUNDED
OUTLET
BOX
FAN OPERATION
WARNING:
Before assembling the fan, make sure all parts
are present. Compare parts with contents list.
If any part is missing or damaged, do not attempt
to assemble, install, or operate the product.
Contact customer service for replacement parts.
Unplug fan before assembling any parts to it.
1.
2. Fan Cradle Assembly:
Simple assembly is required to use this fan.
Tools Required (Not Included):
#2 Phillips Screwdriver or Suitable Drill
Equipped with #2 Phillips Bit.
1 2
3
4
5
6
7
8
Handle screw Rear handle (with screw holes)
Handle base
Drum
Support bracket
Spring button
Cradle base
9
Adjustment knob pad
10
Adjustment knob
Front handle (without screw holes)
6
8
Press spring
button
Opening of
cradle base
Support
bracket
Spring
button
3
5
6
8
1
2
9
10
4
7
6
7
7
