After cleaning replace the door glass pane(s)
When replacing the glass pane(s) make sure that:
■ you replace the inner pane(s) correctly as shown. The pane(s) must be in the position
described below in order to t into the door and to ensure that the oven operates safely
and correctly;
■ you take extra care not to bump the edges of the glass against any object or surface;
■ you do not force any of the pane(s) into place. If you are experiencing diculties
replacing the pane(s), remove it/them and start the process again from the beginning.
If this still does not help, call Customer Care.
Replace the middle pane (models
PRO66MXLPZ, PRO66MALPZ
only)
Ensure the pane is the right way up (the warning text should be readable back to front
when the pane is fitted correctly).
• Slot the bottom of the pane into the lower notch at the bottom of the door.
• Position the pane by gently lowering it.

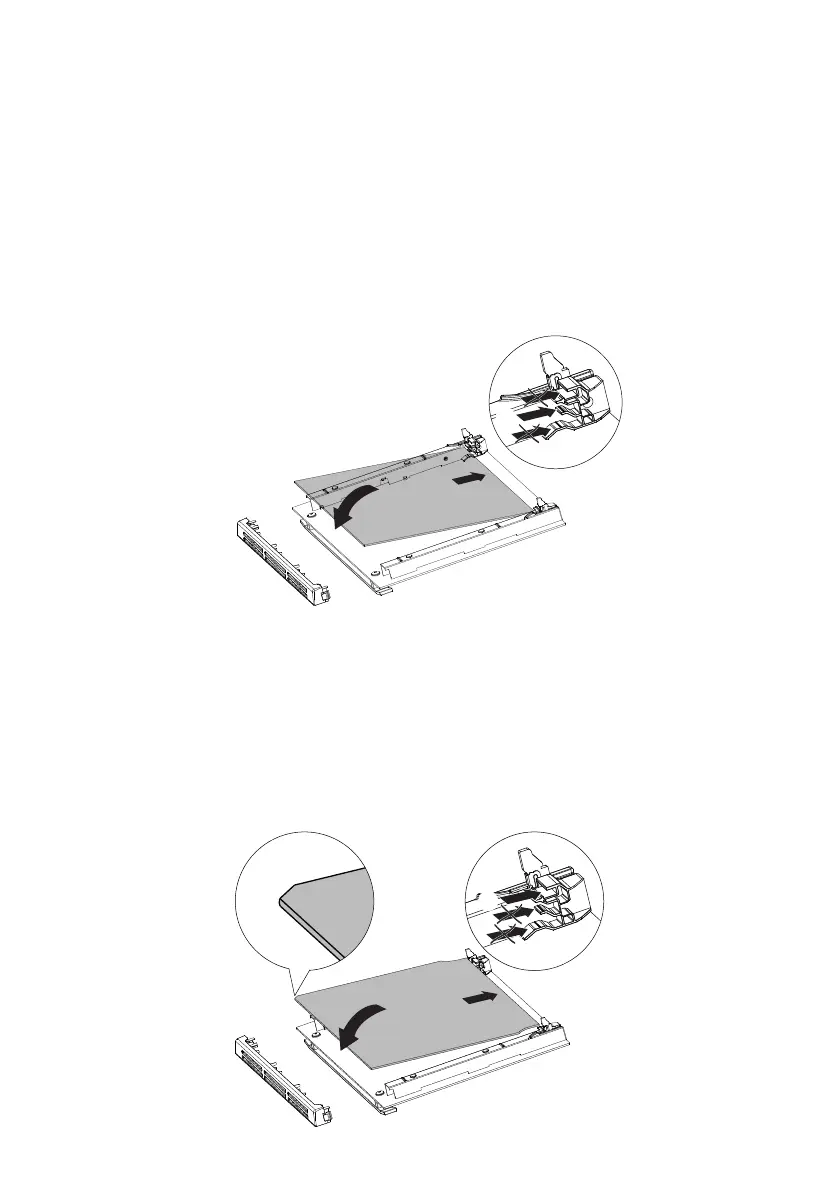

Replace the inner pane
Make sure you fit the glass the right way up, with the beveled top corner in the correct
position.
■ Slot the bottom of the pane into the lower notch at the bottom of the door.
■ Position the pane by gently lowering it.
■ Slide the glass retainer back into place and ensure it is fully clipped securely in place.
IMPORTANT!!
Make sure the glass retainer is correctly and firmly in place and the glass pane
is secure.
Figure 48
Figure 49
