To remove the middle pane (models
PRO66MXLPZ, PRO66MALPZ
only)
■ Gently lift and pull out the middle pane of glass by releasing it from the bottom
retaining notches (fig. 47).
To remove the inner pane
■ Touch the glass retainer tabs in on both sides of the door and remove the glass
retainer (figs. 44, 45).
■ Gently lift and pull out the inner pane of glass by releasing it from the bottom retainers.
Do not angle the pane too much as you may damage the glass (fig. 46).

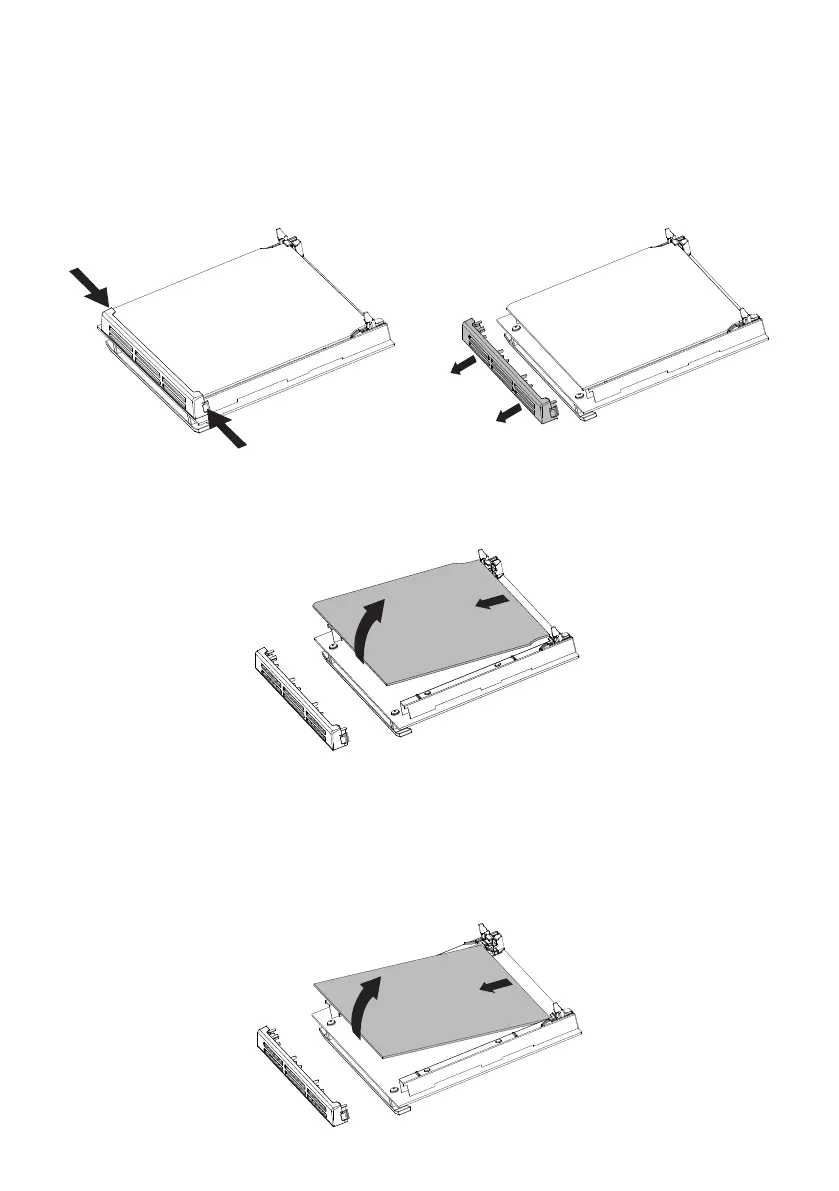

Figure 44 Figure 45
Figure 46
Figure 47
