OPERATIONS TO BE EXECUTED
FOR THE REPLACEMENT OF THE
INJECTORS OF THE OVEN AND
GRILL BURNER
a) oven burner
• Lift and remove the lower panel inside the oven.
• Unscrew and remove the burner securing screw
“A” (g. 2.6).
• Slacken screw “B” (g. 2.6).
• Withdraw the burner in the manner shown in
gure 9.7 and rest it inside the oven. Take care
not to damage the wire to the ignition electrode
and the safety valve probe.
• Using a 10 mm box spanner, unscrew the injector
“U” (indicated by the arrow in g. 2.7) and replace
with a new injector selected in accordance with
the “Table for the choice of the injectors”; then
replace the burner repeating the above steps in
reverse order.

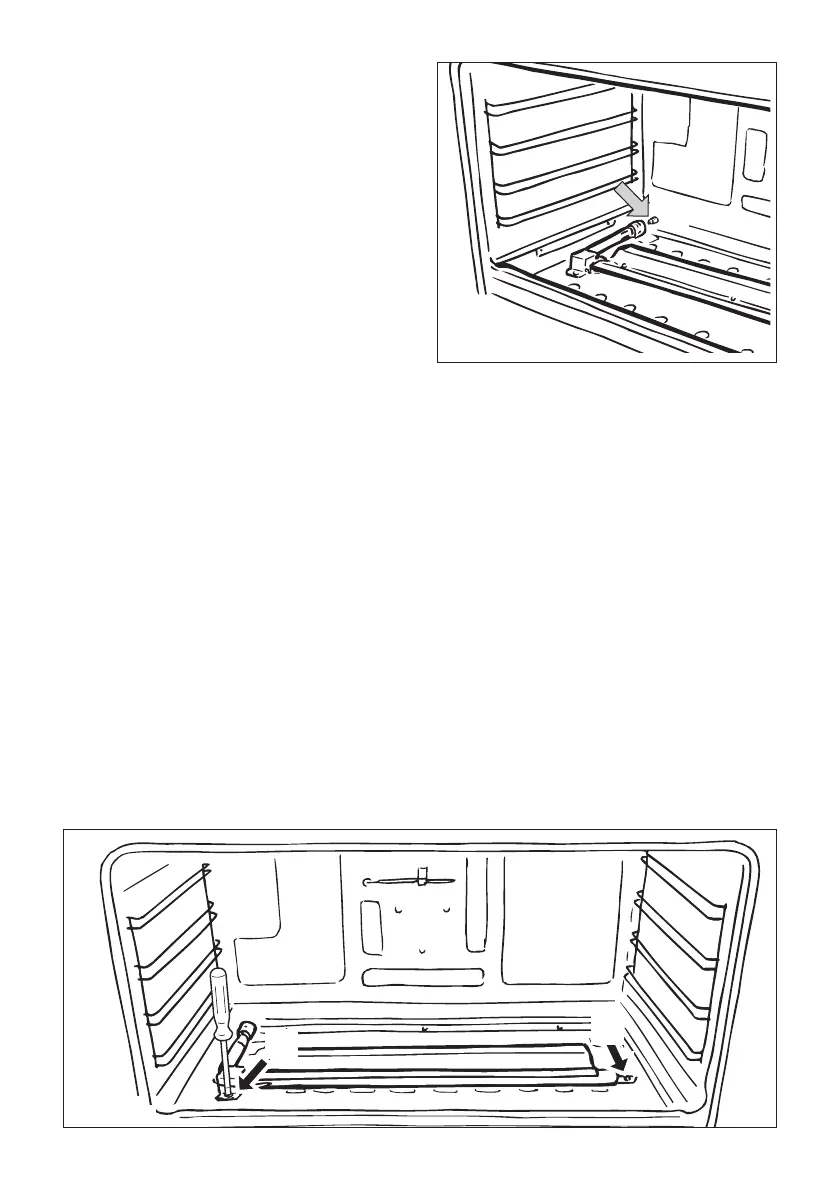

U
A
B
Fig. 2.7
Fig. 2.6
