18 | The Fan Tray Dell PowerConnect W-6000 Controller | Installation Guide

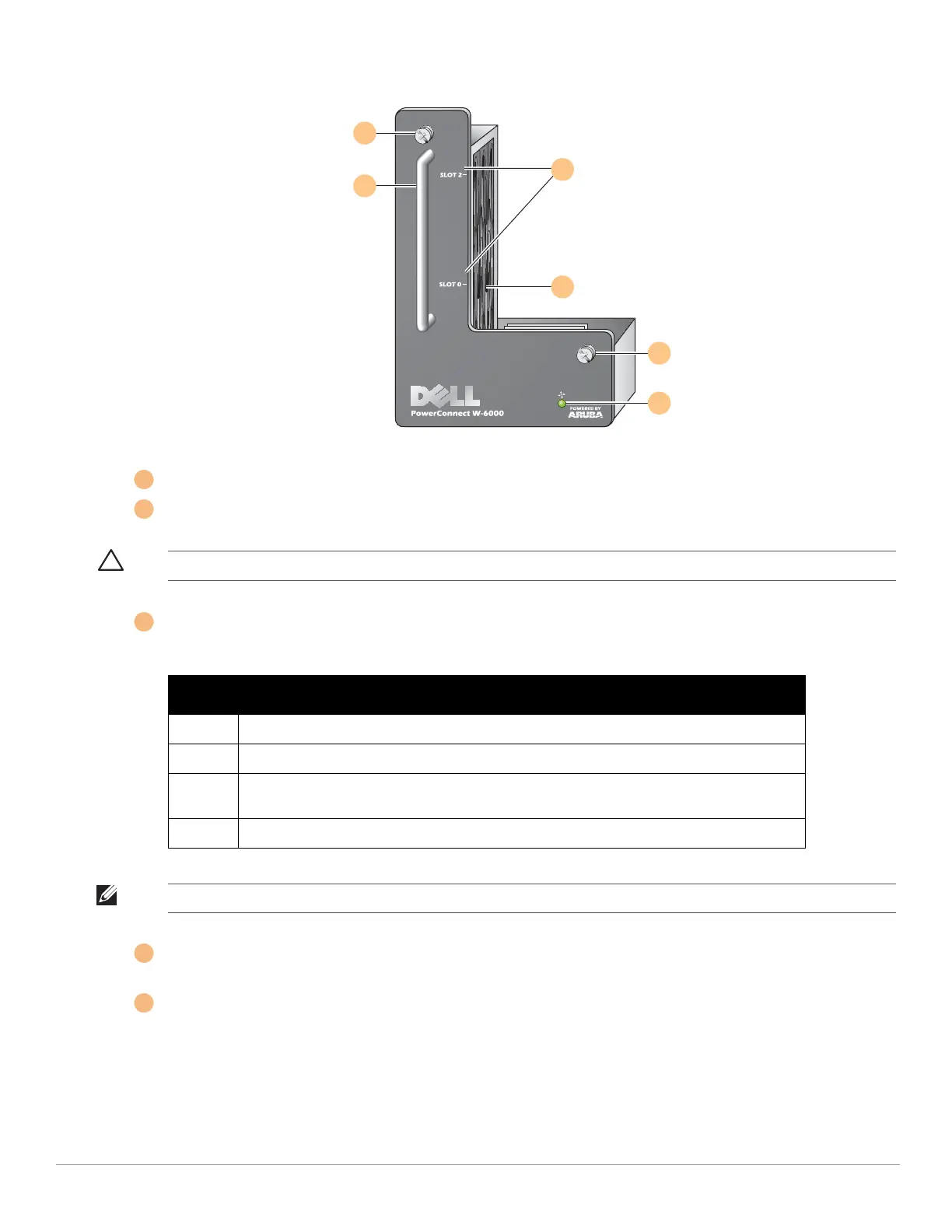

Figure 5 Dell W-6000 controller Series Fan Tray
Module Fastening Screws: These captive screws are used for securing the module into the chassis fan tray slot.
Module Handle: This handle is used for removing or inserting the module into the chassis.
Fan Status LED: During operation, the Fan Status LED provides the following information:
Slot Labels: When the fan tray is installed in the W-6000 controller, these labels name the module slots to the
immediate right of the fan tray (see Figure 1 on page 7).
Fans (on side): Three independent fans provide redundancy for cooling the W-6000 controller cards.
1
2
5
4
1
3
1
2
CAUTION: Do not use the fan tray handle to lift or move the W-6000 controller. Serious damage could result.
Table 4 Fan Tray LED Behavior
Status Description
Off The fan tray is not operating.
Green The fan tray is receiving power and all three fans are operating properly.
Amber One fan has failed, but the remaining two can provide proper cooling until the fan tray can be
conveniently replaced.
Red Two or more fans have failed. Replace the fan tray immediately.
3
NOTE: In addition to the LEDs, the fan tray status and overall chassis temperature can be viewed using the CLI.
4
5
