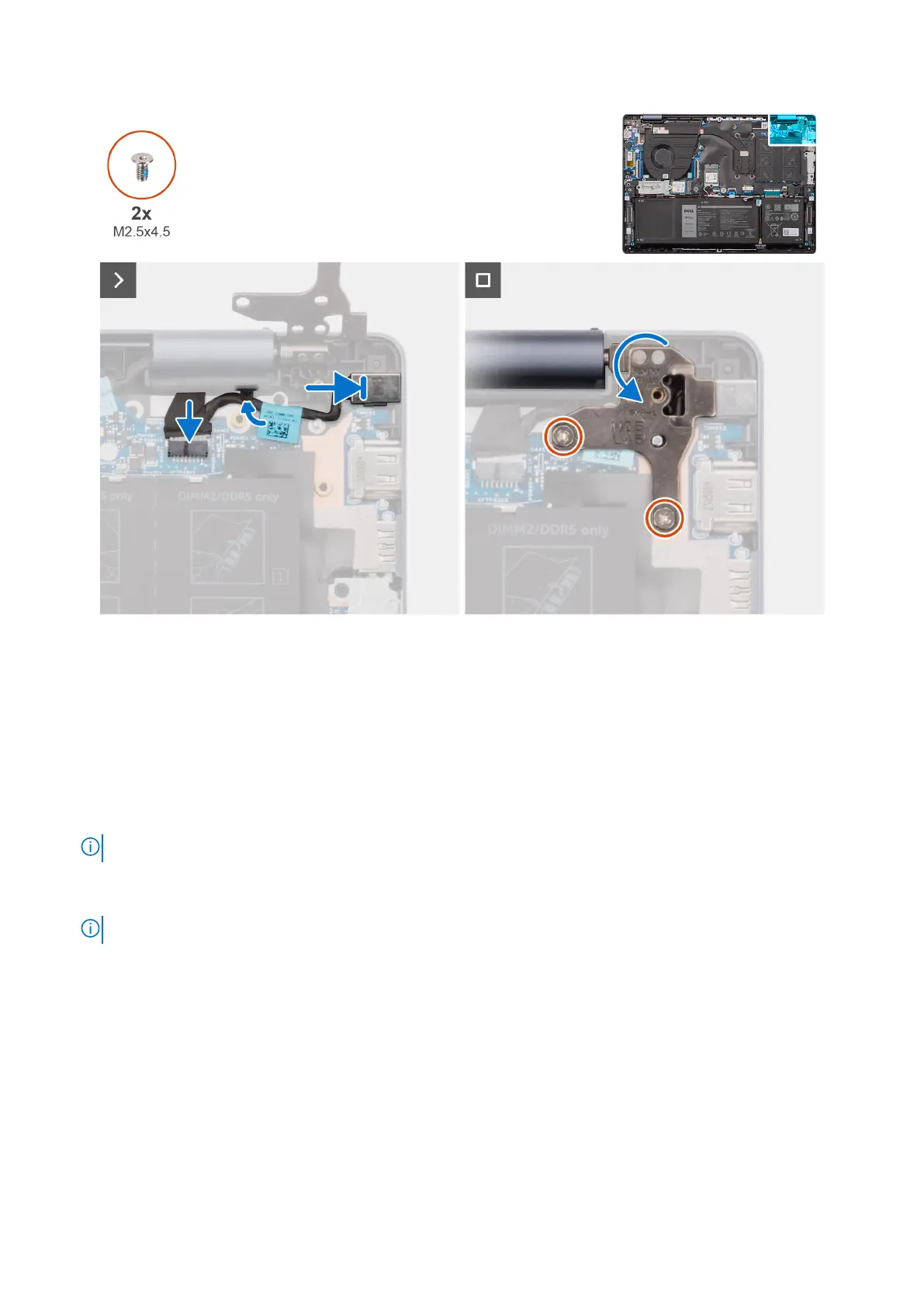

Figure 40. Installing the power-adapter port (for computers shipped with an aluminum chassis)

Steps

1. Align and place the power-adapter port in the slot on the palm-rest and keyboard assembly.

2. Route the power-adapter port cable through the routing guide on the palm-rest and keyboard assembly.

3. Connect the power-adapter port cable to the connector (DCIN1) on the system board.

4. Close the right display hinge to align the screw holes on the right display hinge with the screw holes on the system board

and the palm-rest and keyboard assembly.

5. Replace the two screws (M2.5x4) to secure the right display hinge to the system board and the palm-rest and keyboard

assembly.

NOTE:

This step applies only to computers shipped with a plastic chassis.

6. Replace the two screws (M2.5x4.5) to secure the right display hinge to the system board and the palm-rest and keyboard

assembly.

NOTE:

This step applies only to computers shipped with an aluminum chassis.

Next steps

1. Install the base cover (plastic chassis) or the base cover (aluminum chassis), whichever is applicable.

2. Follow the procedure in After working inside your computer.

Removing and installing Field Replaceable Units (FRUs)

51
