I/O-board cable

Removing the I/O-board cable

CAUTION: The information in this removal section is intended for authorized service technicians only.

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover (plastic chassis) or the base cover (aluminum chassis), whichever is applicable.

3. Remove the fan.

About this task

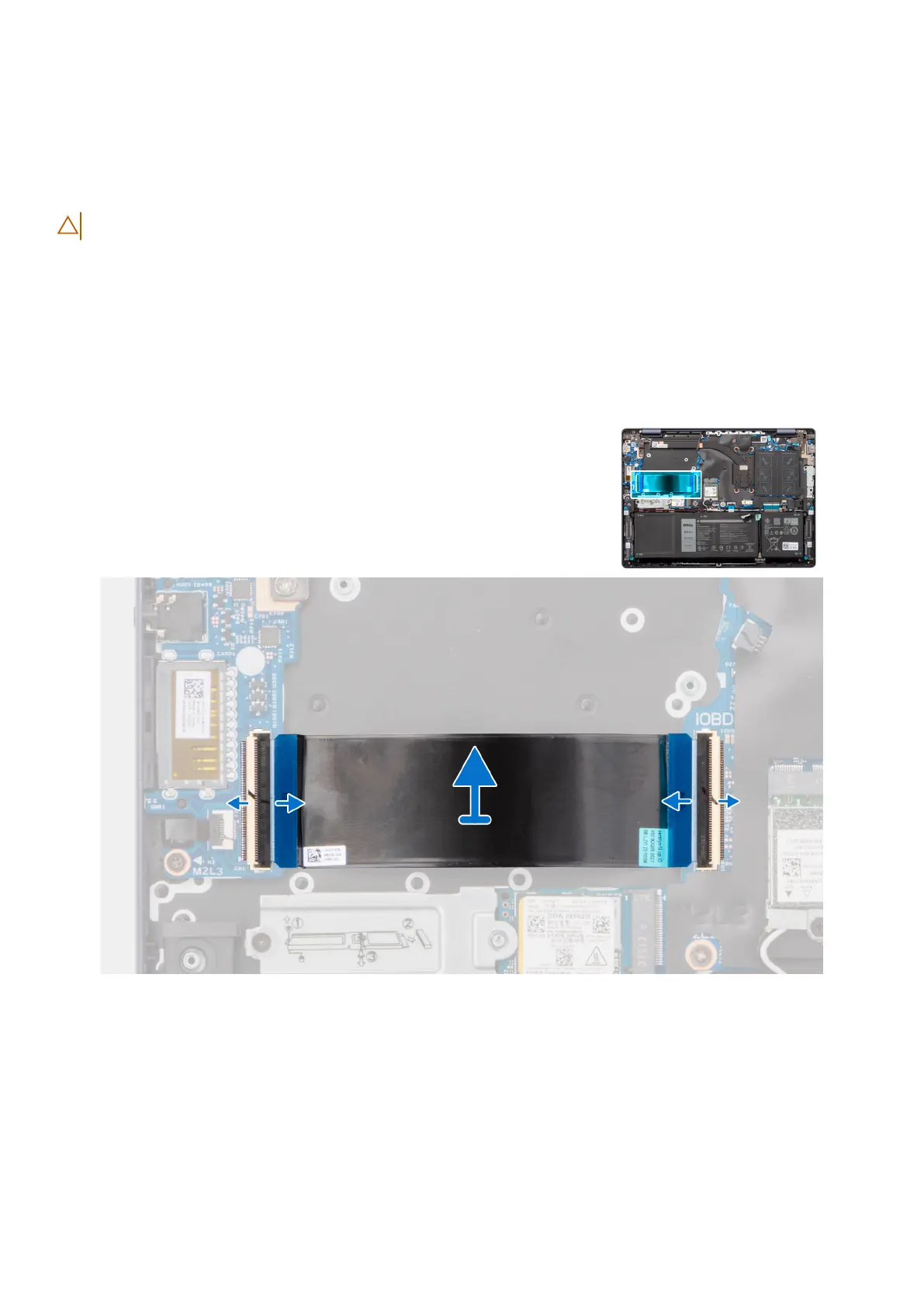

The following image indicates the location of the I/O-board cable and provides a visual representation of the removal procedure.

Figure 41. Removing the I/O-board cable

Steps

1. Open the latch and disconnect the I/O-board cable from the connector (IOBD1) on the system board.

2. Open the latch and disconnect the I/O-board cable from the connector on the I/O board.

3. Remove the I/O-board cable from the palm-rest and keyboard assembly.

52

Removing and installing Field Replaceable Units (FRUs)
