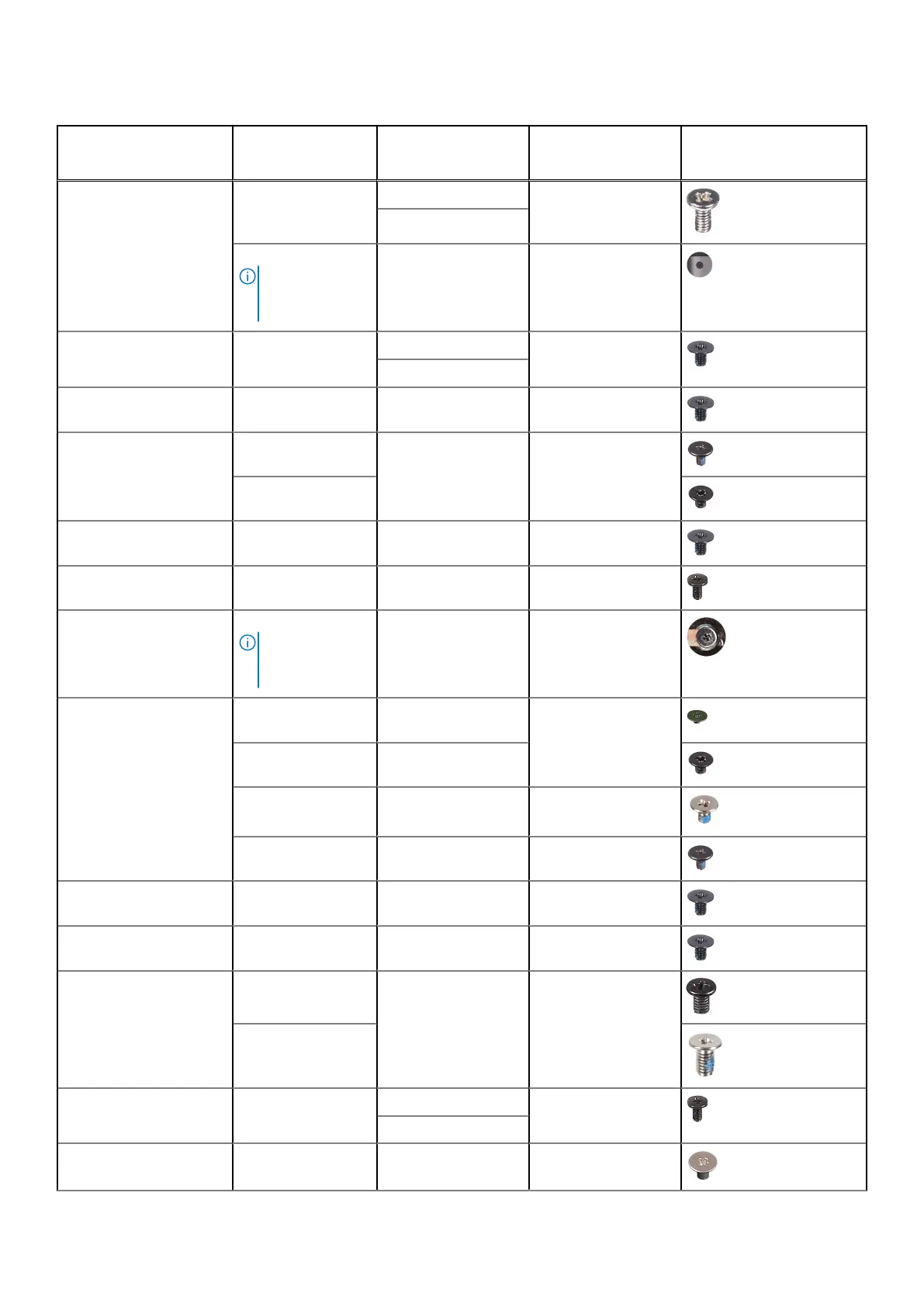

Table 1. Screw list

Component Screw type Quantity

Screw Torque

Strength

Screw image

Base cover M2x4 Plastic chassis: 6 1.6 kgf-cm

Aluminum chassis: 5

Captive screw

NOTE: Screws

are part of the

base cover.

2 1.6 kgf-cm

Battery M2x3 3-cell battery: 3 1.6 kgf-cm

4-cell battery: 5

Solid state drive M2x3 1 1.6 kgf-cm

Solid state drive bracket Plastic chassis:

M2x2.5

1 1.6 kgf-cm

Aluminum chassis:

M2x2

Wireless-card bracket M2x3 1 1.6 kgf-cm

Fan M2x4 2 1.6 kgf-cm

Heat sink Captive screw

NOTE: Screws

are part of the

heat sink.

4 1.6 kgf-cm

Touchpad assembly Plastic chassis:

M2x1.8

2 1.6 kgf-cm

Aluminum chassis:

M2x2

4

Plastic chassis:

M1.6x2.5

4 0.7 kgf-cm

Aluminum chassis:

M2x2.5

1 1.6 kgf-cm

I/O board M2x3 2 1.6 kgf-cm

Power button with

optional fingerprint reader

M2x3 1 1.6 kgf-cm

Display assembly Plastic chassis:

M2.5x4

4 3.0 kgf-cm

Aluminum chassis:

M2.5x4.5

USB Type-C bracket M2x4 Plastic chassis: 3 1.6 kgf-cm

Aluminum chassis: 2

System board Plastic chassis:

M2x2.5

2 1.6 kgf-cm
