About this task
The following images indicate the location of the smart card reader and provide a visual representation of the installation
procedure.

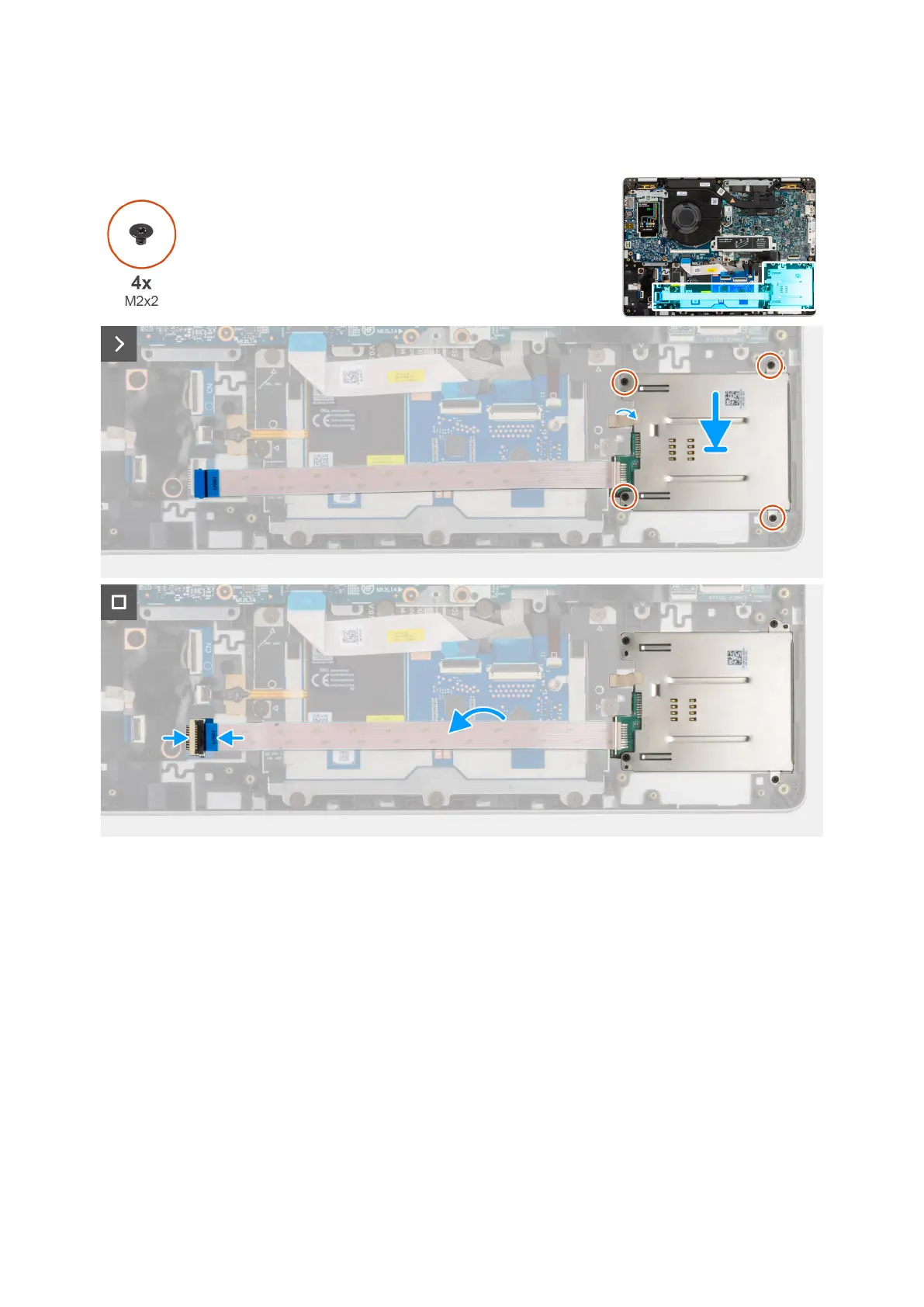

Figure 25. Installing the smart-card reader
Steps
1. Align and place the smart-card reader on its slot on the palm-rest assembly.
2. Replace the four screws (M2x2) that adheres the smart-card reader to the palm-rest assembly.
3. Connect the smart-card cable to the connector on the USH board and close the latch.
Next steps
1. Install the battery.
2. Install the speaker.
3. Install the base cover.
4. Install the SIM card (optional).
5. Follow the procedure in After working inside your computer.
68
Removing and installing Field Replaceable Units (FRUs)
