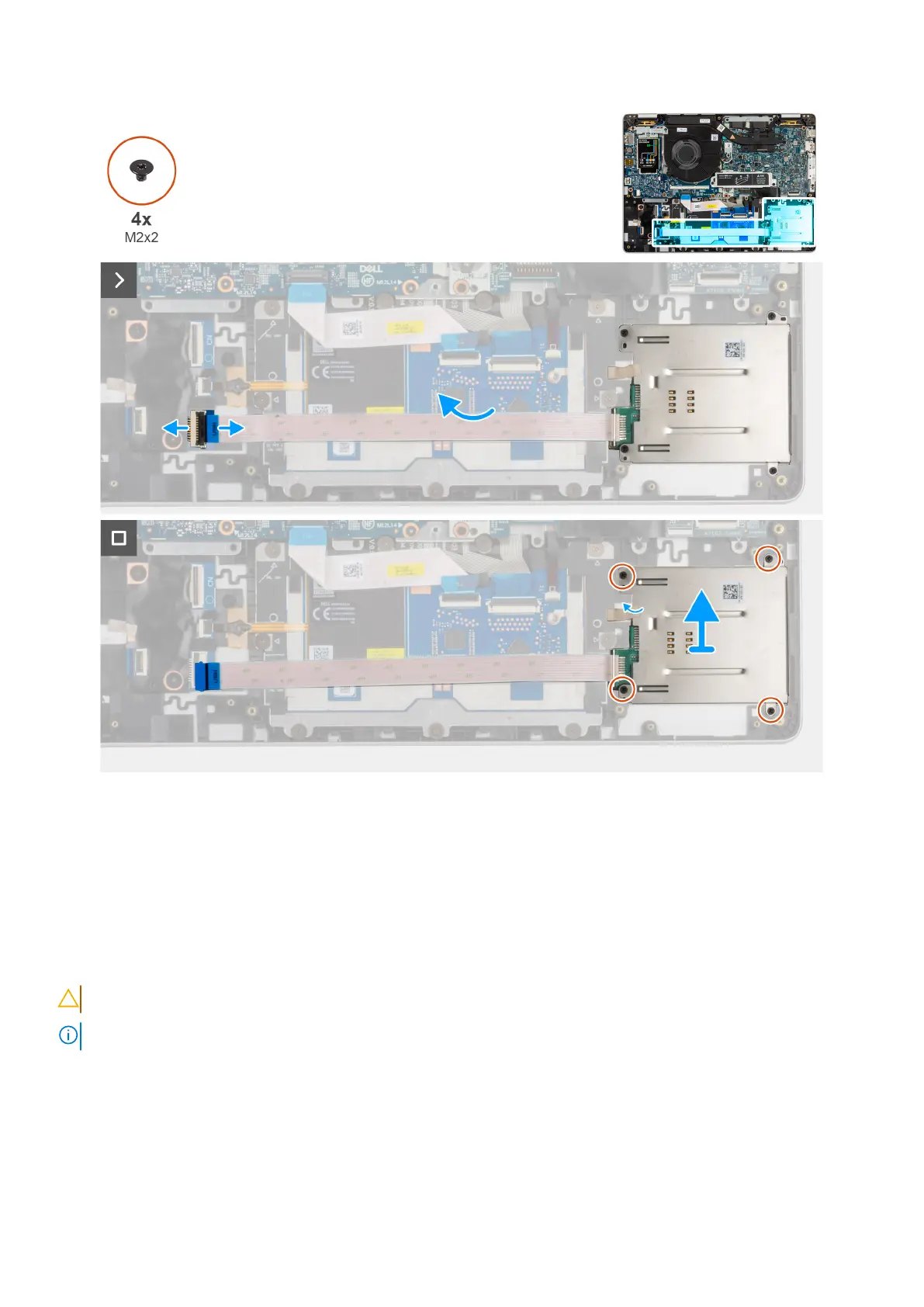

Figure 24. Removing the smart-card reader
Steps
1. Lift the latch and disconnect the smart-card reader cable from the connector on the USH board.
2. Remove the four screws (M2x2) that secure the smart-card reader to the palm-rest assembly.
3. Lift the smart-card reader, along with its cable, off the palm-rest assembly.
Installing the smart-card reader
CAUTION: The information in this installation section is intended for authorized service technicians only.
NOTE: The smart-card reader is available only on certain configurations.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
Removing and installing Field Replaceable Units (FRUs)
67
