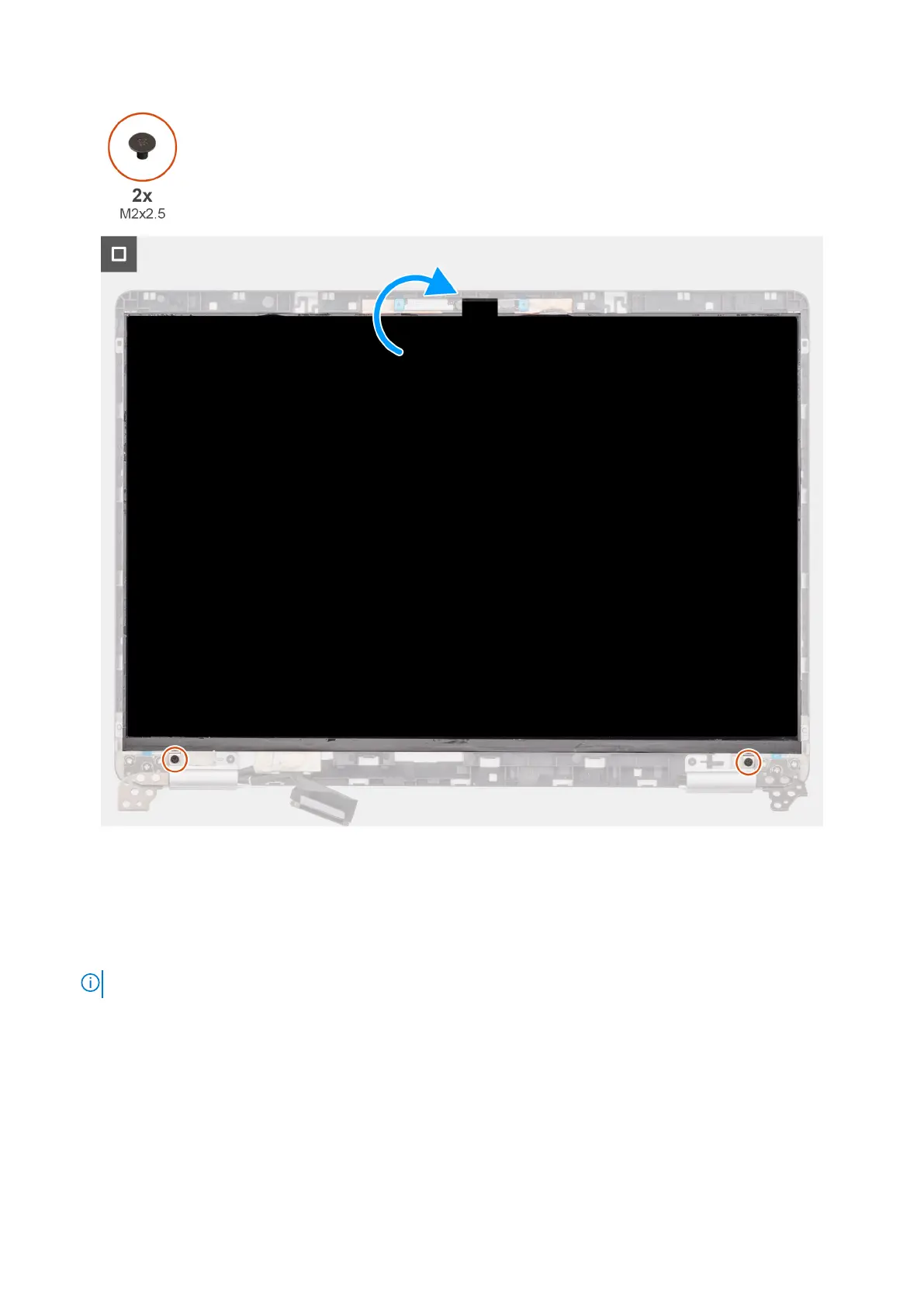

Figure 54. Installing the display panel
Steps
1. Connect the display cable to the connector on the display panel and close the latch.
2. Adhere the conductive tape to secure the display cable to the display panel.
3. Close the display panel and the display back cover to assemble.
NOTE: Ensure that the display panel tabs are inserted into the slots on the display cover.
4. Replace the two screws (M1.6x1.4) to secure the display panel to the display back cover.
Next steps
1. Install the display hinges.
2. Install the display bazel.
3. Install the display assembly.
4. Install the 5G WWAN card.
5. Install the base cover.
6. Install the SIM card (optional).
108
Removing and installing Field Replaceable Units (FRUs)
