About this task

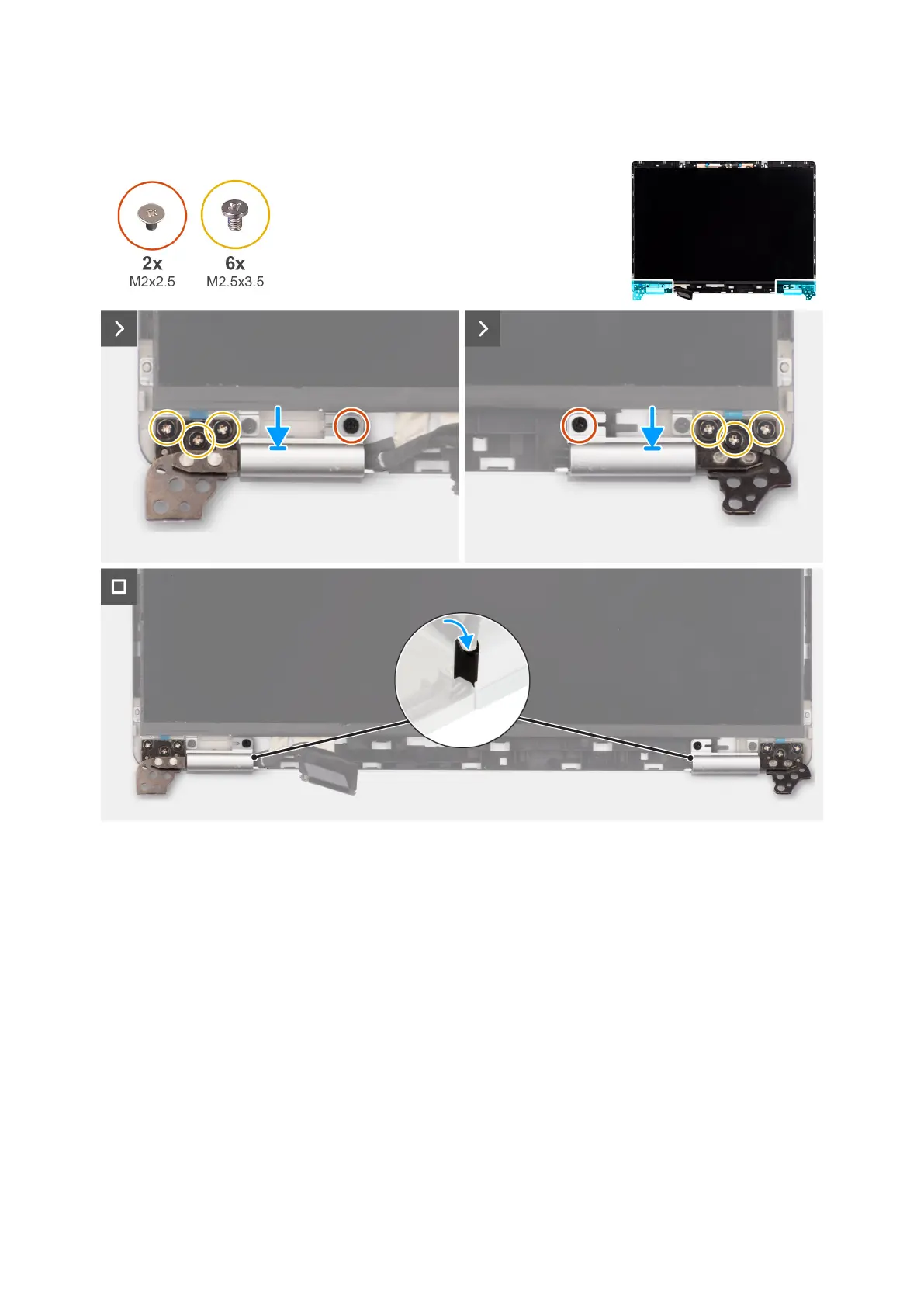

The following images indicate the location of the display hinges and provide a visual representation of the installation procedure.
Figure 50. Installing the display hinges
Steps
1. Align the screw hole on the left hinge with the screw hole on the display back cover.
2. Replace the screw (M2.5x3.5) that secures the left hinge to the display back cover.
3. Lift and attach the hinge cap securing the hinges on the display back cover.
4. Align the screw hole on the right hinge with the screw hole on the display back cover.
5. Replace the screw (M2.5x3.5) that secures the right hinge to the display back cover.
6. Lift and attach the hinge cap securing the hinges on the display back cover.
Next steps
1. Install the display panel.
2. Install the display bazel.
3. Install the display assembly.
4. Install the 5G WWAN card.
5. Install the base cover.
6. Install the SIM card (optional).
