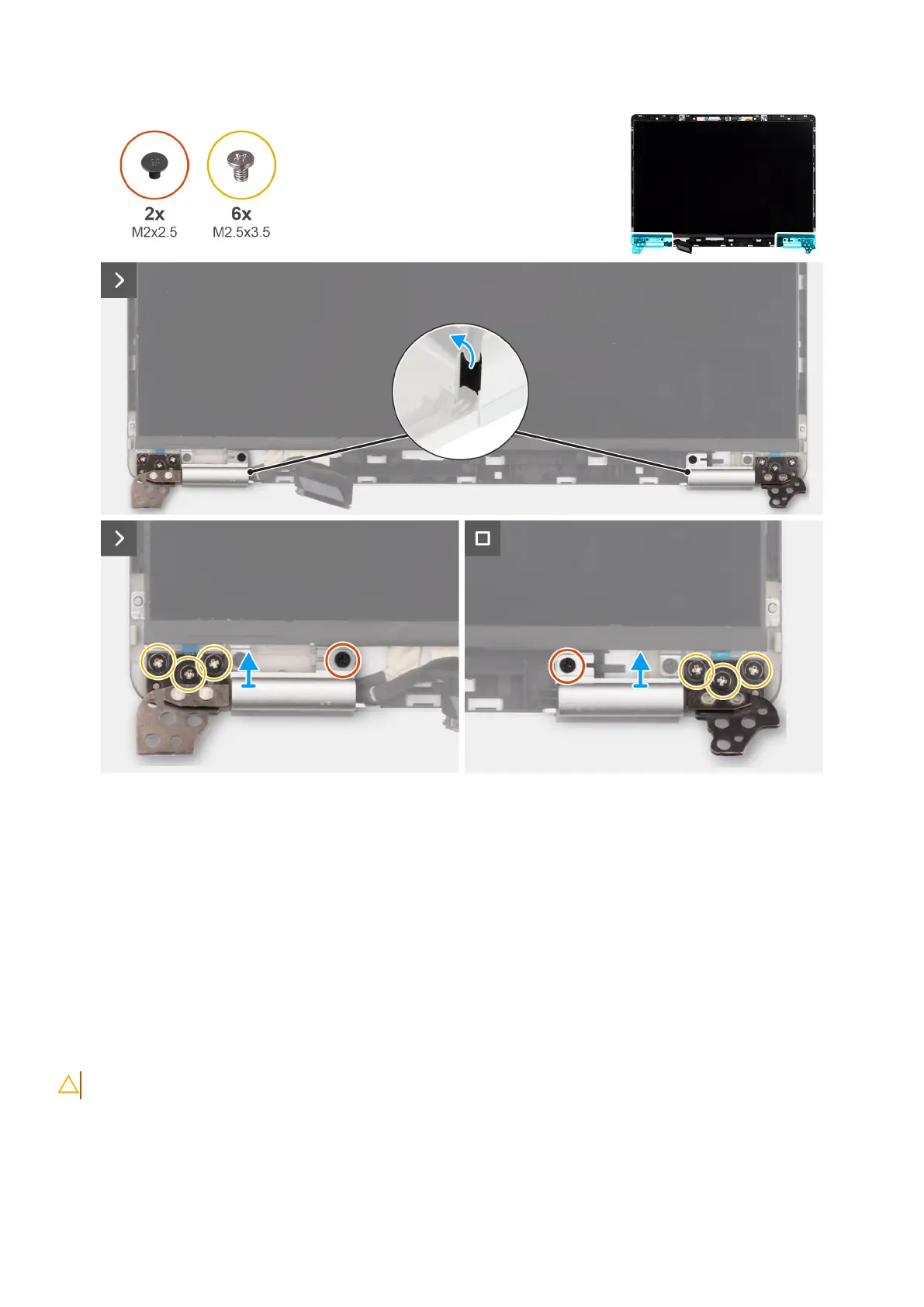

Figure 49. Removing the display hinges
Steps
1. Remove the three screws (M2.5x3.5) that secures the right hinge to the display back cover.
2. Lift and remove the hinge cap securing the hinges to the display back cover.
3. Lift and remove the right hinge from the display back cover.
4. Remove the hinge cap securing the hinge to the display back cover.
5. Remove the three screws (M2.5x3.5) that secures the left hinge to the display back cover.
6. Remove lift and remove the hinge cap securing the hinges.
7. Lift and remove the left hinge from the display back cover.
Installing the display hinges
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
102
Removing and installing Field Replaceable Units (FRUs)
