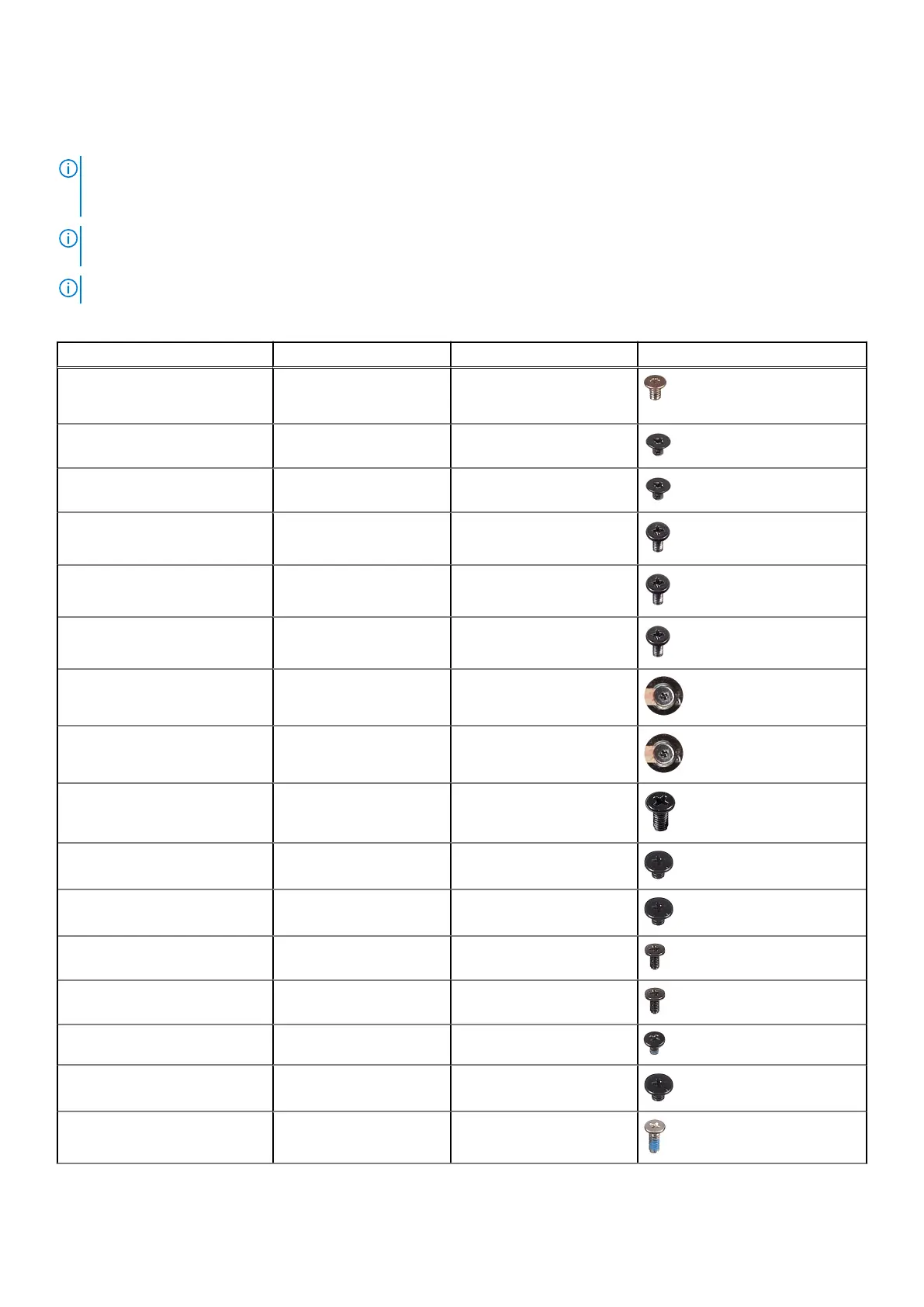

Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary depending on the configuration ordered.
Table 32. Screw listî
Component Screw type Quantity Screw image
Base cover
M2x3
(T5 Torx screw)
8
M.2 2230 solid state drive M2x2 2
M.2 2280 solid state drive M2x2 2
Battery
M2x4
6
Processor fan M2x4 2
Graphics-card fan M2x4 2
Heat sink (integrated graphics) Captive screws 3
Heat sink (discrete graphics) Captive screws 7
Display hinges M2.5x5 8
Display-FPC cable M1.4x4 (T5 Torx screw) 2
Display-FPC cover M1.4x4 (T5 Torx screw) 2
SD-card daughterboard M2x1.5 3
USH and SD-card
daughterboard
M2x1.5 4
Smart-card reader M1.6x1.7 2
Graphics-card FPC M1.4x4 (T5 Torx screw) 4
Graphics-card bridge M1.6x4.5 4
