Installing the power button with fingerprint reader assembly
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the power button with fingerprint reader and provides a visual representation of
the installation procedure.

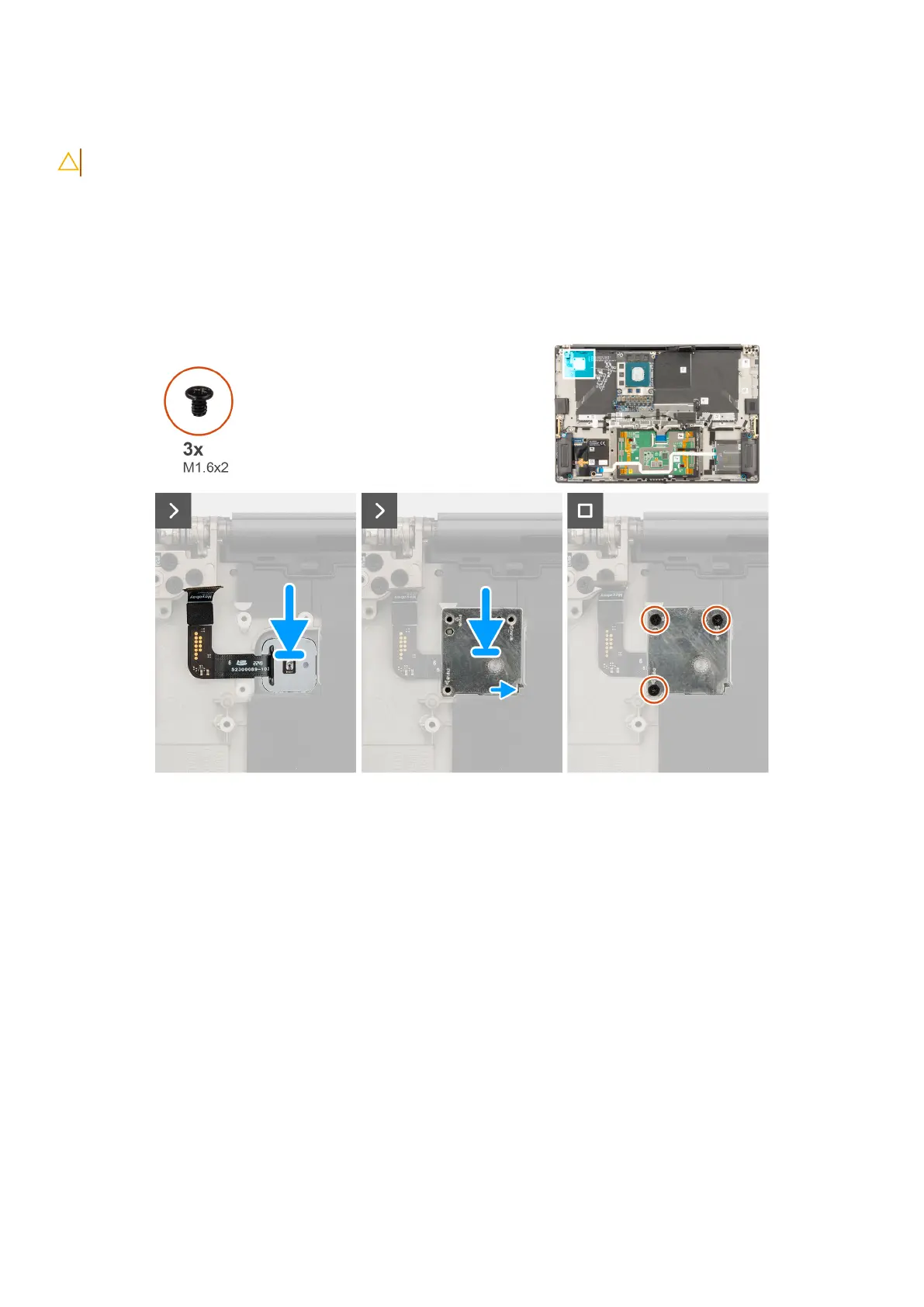

Figure 80. Installing the power button with fingerprint reader assembly
Steps
1. Align, place, and adhere the power button with the fingerprint reader assembly on the palm-rest assembly.
2. Place the power button with the fingerprint reader bracket on the power button assembly.
3. Replace the three screws (M1.6x2) to secure the power button with fingerprint reader in place.
Next steps
1. Install the system board.
2. Install the heat sink.
3. Install the graphics-card fan.
4. Install the processor fan.
5. Install the battery.
6. Install the M.2 2230 solid state drive or M.2 2280 solid state drive.
7. Install the base cover.
8. Install the SD card.
9. Follow the procedure in After working inside your computer.
