About this task
The following image indicates the location of the USH and SD-card daughterboard FPC and provides a visual representation of
the installation procedure.
NOTE: The following procedure is applicable for computers that are shipped with a USH and SD-card daughterboard FPC
only.

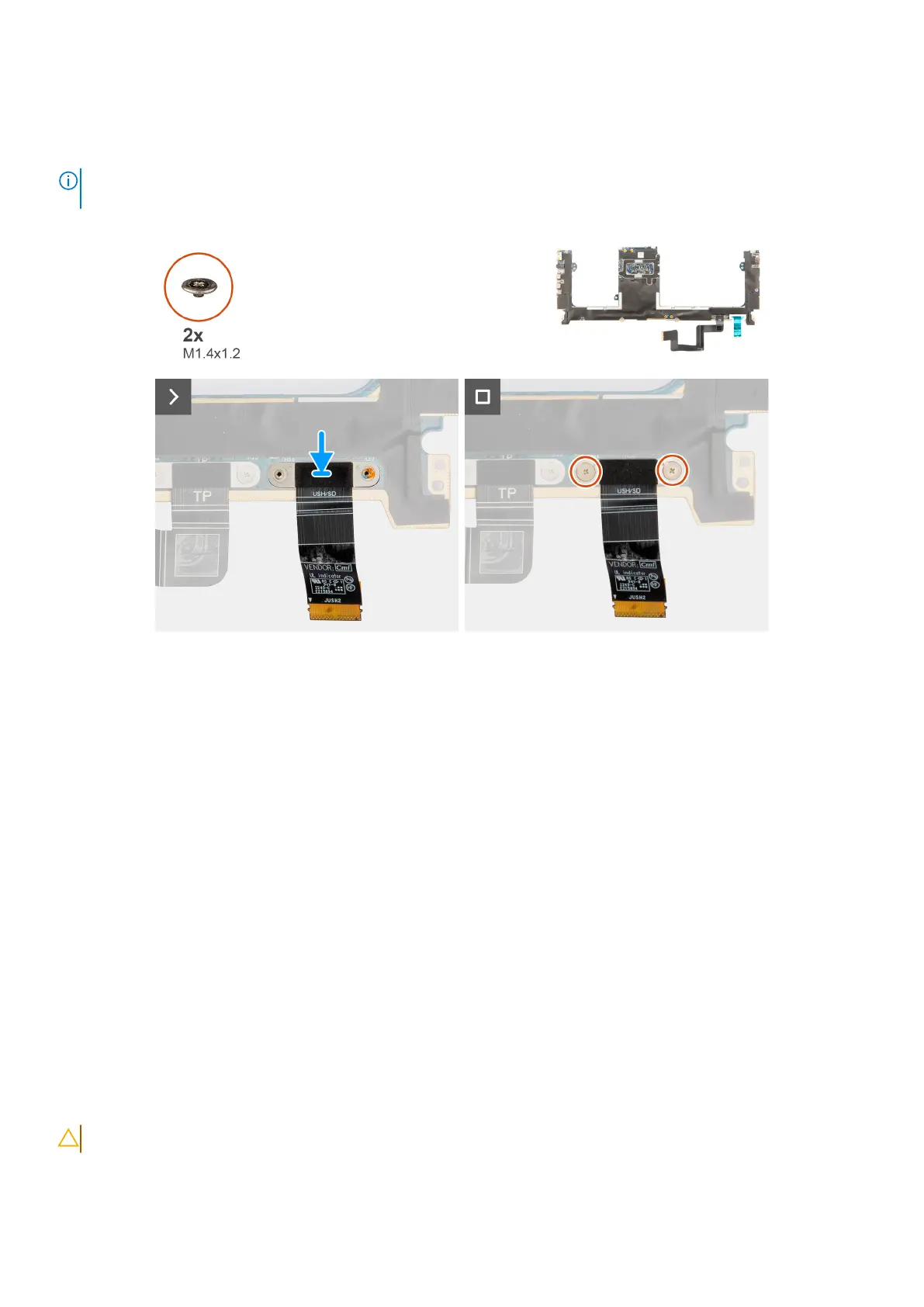

Figure 76. Installing the USH and SD-card daughterboard FPC
Steps
1. Align and place the USH and SD-card daughterboard FPC in place.
2. Replace the two srews (M1.4x1.2) to secure the USH and SD-card daughterboard FPC in place.
3. Connect the USH and SD-card daughterboard FFC cable to the connector on the system board.
Next steps
1. Install the system board.
2. Install the heat sink.
3. Install the graphics-card fan.
4. Install the processor fan.
5. Install the battery.
6. Install the M.2 2230 solid state drive or M.2 2280 solid state drive.
7. Install the base cover.
8. Install the SD card.
9. Follow the procedure in After working inside your computer.
Wireless Local Area Network (WLAN) Antennas
Removing the WLAN-antenna module
CAUTION: The information in this removal section is intended for authorized service technicians only.
