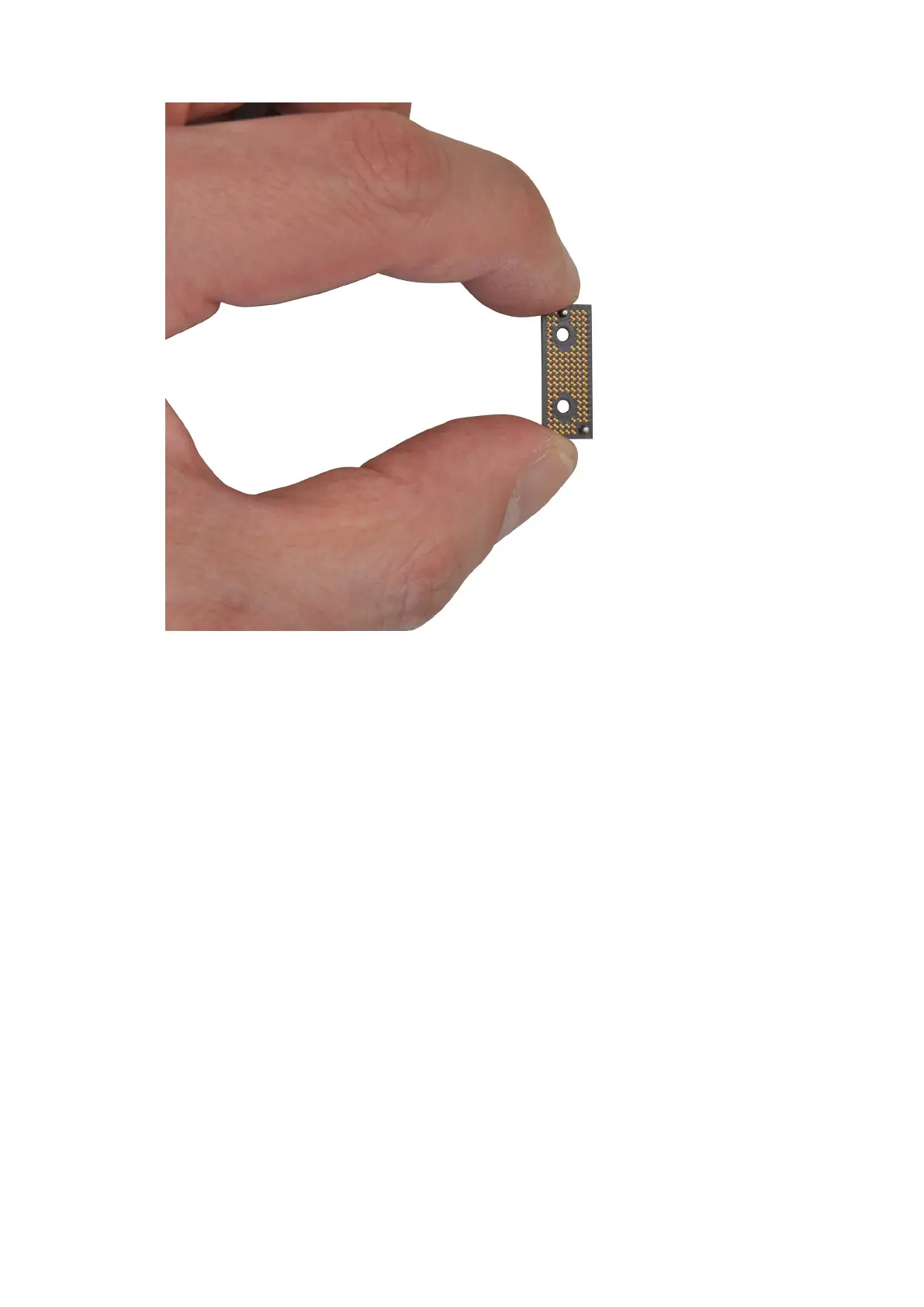

Figure 67. Interposer board
11. Connect the display-FPC cable to the connector on the system board.
12. Replace the two torx screws (T5, M1.4x4) to secure the display FPC in place.
13. Flip close the display-FPC cover.
14. Replace the two screws (M1.4x4) to secure the display-FPC cover in place.
15. For computers shipped with a WLAN card, route the antenna cables through the metal clips on the system board.
16. For computers shipped with a WLAN card, connect the antenna cables to the connectors on the WLAN module.
17. For computers shipped with a WLAN card, align and place the WLAN bracket on the system board.
18. For computers shipped with a WLAN card, tighten the captive screw to secure the WLAN bracket in place.
19. For computers shipped with a graphics card, align and place the graphics-card bridge on the system board.
20. For computers shipped with a graphics card, replace the four screws (M1.6x4.5) to secure the graphics-card bridge in place.
21. For computers shipped with a graphics card, align and place the two graphics-card FPC interposer boards on the system
board.
22. For computers shipped with a graphics card, align and place the graphics-card FPC from the system board.
23. For computers shipped with a graphics card, replace the four torx screws (T5, M1.4x4) to secure the graphics-card FPC in
place.
Next steps
1. Install the heat sink.
2. Install the graphics-card fan.
3. Install the processor fan.
4. Install the Battery.
5. Install the M.2 2230 solid state drive or M.2 2280 solid state drive.
6. Install the base cover.
7. Install the SD card.
Removing and installing Field Replaceable Units (FRUs)
101
