Steps
1. Align the notch on the 2280 solid-state drive with the tab on the solid-state drive slot.
2. Slide the 2280 solid-state drive firmly into the solid-state drive slot at an angle.
3. Align the screw hole on the solid-state drive with the screw hole on the palm-rest and keyboard assembly.
4. Replace the screw (M2x3) that secures the 2280 solid-state drive to the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Installing the solid-state drive mounting bracket on M.2 slot one
About this task

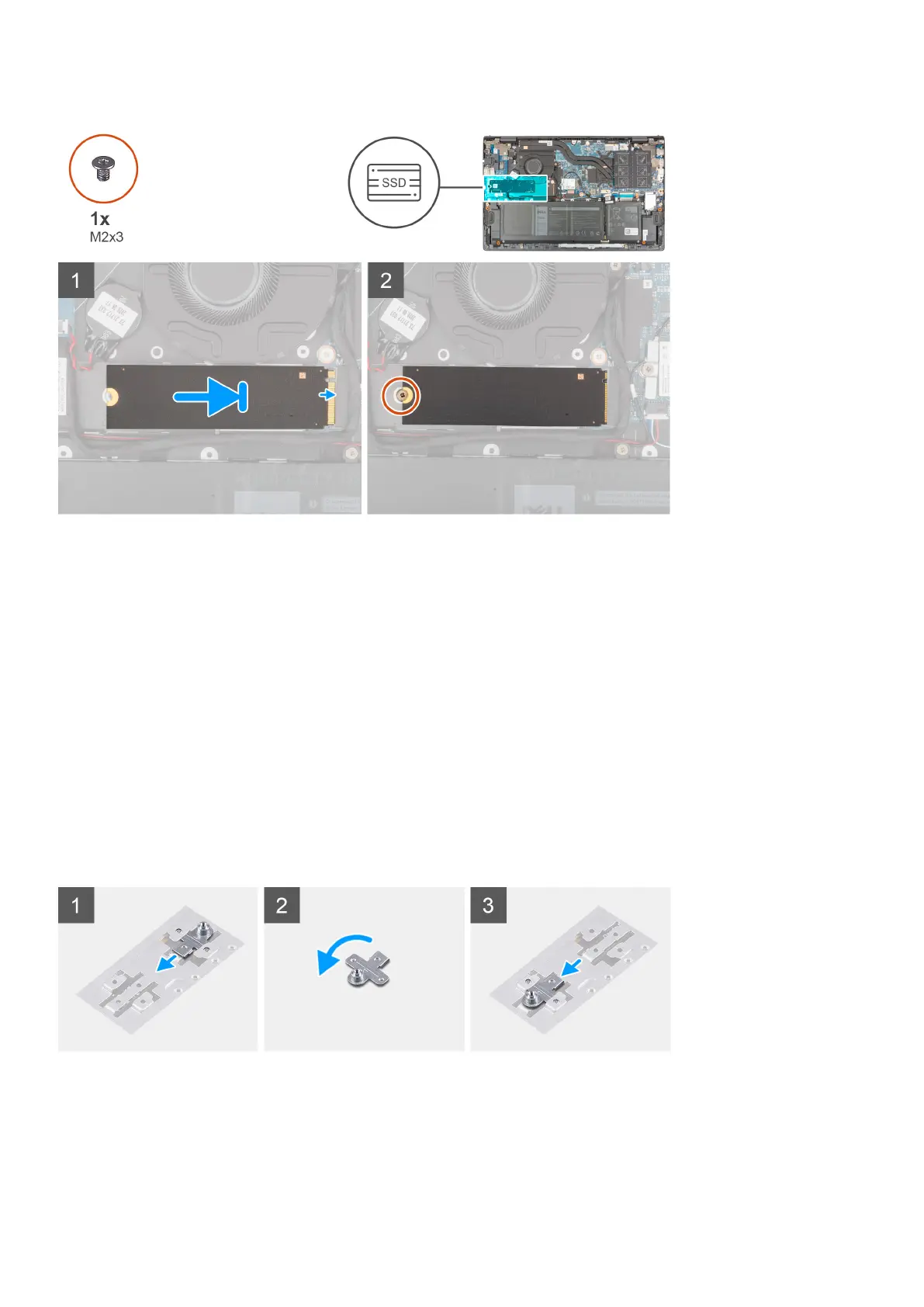

The following image provides a visual representation of the procedure to install the solid-state drive mounting bracket when
replacing M.2 2230 solid-state drive with M.2 2280 solid-state drive in M.2 slot one.
The following image provides a visual representation of the procedure to install the solid-state drive mounting bracket when
replacing M.2 2280 solid-state drive with M.2 2230 solid-state drive in M.2 slot one.
