About this task
NOTE: Depending on the configuration ordered, your computer may support a 2280 solid-state drive, or a 2230 solid-state
drive in M.2 slot one.
NOTE: This procedure applies only to computers shipped with a 2280 solid-state drive installed in M.2 slot one.

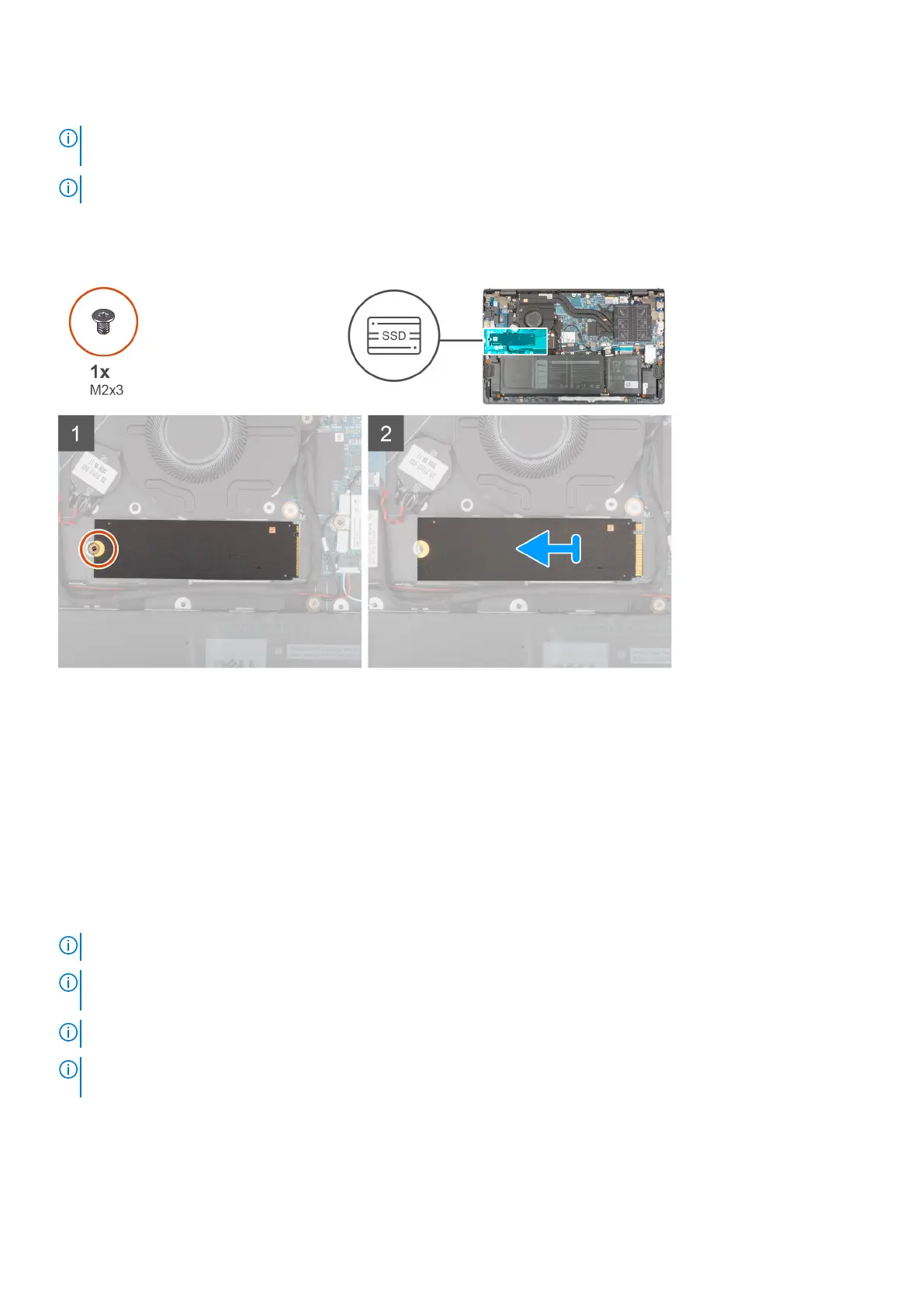

The following image indicates the location of the 2280 solid-state drive that is installed in M.2 slot one and provides a visual
representation of the removal procedure.
Steps
1. Remove the screw (M2x3) that secures the solid-state drive to the palm-rest and keyboard assembly.
2. Slide and lift the 2280 solid-state drive off the M.2 solid-state drive slot one on the system board.
Installing the 2280 solid-state drive in M.2 slot one
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
NOTE: Depending on the configuration ordered, the computer one may support a 2280 solid-state drive, or a 2230
solid-state drive in M.2 slot one.
NOTE: This procedure is applicable if you are installing a 2280 solid-state drive in M.2 slot one.
NOTE: Before installing your 2230 or 2280 solid-state drive, ensure that the mounting bracket is in the correct location. For
more information, see Installing the solid-state drive mounting bracket.
The following image indicates the location of the 2280 solid-state drive that is installed in M.2 slot one and provides a visual
representation of the installation procedure.
Removing and installing components
