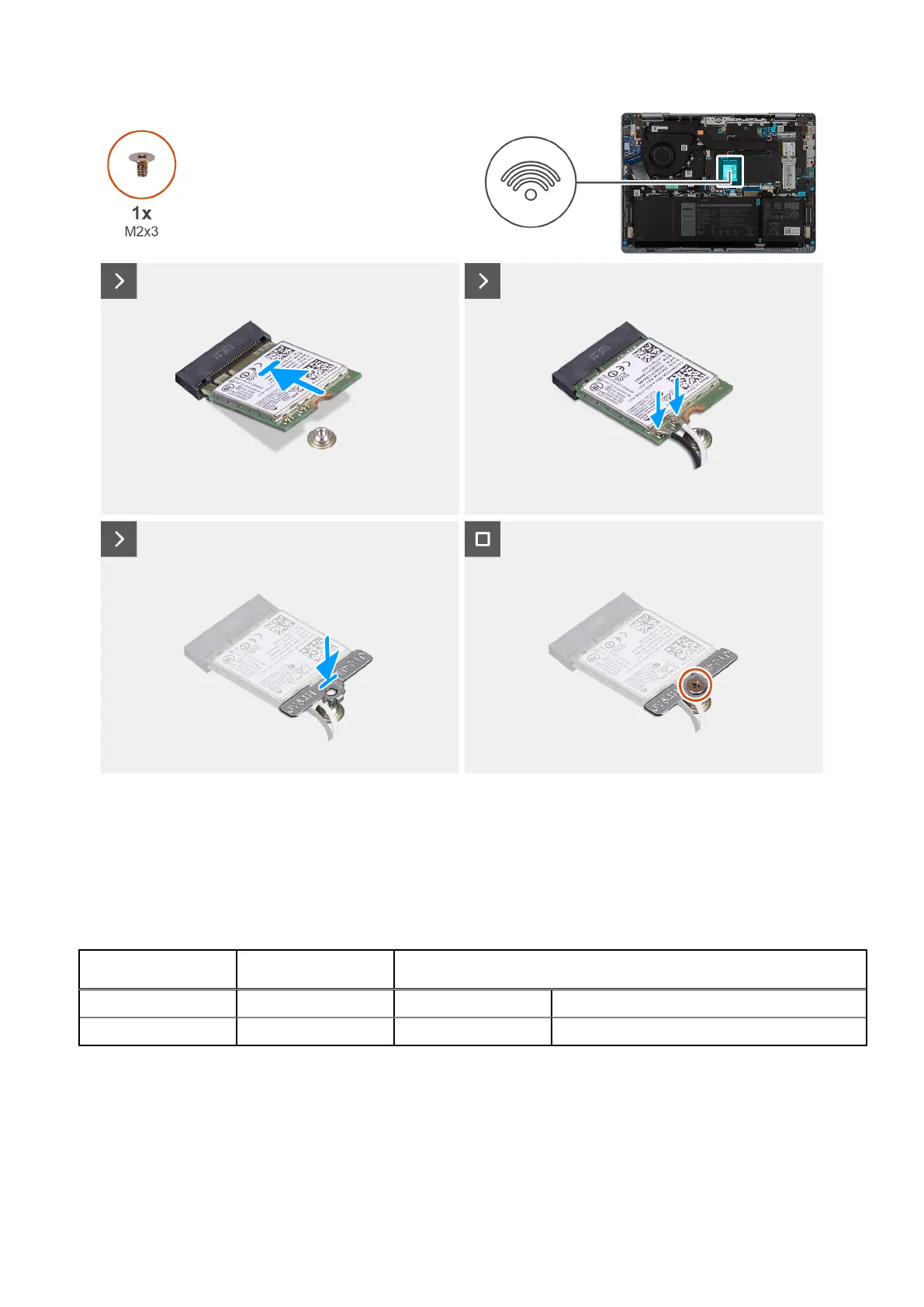

Figure 24. Installing the wireless card
Steps
1. Align the notch on the wireless card with the tab on the M.2 wireless-card slot (WLAN) on the system board.
2. Slide the wireless card into the wireless-card slot (WLAN) on the system board.
3. Connect the antenna cables to the wireless card.
Table 25.
Antenna-cable color scheme
Connector on the
wireless card
Antenna-cable color Silkscreen marking
Main White MAIN △ (white triangle)
Auxiliary Black AUX ▲ (black triangle)
4. Place the wireless-card bracket on the wireless card.
5. Align the screw hole on the wireless-card bracket with the screw mount on the system board.
6. Replace the screw (M2x3) that secures the wireless-card bracket to the system board.
Next steps
1. Install the base cover.
Removing and installing Customer Replaceable Units (CRUs)
47
