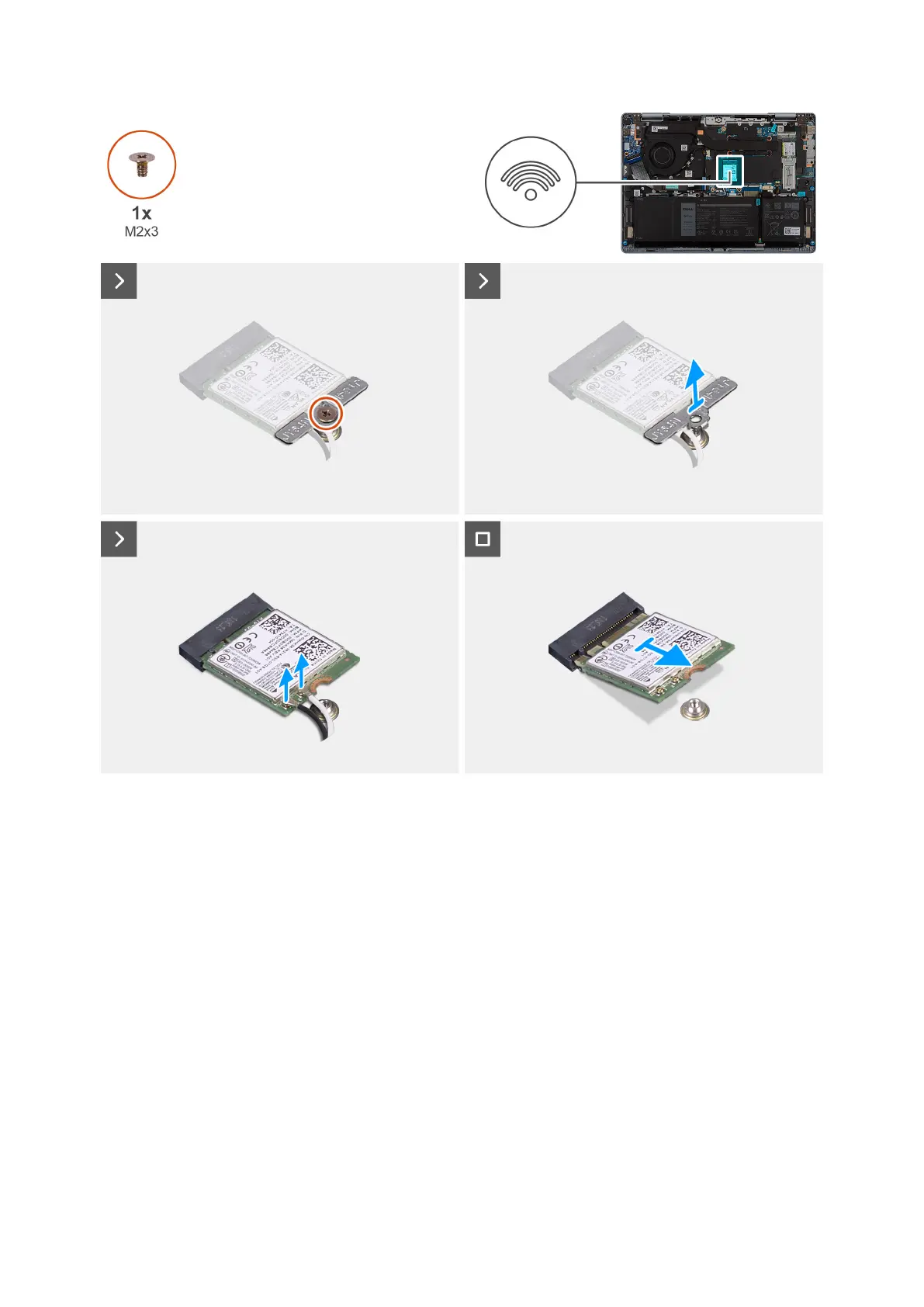

Figure 23. Removing the wireless card
Steps
1. Remove the screw (M2x3) that secures the wireless-card bracket to the system board.
2. Lift the wireless-card bracket off the wireless card.
3. Disconnect the antenna cables from the wireless card.
4. Lift the wireless card at an angle and slide the wireless card out from the wireless-card slot (WLAN) on the system board.
Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image indicates the location of the wireless card and provides a visual representation of the installation procedure.
46
Removing and installing Customer Replaceable Units (CRUs)
