About this task
NOTE: A M.2 solid state drive bracket for the M.2 2230 solid state drive is required. Do not install the M.2 2230 solid state
drive without its M.2 solid state drive bracket.

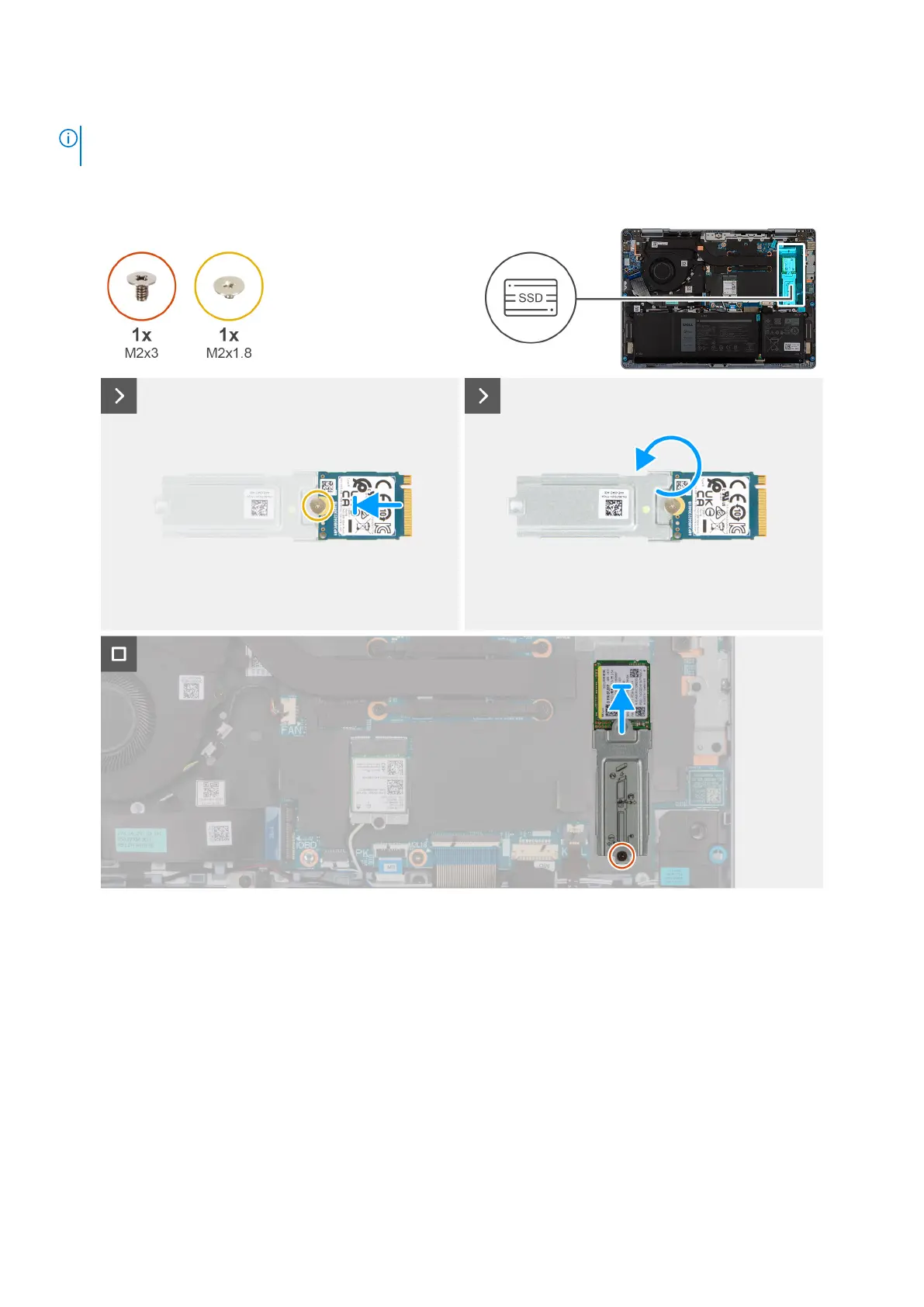

The following image indicates the location of the M.2 2230 solid state drive and provides a visual representation of the
installation procedure.
Figure 20. Installing the M.2 2230 solid state drive
Steps
1. Place the M.2 2230 solid state drive on the M.2 2230 solid state drive bracket.
2. Align the screw hole on the M.2 2230 solid state drive with the screw hole on the M.2 2230 solid state drive bracket.
3. Replace the screw (M2x1.8) that secures the M.2 2230 solid state drive to the M.2 2230 solid state drive bracket.
4. Flip over the M.2 2230 solid state drive assembly.
5. Align the notch on the M.2 2230 solid state drive with the tab on the solid state drive slot on the system board.
6. Slide the M.2 2230 solid state drive assembly into the M.2 solid state drive slot on the system board.
7. Replace the screw (M2x3) that secures the M.2 2230 solid state drive bracket to the system board.
Next steps
1. Install the base cover.
Removing and installing Customer Replaceable Units (CRUs)
43
