About this task
NOTE: A M.2 solid state drive bracket for the M.2 2230 solid state drive is required. Do not install the M.2 2230 solid state
drive without its M.2 solid state drive bracket.

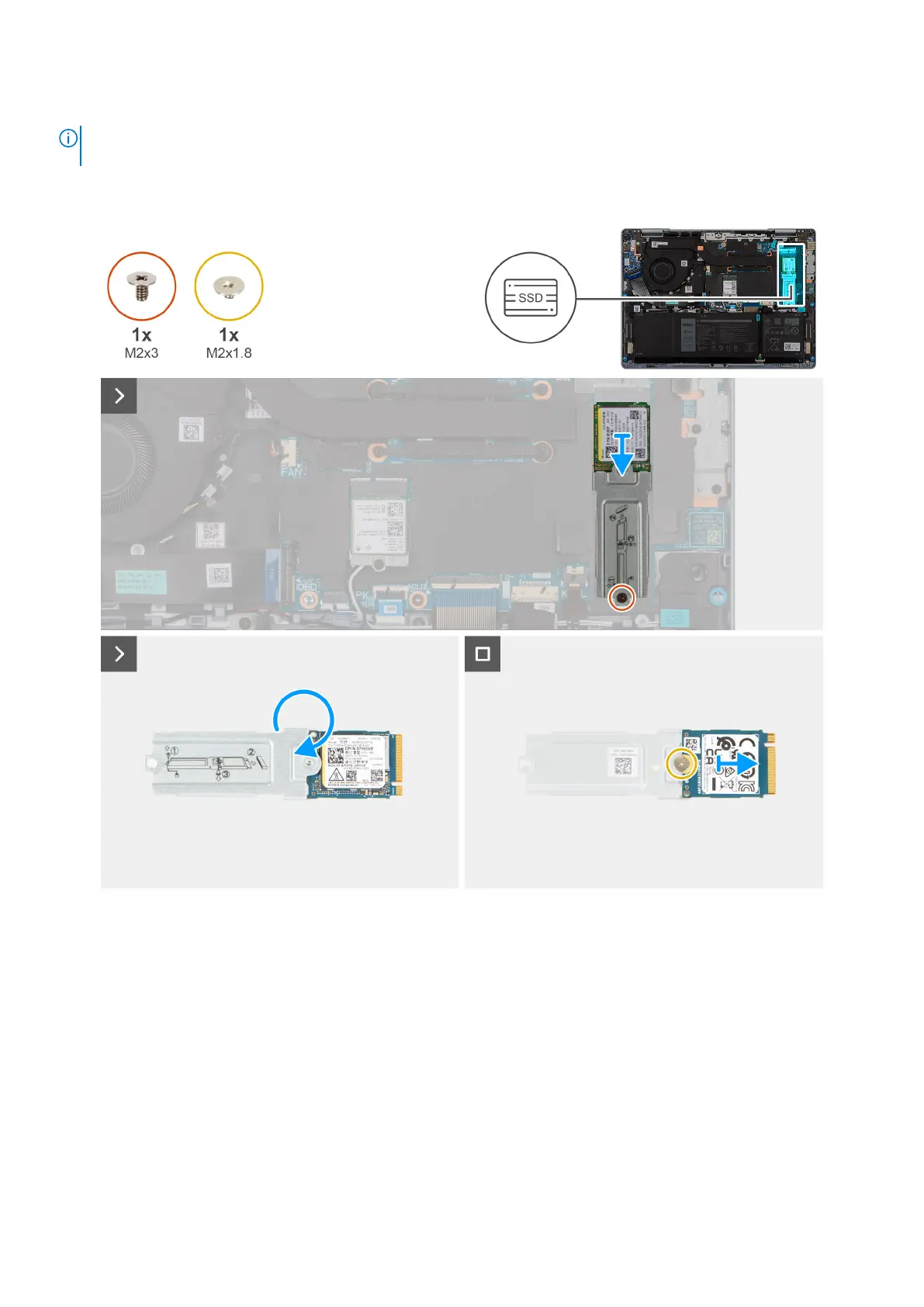

The following image indicates the location of the M.2 2230 solid state drive and provides a visual representation of the removal
procedure.
Figure 19. Removing the M.2 2230 solid state drive
Steps
1. Remove the screw (M2x3) that secures the M.2 2230 solid state drive bracket to the system board.
2. Lift at an angle and slide the M.2 2230 solid state drive assembly from the M.2 solid state drive slot on the system board.
3. Flip over the M.2 2230 solid state drive assembly and place it on a flat surface.
4. Remove the screw (M2x1.8) that secures the M.2 2230 solid state drive to the M.2 2230 solid state drive bracket.
5. Remove the M.2 2230 solid state drive from the M.2 2230 solid state drive bracket.
Installing the M.2 2230 solid state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
42
Removing and installing Customer Replaceable Units (CRUs)
