Part Number: 9291458 11/17 27
Section 2 Installation

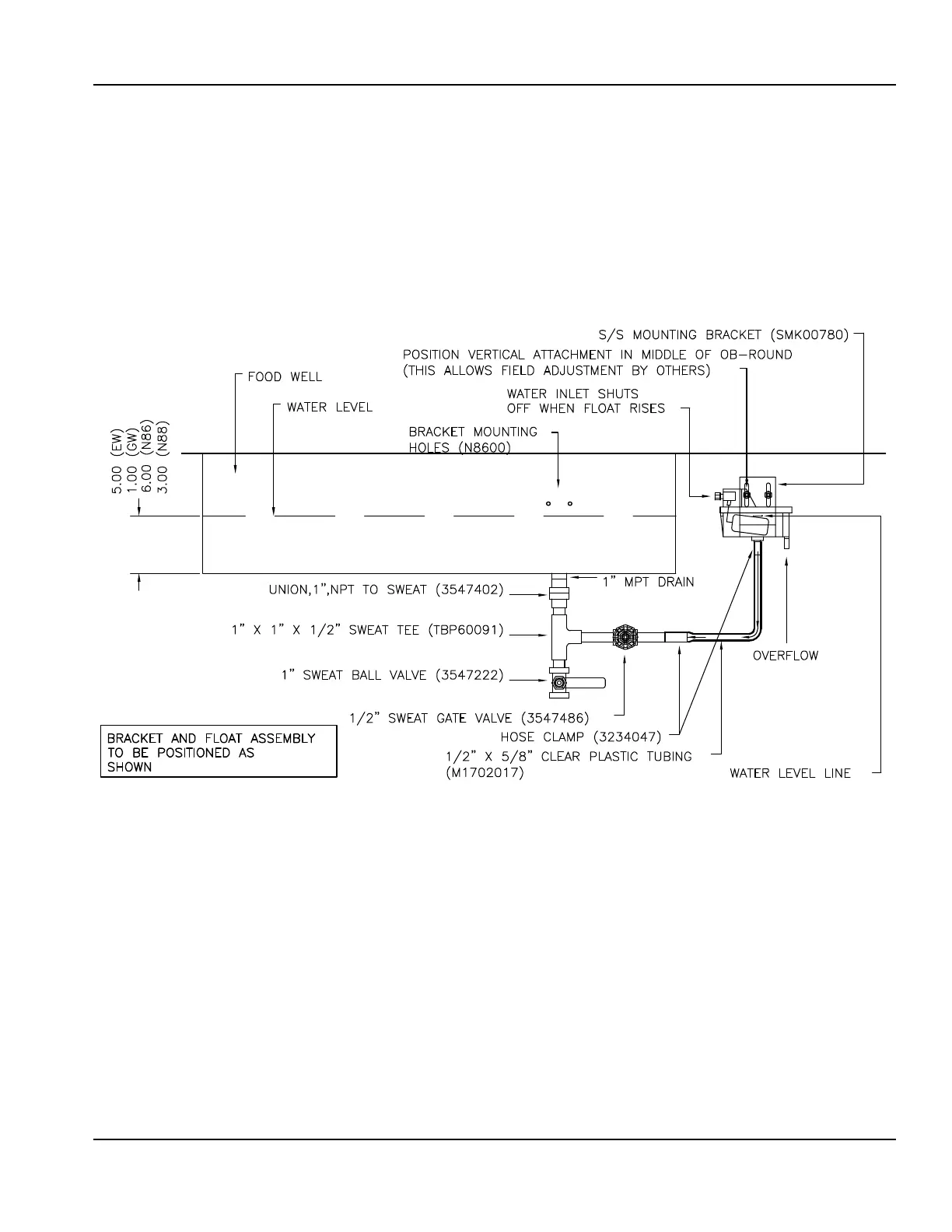

Optional Auto Fill Installation
• Option is a loose parts kit. Installation requires a plumber.
APPLICABLE TO N8600 & N8800 MODELS
1. Locate mounting holes on outside operator drop-in body and mount float and bracket using thumb screws.
2. Install drain plumbing as shown.
3. Connect clear plastic tubing to 1/2” copper stub and connect to the float. Use hose clamps to secure.
4. Connect fill line to 1/4” compression fitting.
5. Loosen thumb screws to achieve desired water level.
NO CONNECTION
NEEDED
