Part Number: 9291458 11/17 19
Section 2 Installation

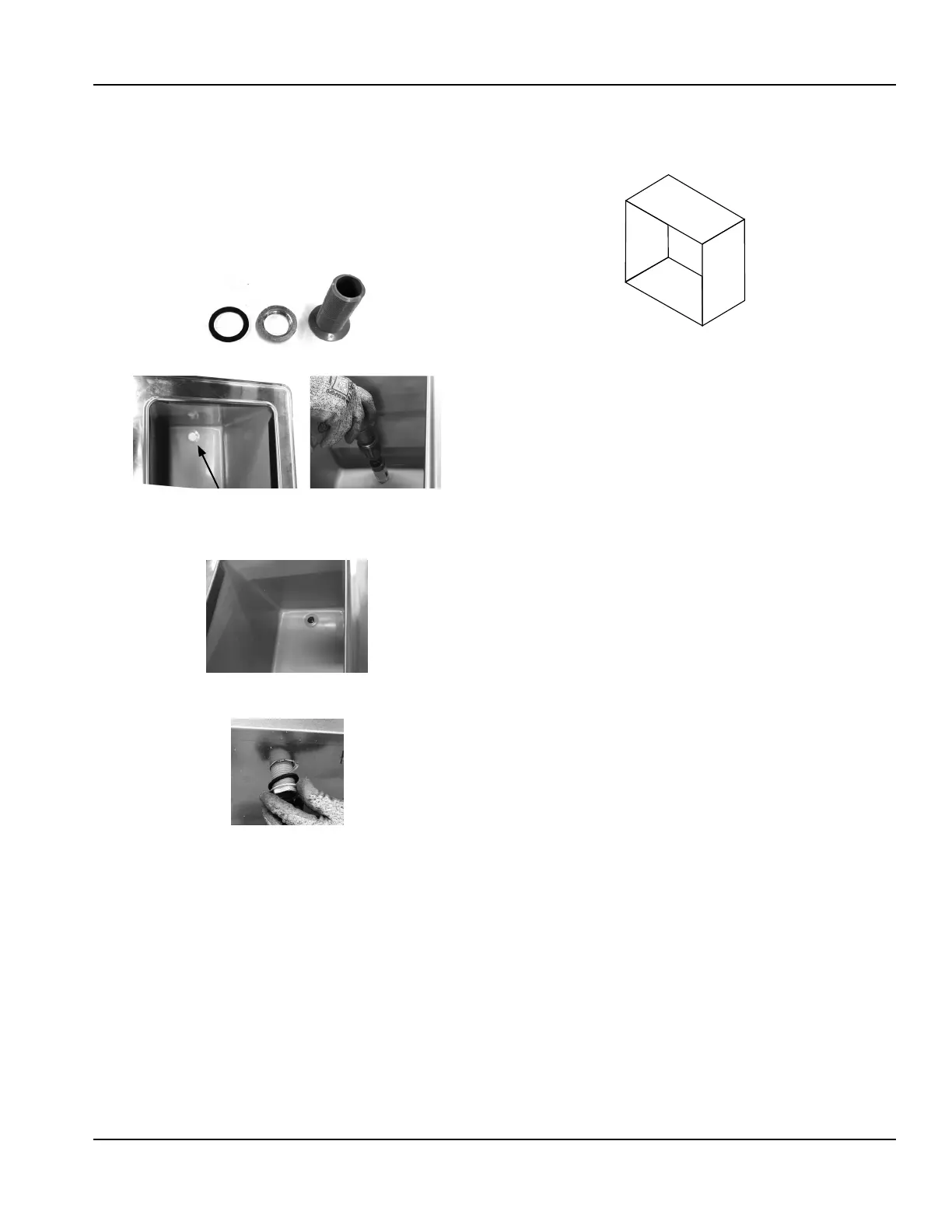

7. The 1” diameter drain on N8100B, N8100-BR and
N8100NB models is shipped loose and must be
connected during installation.
A. Provided 1” (25mm) drain, nut and washer must
be field installed to an appropriate container or
floor drain following local code requirements.
Sinks come standard with 1-1/2” basket strainer
assemblies.
B. Remove/drill foam out of drain hole.
C. Apply thin ring of plumbers putty around the
drain.
D. From the inside drop the drain into the drain hole.
E. From the outside secure the drain with the washer
and nut.
F. Tighten the nut with channel locks, use a fork to
hold the drain in place if necessary.
G. Clean up excess plumbers putty.
8. Construct an air duct (not provided) connecting
the condenser face to the louver. This will prevent
recirculation of discharge air.
11.00”
(28cm)
Counter Cutout Dimensions
22.0” (56cm)
8.00”
(20cm)
11.00” (28cm)
Air duct dimensions
to match condenser face
Are Model Specic
