20 Part Number: 9294997A 09/21
Installation Section 2
Step 2. Remove (2)
screws from control
box cover and remove
cover, save cover and
screws. Find freezer
condenser fan motor
cord and follow cord
back into the control
box.
STEP 3. Remove the bushing strain relief from the side of
the control box that holds the wiring that passes down
the rear vertical chase.
Pass the end of the jumper harness with piggyback
insulated terminal connectors through the bushing
strain relief until the protective sleeve can be secured
by the bushing strain relief. Re-mount the bushing
strain relief back into the side of the control box.
Step 4. Inside of control box, unplug the female freezer
condenser fan motor cord connections from the main
harness. Plug into the male fully insulated terminals
from the jumper harness into the main harness where
the freezer condenser fan motor cord connections were
previously at, black to black and white to white. View
wiring diagram on last page for pre and post wiring
example.
Re-mount control box cover on top of control box with
same screws.

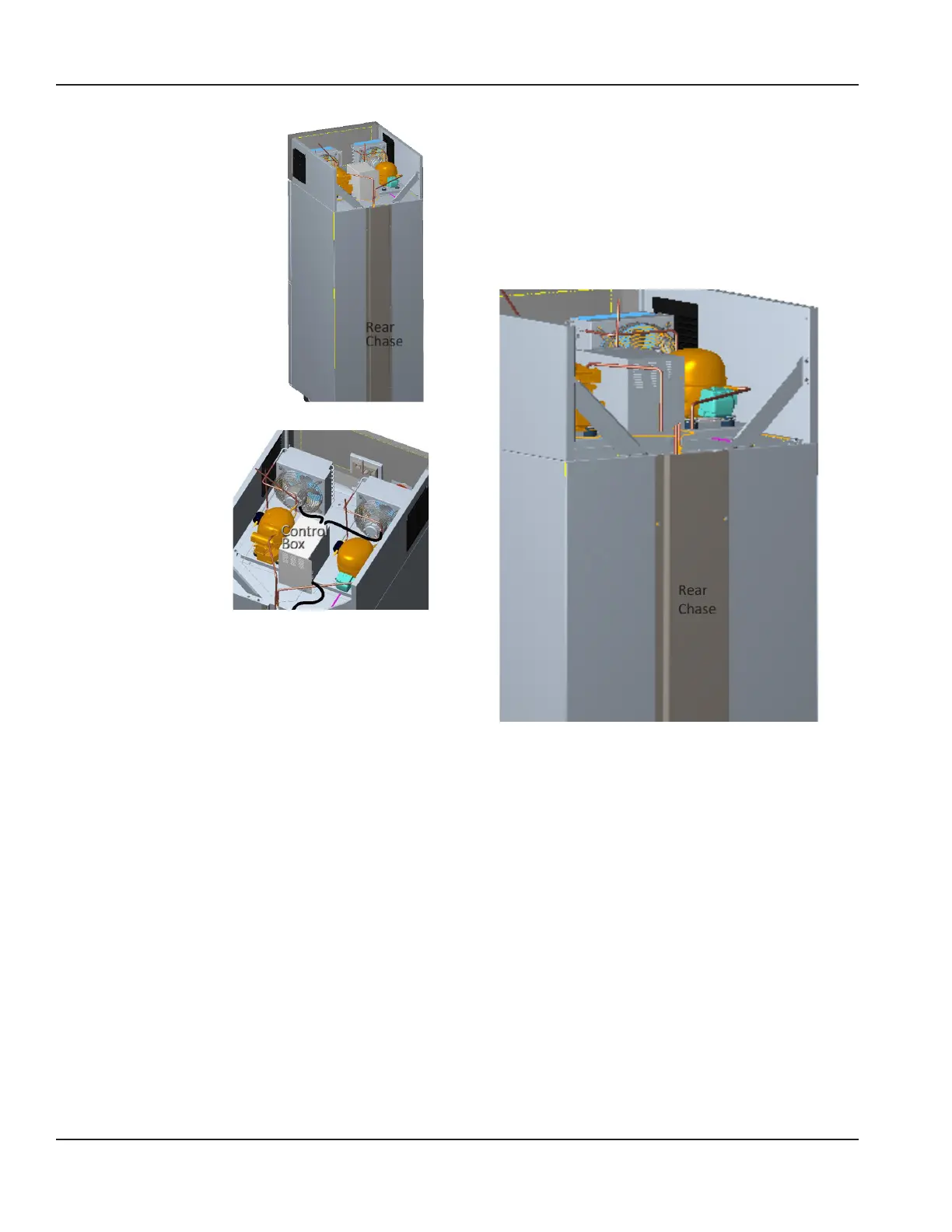

Step 1. Remove (6) screws holding
vertical rear chase on back
of unit and remove chase.
Save screws, chase can be
discarded.
Rear
Chase
Control
Box
Control
Box
Control
Box
STEP 7. At the bottom of the cabinet, align the
galvanized horizontal chase to the rear vertical chase
and mount with (2) self-drilling screws. The drain
tube should pass through the open notched area
at the bottom of the vertical rear chase and bend
through the horizontal chase. Plug the cord from
the condensate evaporator heating element which is
mounted in the evaporator pan into the receptacle
that is mounted in the bottom bend of the rear
vertical chase.
STEP 5. Route the jumper harness down the vertical raceway
at the rear center of the unit. Locate the black harness
that is mounted into the bottom bend of the new vertical
rear chase and connect the stripped wires into the Wago
nuts on the jumper harness.
STEP 6. Mount the newly provided rear chase with the (6)
screws that held the previous rear vertical chase.
Rear
Chase
