26 Part Number: 9291468 09/17
Maintenance Section 4

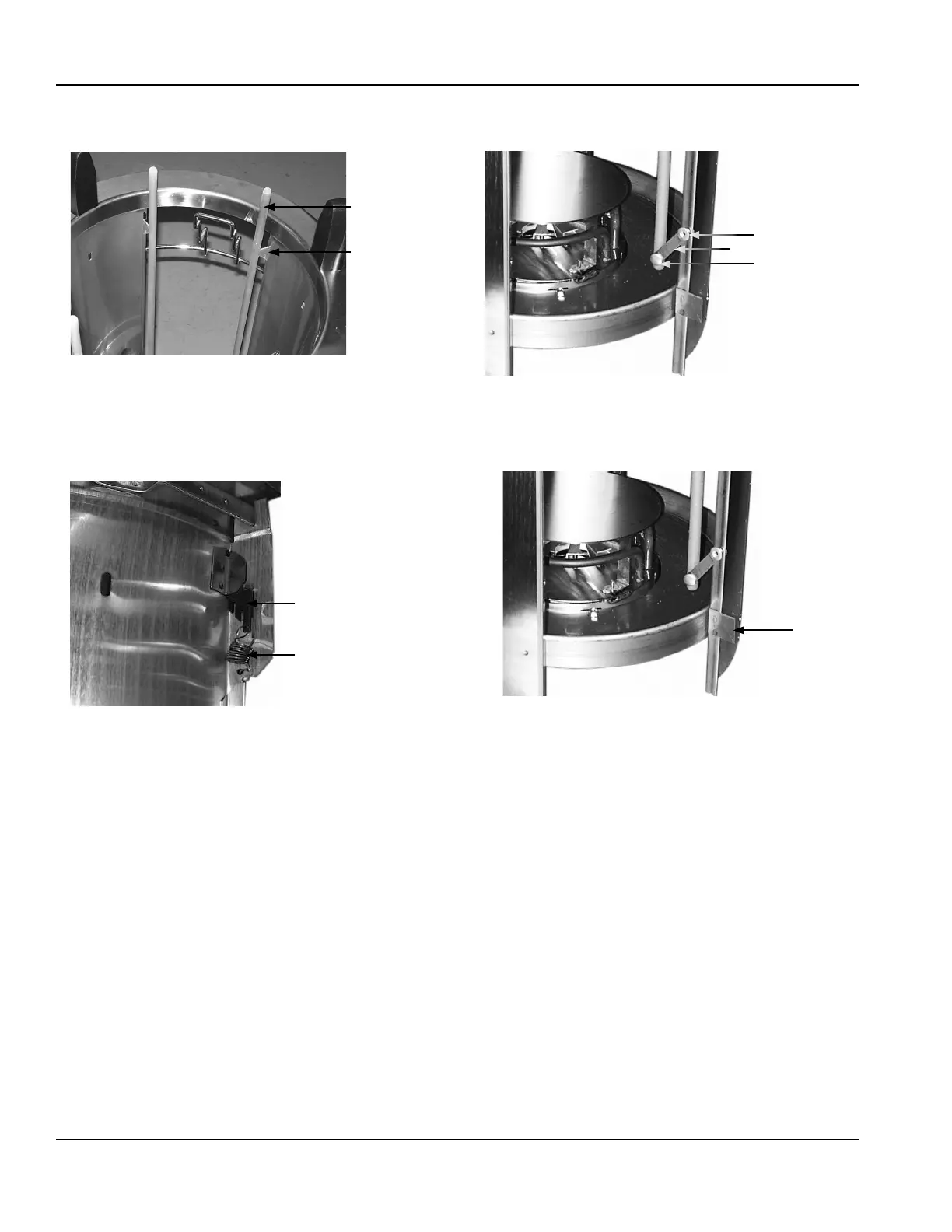

7. Add four Non-Marring Rods per unit; the top of the rod
has a jagged extension.
Rod
Jagged
Extension
8. Insert the jagged extension into the slotted holes
towards the top of each DIS inner panel.
9. Using small springs, insert the top of the spring into
the small hole at the end of the jagged extension. The
other end will go into a small hole directly below it on
the DIS panel.
Small Spring
Jagged Extension
10. Install large screw in the bottom of the non-marring
rod and attach the pivot extension by using the female
screw sleeve.
11. Install small screw at the opposite end of the pivot
extension and attach to the bottom of the inner panel.
Small screw
Pivot Extension
Large screw
12. Reattach all springs and new Wire Head.
13. Install new Spinning Head onto the Wire Head.
14. Bend back tabs or install new tabs 3.25” up from the
bottom if necessary.
Tab
15. If applicable reinsert DIS into base and re-connect
power.
