22 Part Number: 9291468 09/17
Maintenance Section 4

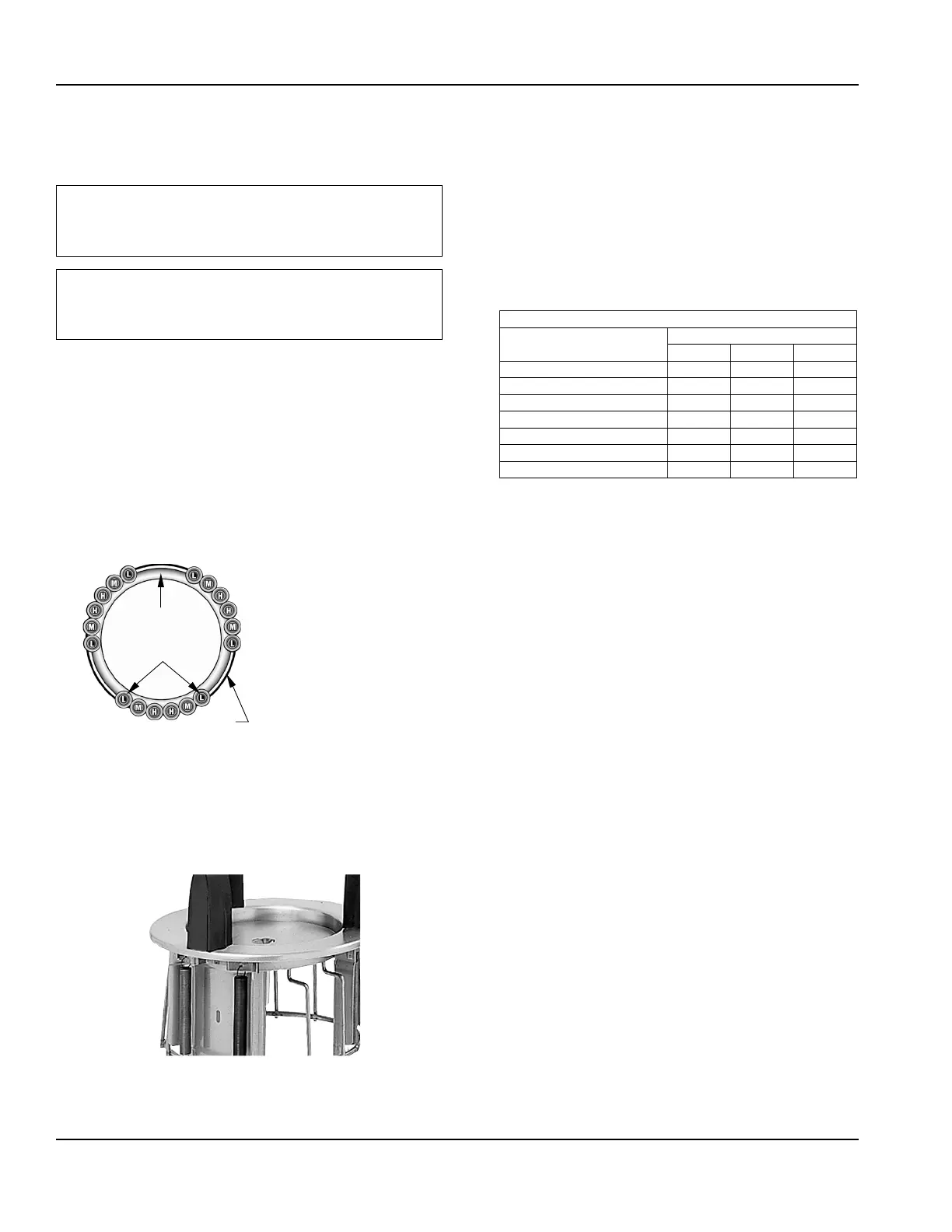

Dish Dispenser Field Adjustment
The dispensing height may be adjusted; follow the below
instructions.
n
Warning
Wear safety glasses when adjusting your dispenser.
Springs under tension may recoil when released.
n
Warning
If adjusting a heated model, unplug the unit. Allow the
unit to cool completely before handling.
1. Lock brakes on mobile units before beginning.
2. Unload the dispenser. Remove dispensers from the unit
by grasping the black plastic guide posts and lifting the
dispenser completely out of the unit.
3. There are minimum of six springs per dispenser.
When adjusting, make sure each section has the same
number and size of springs connected to the tube and
make sure the springs are attached in the same order in
each section. This will prevent the load of dishes from
binding.
Tube
Frame
Carrier
Bracket
Springs
H = High Tension Spring
M = Medium Tension Spring
L = Low Tension Spring
Typical example of spring placement.
Note that each of the three sections has
the same number and type of springs and
that the springs are installed in the same
order in each section.
4. If the dispensing height is too low, add springs or
replace current springs with higher tension springs
(springs with higher tension can be ordered). Gently
engage one spring at a time by hooking the top loop
of the spring into the bracket on the tube frame. Then
hook the bottom loop of the spring into the carrier
bracket. Add as many springs as necessary.
Dish Dispenser Spring Attachments
5. If the dishes are resting too high in the unit, remove
springs or replace current springs with lower tension
springs (springs with lower tension can be ordered).
Gently disengage one spring at a time, unhooking
the bottom loop out of the carrier bracket first, the
unhooking the top loop from the tube frame. Remove
as many springs as necessary.
6. If level is appropriate, return tube to cart or counter. If
spring adjustment does not position carrier properly,
repeat procedure trying different springs. If this does
not work, a different set of springs should be ordered.
Spring Requirements
Model
Spring Tension
Light Medium Heavy
DIS-500, 575, 650 3 3 0
DIS-725 0 6 0
DIS-813 3 3 3
DIS-913 3 6 3
DIS-1013 6 6 3
DIS-1200 6 6 6
DIS-1450 6 6 6
