4
Caution!!! The minimum permissible connection load impedance at every single channel is 2 Ohm. For bridged connection is 4 Ohm.
For model MLA-80.4 XS the operating voltage is 9-15V.
min. 4 Ohm
2
Use the table below to select the desired diameter based
on the length and the current consumption.
Use the table below to select the desired diameter based
on the length and the power consumption.
Selection of the diameter of the power cables
Selection of the diameter of the speaker cables
EN

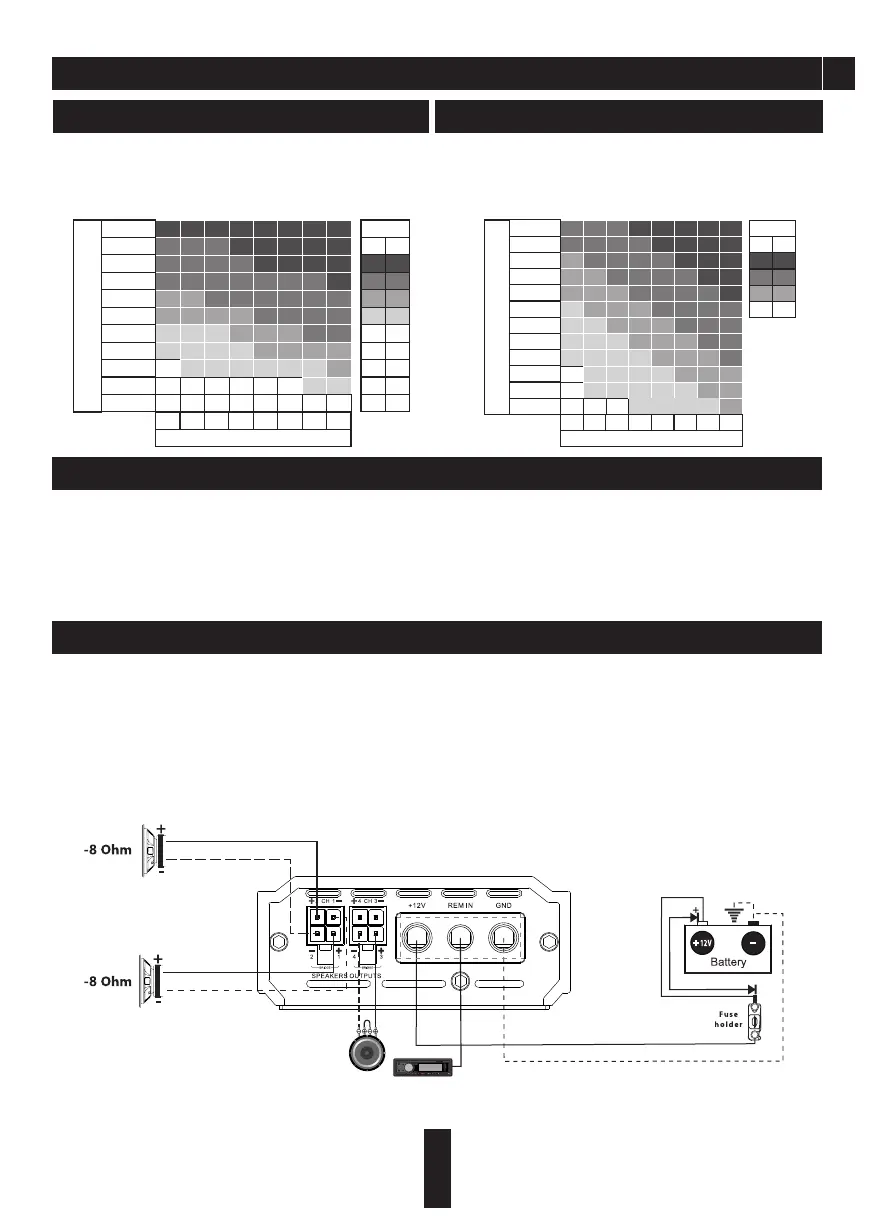

4. SELECTION OF THE DIAMETER OF POWER CABLES AND SPEAKER CABLES
240-350
180-240
150-180
120-150
100-120
80-100
60-80
40-60
20-40
8-20
0-8
0-1 1-2 2-3 3-4 4-5 5-6 6-7 7-8
53,5
33,6
21,2
8,4
5,3
3,3
2,1
1,3
0,8
1/0
2
4
8
10
12
14
16
18
A.W.G
mm²
Diameter
Cable length (m)
Consumption current (А)
20 000
25 000
15 000
10 000
8000
6000
4000
2000
1000
500
250
100
0-1 1-2 2-3 3-4 4-5 5-6 6-7
Cable length (m)
Power consumption (W)
7-8
16,8
8,37
5,26
2,08
5
8
10
14
A.W.G
mm²
Size
EN
5. WIRING DIAGRAMS
Standard wiring diagram of four-channel amplifier to two speakers, to one subwoofer and to battery
Step 1. Connect the speaker cable from (+) terminal of the amplifier to (+) terminal of the speaker.
Step 2. Connect the speaker cable from (-) terminal of the amplifier to (-) terminal of the speaker.
Step 3. Repeat the installation sequence for each speaker step 1 and step 2
Step 4. Connect the speaker cable from (+) terminal of the amplifier to (+) terminal of the subwoofer.
Step 5. Connect the speaker cable from (-) terminal of the amplifier to (-) terminal of the subwoofer.
Step 6. Connect one end of the power cable from (+) terminal of the battery and the second end to the amplifier terminal
marked with + 12V. Do not forget to protect positive power cable with appropriate fuse.
Step 7. Connect one end of the power cable from (-) terminal of the battery and the second end of the grounding cable to
the terminals marked with GND.
Step 8. Connect one end of the cable to the Remote output terminal at the HU and the second end to the amplifier terminal
marked with REM IN.
not more than 40 cm
Connect the speaker cables from the positive and negative terminals of the speakers to the respective outputs of the
amplifier terminal marked with CH1 / CH2, CH3 / CH4, SPEAKERS OUTPUTS as shown at the diagram. To connect the power
wire supply it is necessary to use special power cables. The fuse is placed in the holder and fixed in the cable cut. One end
of the cable is connected to the positive terminal of the battery, the second one – to the amplifier terminals marked with
+12V. Be sure to use a fuse with the parameters sufficient for use in the system. The length and diameter of the grounding
cable must conform to the length and diameter of the cable +12V. Connect one end to the negative terminal of the battery
and the other end of the grounding cable to the terminals marked with GND. Connect the head unit (HU) to low-level inputs
of the amplifier using RCA cable.
