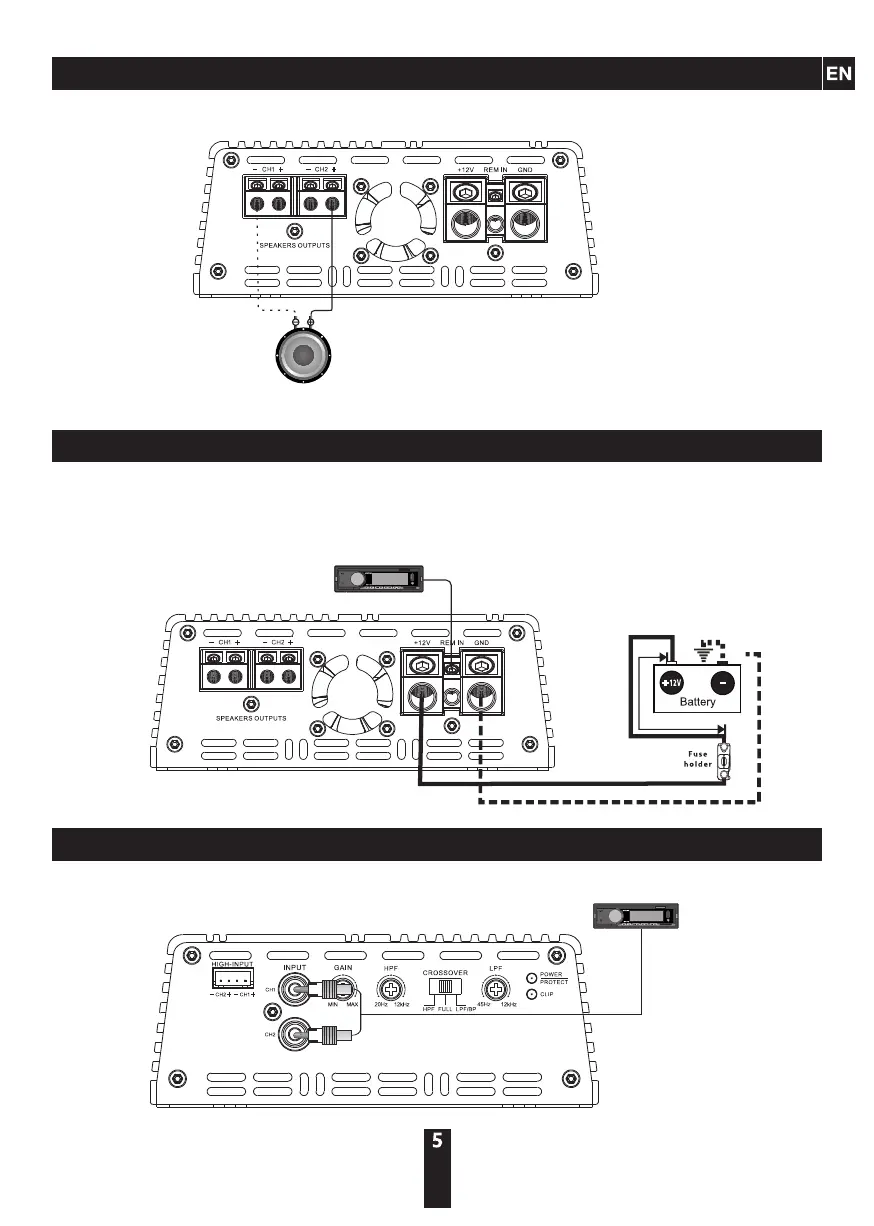

Standard wiring diagram of two-channel ampliﬁer to one subwoofer

Standard wiring diagram of two-channel ampliﬁer to battery

Standard wiring diagram of two-channel ampliﬁer to Head Unit

Step 1. Connect the speaker cable from (+) terminal of the ampliﬁer to (+) terminal of the subwoofer.

Step 2. Connect the speaker cable from (-) terminal of the ampliﬁer to (-) terminal of the subwoofer.

Step 1. Connect one end of the power cable from (+) terminal of the battery and the second end to the ampliﬁer terminal

marked with +12V. Do not forget to protect positive power cable with appropriate fuse.

Step 2. Connect one end of the power cable from (-) terminal of the battery and the second end of the grounding cable

to the terminals marked with GND.

Step 3. Connect one end of the cable to the Remote output terminal at the HU and the second end to the ampliﬁer terminal

marked with REM IN.

Step 1. Connect one end of the RCA cable to the RCA output terminals at the HU and the second end to the ampliﬁer

RCA inputs terminals marked with INPUT.

Caution!!! The minimum permissible connection load impedance for bridged connection is 2 Ohm.

For models Atom 500.2 Pro, Atom 700.2 Pro, Atom 900.2 the operating voltage is 9-15 V.

min. 2 Ohm

not more than 40 cm
