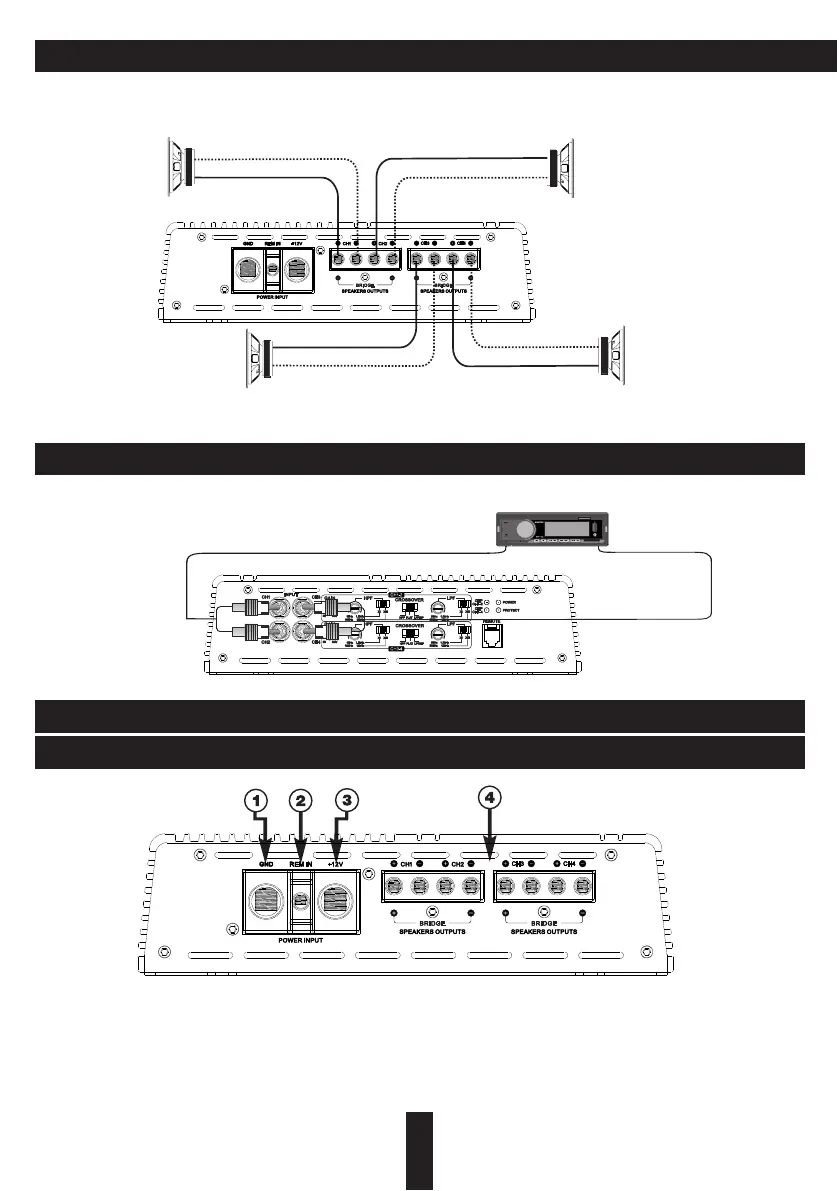

Standard wiring diagram of four-channel amplifier to four speakers

Standard wiring diagram of four-channel amplifier to head unit

Step 1. Connect the speaker cable from (+) terminal of the amplifier to (+) terminal of the speaker.

Step 2. Connect the speaker cable from (-) terminal of the amplifier to (-) terminal of the speaker.

Step 3. Repeat the installation sequence for each speaker step 1 and step 2.

Caution!!! The minimum permissible connection load impedance at single channel is 1 ohm.

For models ASA-550.4 and ASA-750.4 the operating voltage is 9-16V.

Step 1. Connect one end of the RCA cable to the RCA output terminals at the HU and the second end to the amplifier

RCA inputs terminals marked with INPUT.

1. GND – grounding supply terminal «-»

2. REM IN – connector of remote activation of the amplifier

3. +12V – power supply terminal (+12V)

4. SPEAKERS OUTPUTS – speakers terminal connections

Application of connectors and controls

ASA-550.4, ASA-750.4

1-8 Ohm
