FMX MONITOR Code 420120314 REV. 1.2

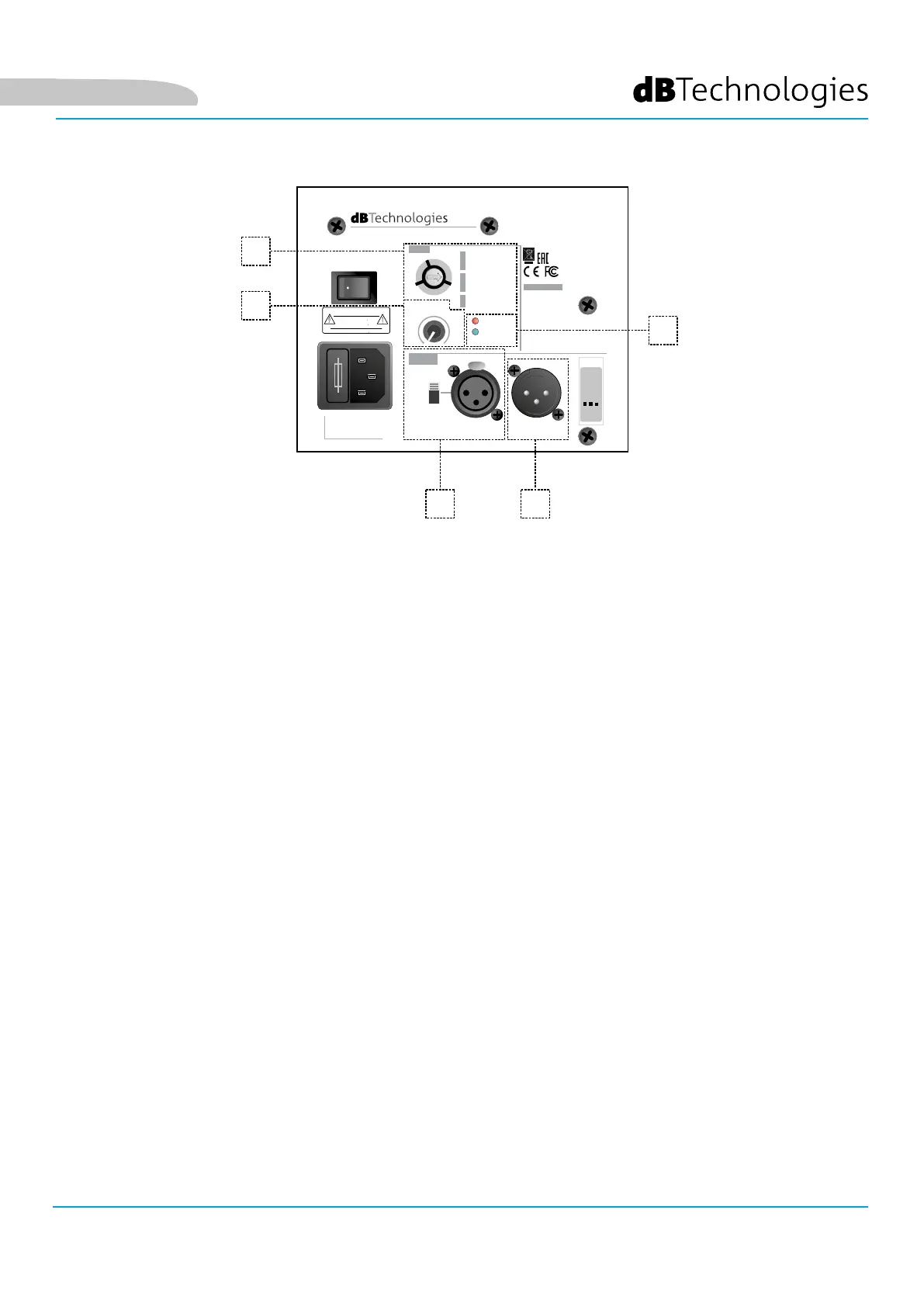

INPUT, OUTPUT AND CONTROL SECTION

1. AUDIO INPUT ("Balanced audio Input") with Mic/Line input selector.

Input compatible with balanced XLR cables. Used for the input connection of the audio signal coming from the

mixer (selector set to "Line") or from a microphone (selector set to "Mic").

4. INPUT SENSITIVITY

It allows adjusting the input sensitivity.

Before starting monitor and system conguration, set at 0 dB.

5. STATUS LEDs ("Status")

LEDs relating to module operation.

Limiter: lights up in case of activation, and possibly provides a warning signal - to be checked - with cyclic ashing.

ON/Signal: it lights up discontinuously/continuously signalling the presence of an input signal.

English

2. MAIN PRESET

Rotary switches to set the presets based on application and context of use.

3. AUDIO OUTPUT (“Output/Link”)

Connector compatible with balanced cables with XLR connectors. It is used for the output connection, both

directly and with the link to another monitor (Link).
