8
Installation DATEQ SPL6 manual
UK

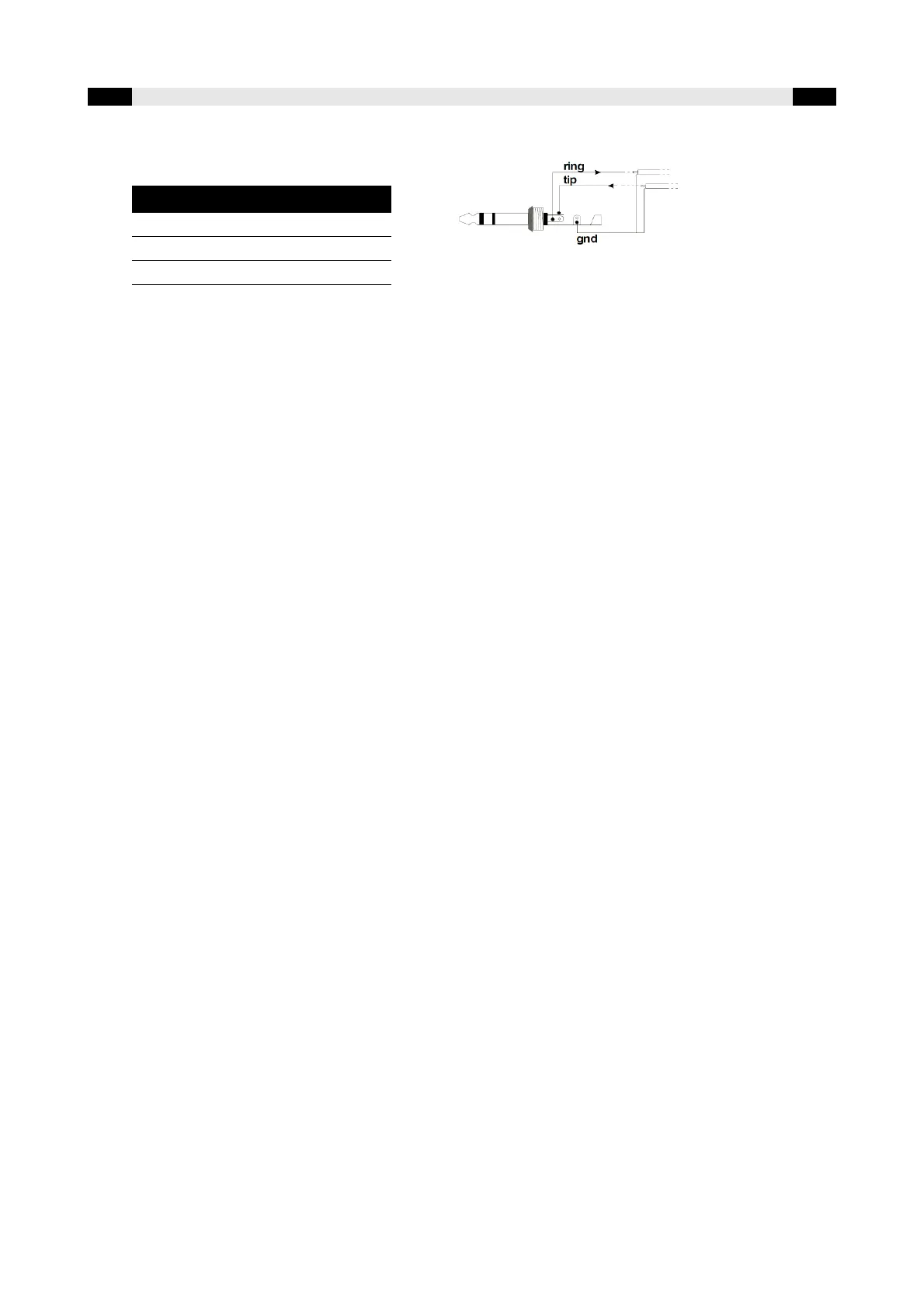

External display;
Jack 3-pens female
Pin Function Description
SL Ground Data ground
Tip Data TX Data send
Ring Data RX Data receive
Table 7: External display connections
Microphone input
Connect the supplied measuring microphone here. The wiring of the microphone can be
lengthened with standard microphone cable. Pay attention to the polarity of the wiring. If
the microphone is wrongly connected it won't work. The limiter will give an error message,
and the volume will be extremely reduced.
The microphone should be installed so that it 'hears' both sound from the speakers as well
as the sound from the crowd in the room. The microphone can be placed closer to the
speakers when the maximum allowed level is very low. This reduces the effects of
background noises.
Audio inputs
Balanced audio inputs. Pin 1 and 3 of the XLR connector should be linked together when
the mixer only has unbalanced outputs. The mixers' signal can be connected to pin 2, and
the ground to pin 1.
Audio outputs
Connect the power amplifiers here. Connect pin 2 (signal) and pin 1 (ground) when the
power amplifier does not have balanced inputs.
