EN
SPL2(TS) and SPL3(TS) user manual Installation
7

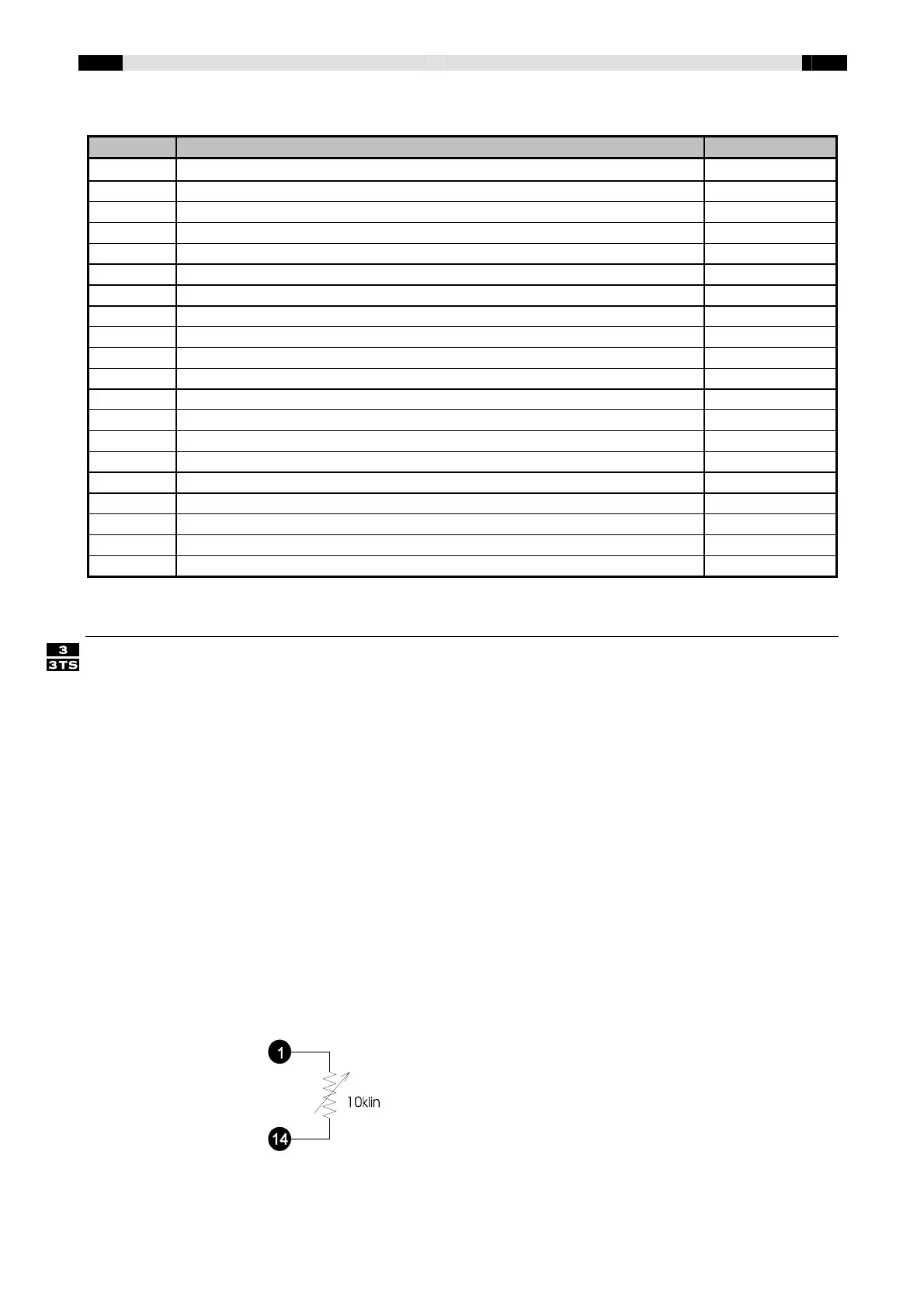

Signalling Connector (25-SUBD female)
Pin Function Type
1
external attenuation input (variable resistor 10 kΩ linear)
In
2 reduction Out
3 overload Out
4 warning (SPL3 and SPL3TS only) Out
5 live mode OK (SPL3 and SPL3TS only) Out
6 Sanction active In
9 mike in + (SPL3 and SPL3TS only) In
21 mike in - (SPL3 and SPL3TS only) In
10 audio in left + In
22 audio in left - In
11 audio in right + In
23 audio in right - In
12 audio out left + Out
24 audio out left - Out
13 audio out right + Out
25 audio out right - Out
18 TXD
19 RXD
6-8 gnd
14-17, 20
gnd
Connectors
MIC IN Jack connector for the measuring microphone, supplied with the SPL3 and
SPL3TS. The limiter does not function without a connected microphone,
except when the microphone is bypassed. The microphone cable can be
extended, maximum is 100 meters (300 feet), but be aware of the polarity of
the symmetrical cable. Mount the microphone to the wall or ceiling. Try to
choose the position of the microphone in such a way, that the microphone
picks up a good quality audio-signal. Try to prevent resonance for certain
frequencies, or feeding the microphone with a filtered sound. Experience
learns that it is advisable to try to position the microphone not too close to the
crowd, so the balance between "human noise" and "electronic noise" tends
to tip the scale in favour of "electronic noise". Sometimes authorities dictate
the location where the measuring microphone should be mounted.
AUDIO IN L/R Balanced audio inputs left and right.
AUDIO OUT L/R Balanced audio outputs left and right.
EXTERNAL
ATTENUATION
INPUT
External volume control is possible by connecting a 10kΩ
variable resistor.
This way it is possible to control the volume from another place than where all
the equipment is situated, for instance behind the bar.
REDUCTION Connection for LED's or solid-state-relays, for external signalling of the
REDUCTION situation (20 V DC / 10 mA).
