INSTALLATION & SERVICE MANUAL FOR PROFESSIONALS
Installation: Mounting the device
Mounting the device
Follow these steps when mounting the HCV unit on the wall.

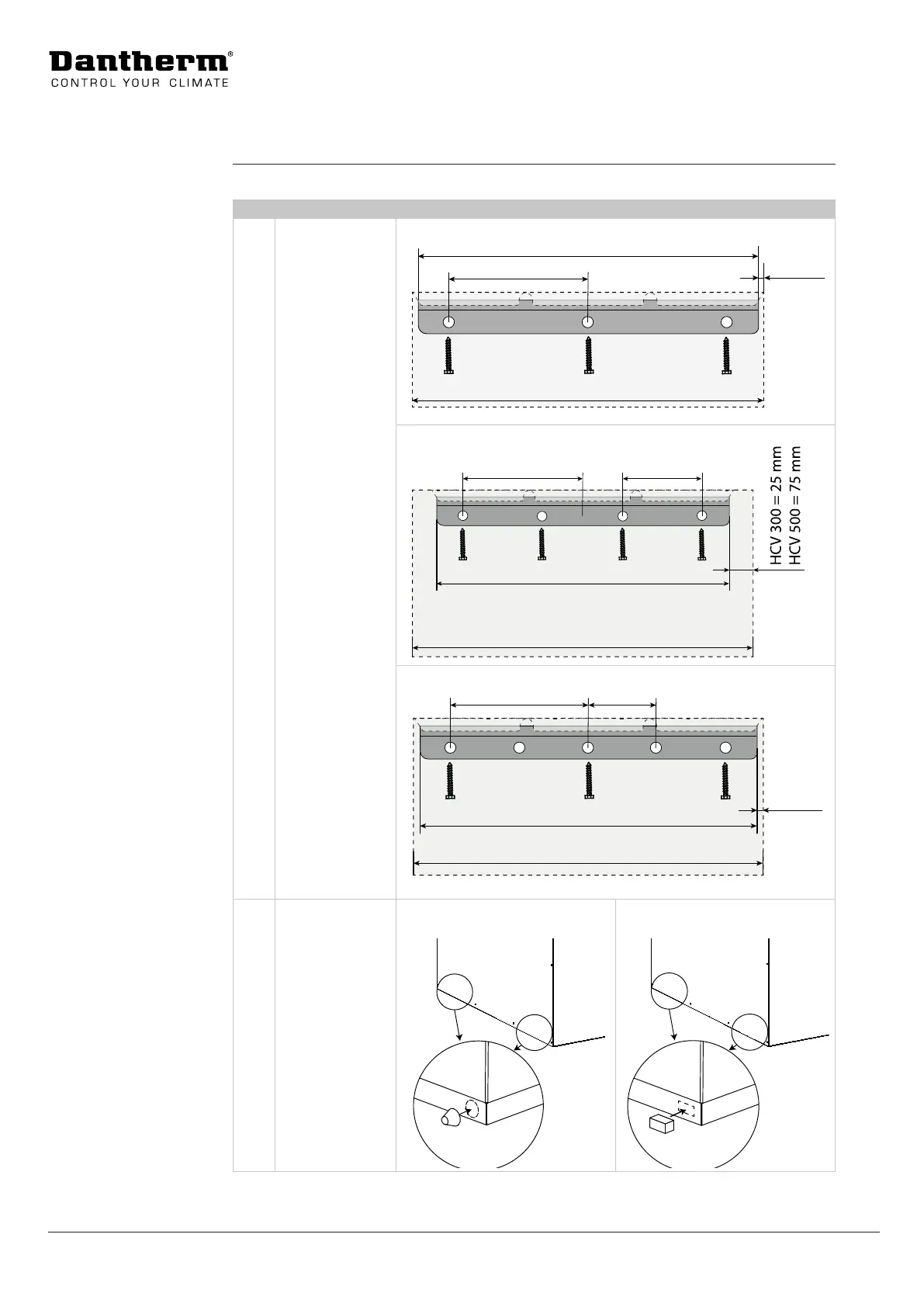

Step Action Illustration
1 Fix the wall
bracket using
these measure-
ments.
Make sure that
you use appro-
priate screws
and rawl plugs.
HCV 400/460
220 mm
12 mm
540 mm
516 mm
220 mm
12 mm
540 mm
516 mm
HCV 300/500
210 mm 140 mm
HCV 300 = 600 mm
HCV 500 = 700 mm
550 mm
HCV 700
330 mm 165 mm
2 mm
700 mm
696 mm
220 mm
12 mm
540 mm
516 mm
2 Mount the two
spacers at the
bottom and rear
of the unit.
HCV 400/460 HCV 300/500/700
Wall mounting
